Identification of Parts
Identification of Parts
1 Record mode indicator
2 Current folder
3 Memory remaining indicator
(E/F bar)
4 Record indicator
5 Remaining recording time
6 Level meter indicator
7 Microphone sensitivity indicator
8 Current file number
9 Total number of files in the folder
Author ID indicator
Battery indicator
VCVA
VCVA (Variable Control Voice
Actuator) indicator
Display Status Indicators
0 Recording elapsed time
! Playback position bar indicator
@ Play indicator
# Total recording time of the
selected file
$ Button guide display
% Current Playback time
^ Main Button Guide
You can display the Main Button Guide by
using “ Main Button Guide” (P.58) of the
customize functions of DSS Player.
Pending indicator
Card Lock indicator
Encryption indicator
Priority indicator
Erase Lock indicator

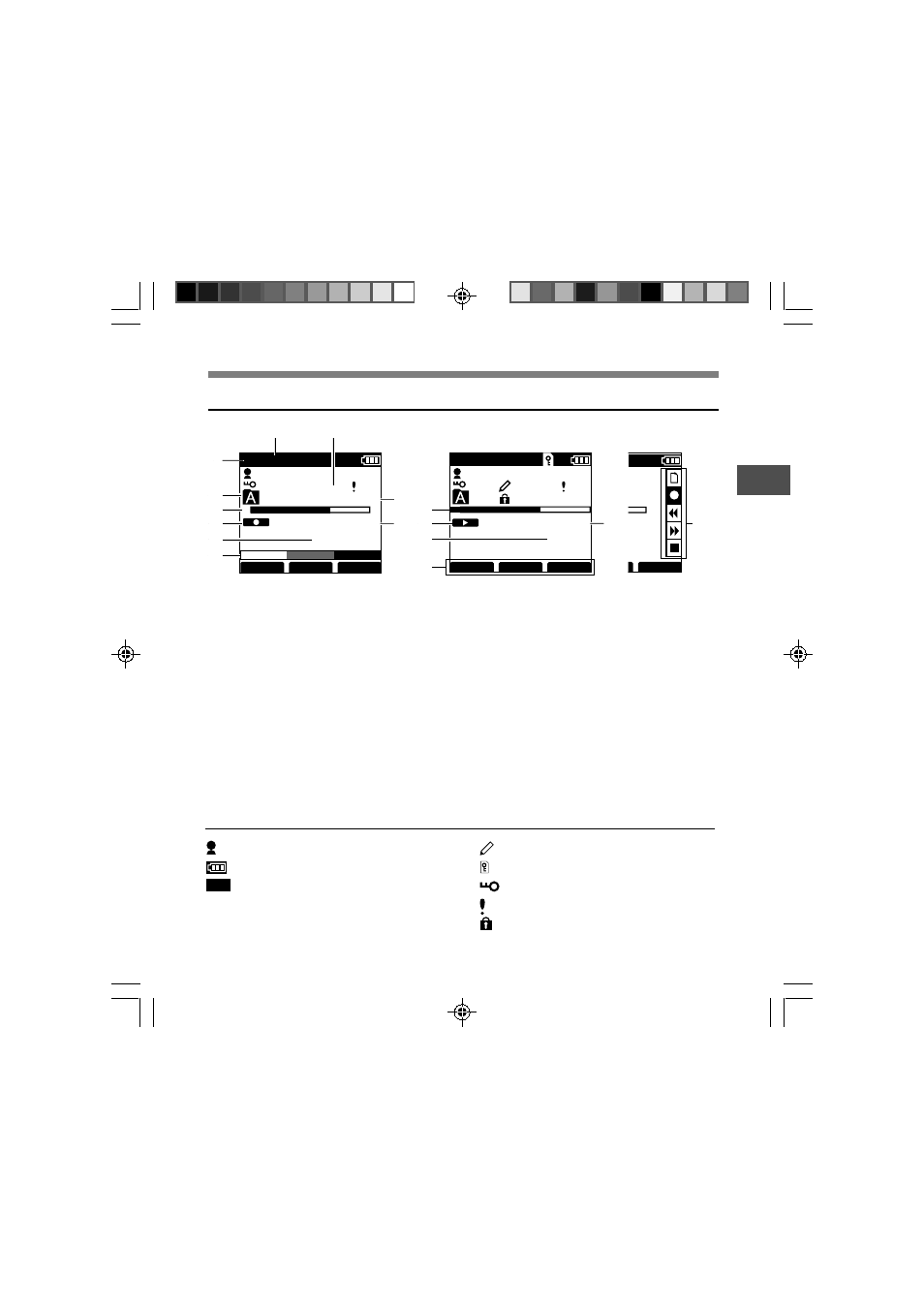

Display in the recording
mode
Display in the playback
mode
