4. Getting started

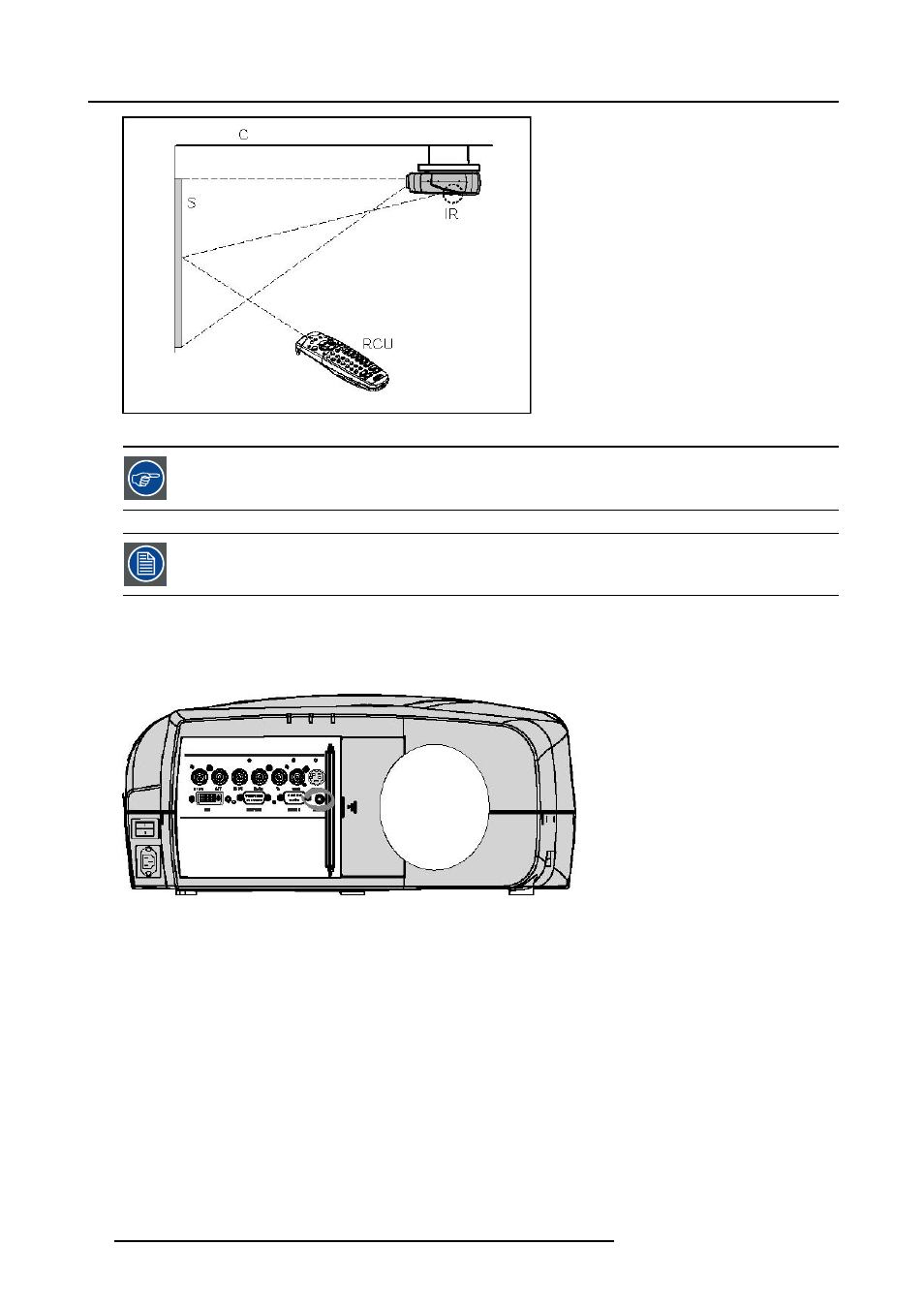

Image 4-11
When using the remote control, make sure you are within the effective operating distance.
The operating distance may be up to 15 m (50ft).
The remote control unit will not function properly if strong light strikes the sensor window or if there are
obstacles between the remote control and the IR sensor.
How to connect ?
1. Plug one end of the remote cable in the connector on the bottom of the RCU.
2. Plug the other end in the connector in the front panel of the projector labelled RC. (image 4-12)
Image 4-12
Specifications of the RC input
U
in
= 9V
I
max
= 80 mA
Internal IR receivers can be disabled:
•
mono jack : on plug in of the jack
•
stereo jack : on plug in or using an external switch bringing the right channel (B) to ground level.
