3. Connections
3. CONNECTIONS
Overview
• Power connection
• Input source connection
3.1 Power connection
AC power (mains) cord connection
Use the supplied power cord to connect your projector to the wall outlet.
Plug the female power connector into the male connector at the front of the projector.
The power input is auto-ranging from 90 to 240 VAC.
I
0

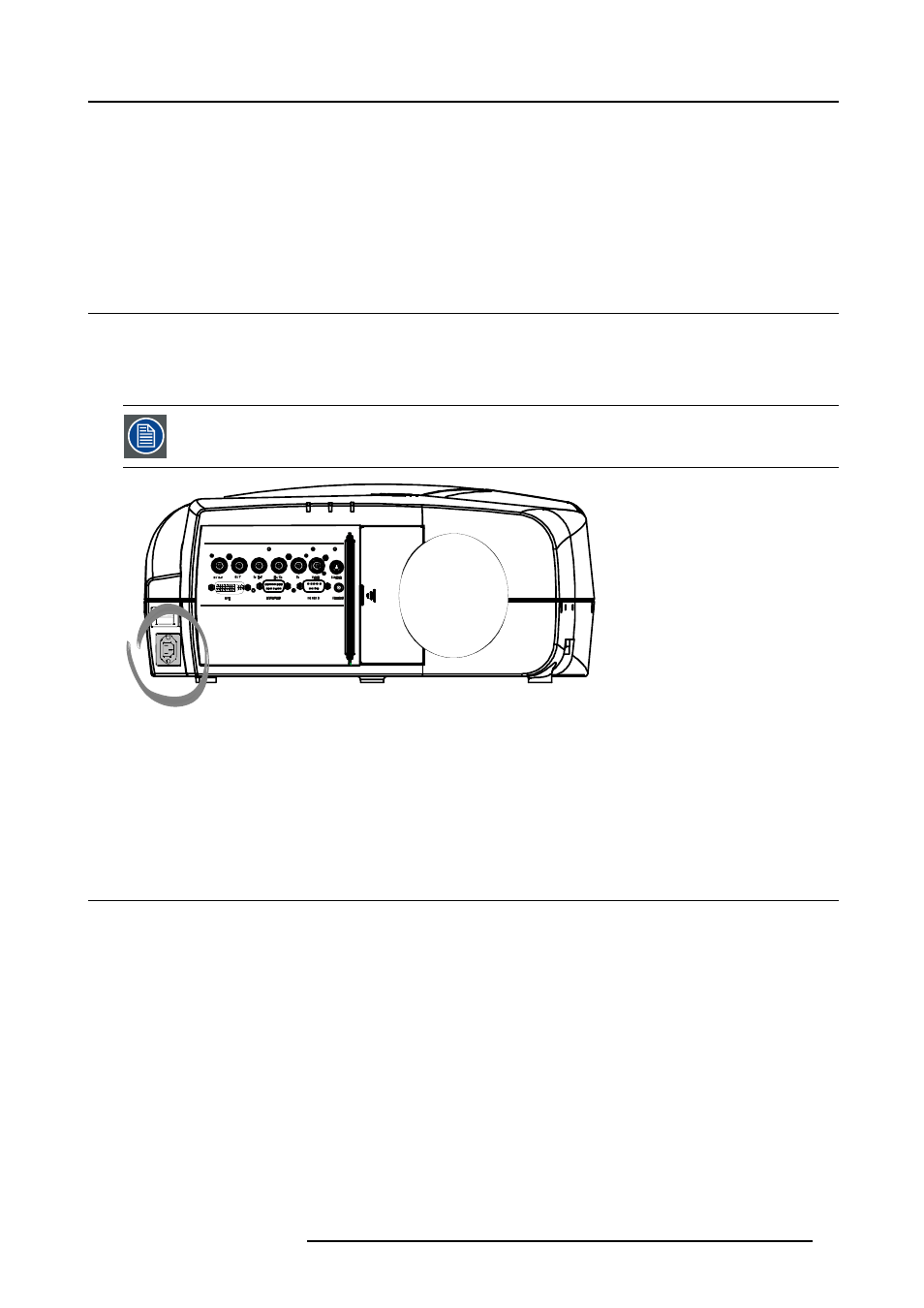

Image 3-1
Fuses
For continued protection against fire hazard :
• refer replacement to qualified service personnel
• ask to replace with the same type of fuse.
3.2 Input source connection
Overview
• Input section
• Input facilities
• 5-Cable input
• Composite Video Input
• S-Video input
• Digital Visual Interface (DVI) input
• Computer input
• Communications Connections
• Extended configuration
3.2.1 Input section
Input Layers
The input section is divided in layers, each of them regrouping several inputs.
R5976491 IQ PRO G500 01/02/2007 19
