NOTES:
1. Dimensions in ( ) are in millimeters.
2. Hook rigging shackles through holes in base rail, as shown in
detail “A.” Holes in base rails are centered around the unit center
of gravity. Use wooden top skid when rigging to prevent rigging
straps from damaging unit.
3. Unit weights do not include economizer. See Table 1 for econo-
mizer weights.
CAUTION: All panels must be in place when rigging. Unit
is not designed for handling with a fork truck. Damage to unit
may result.

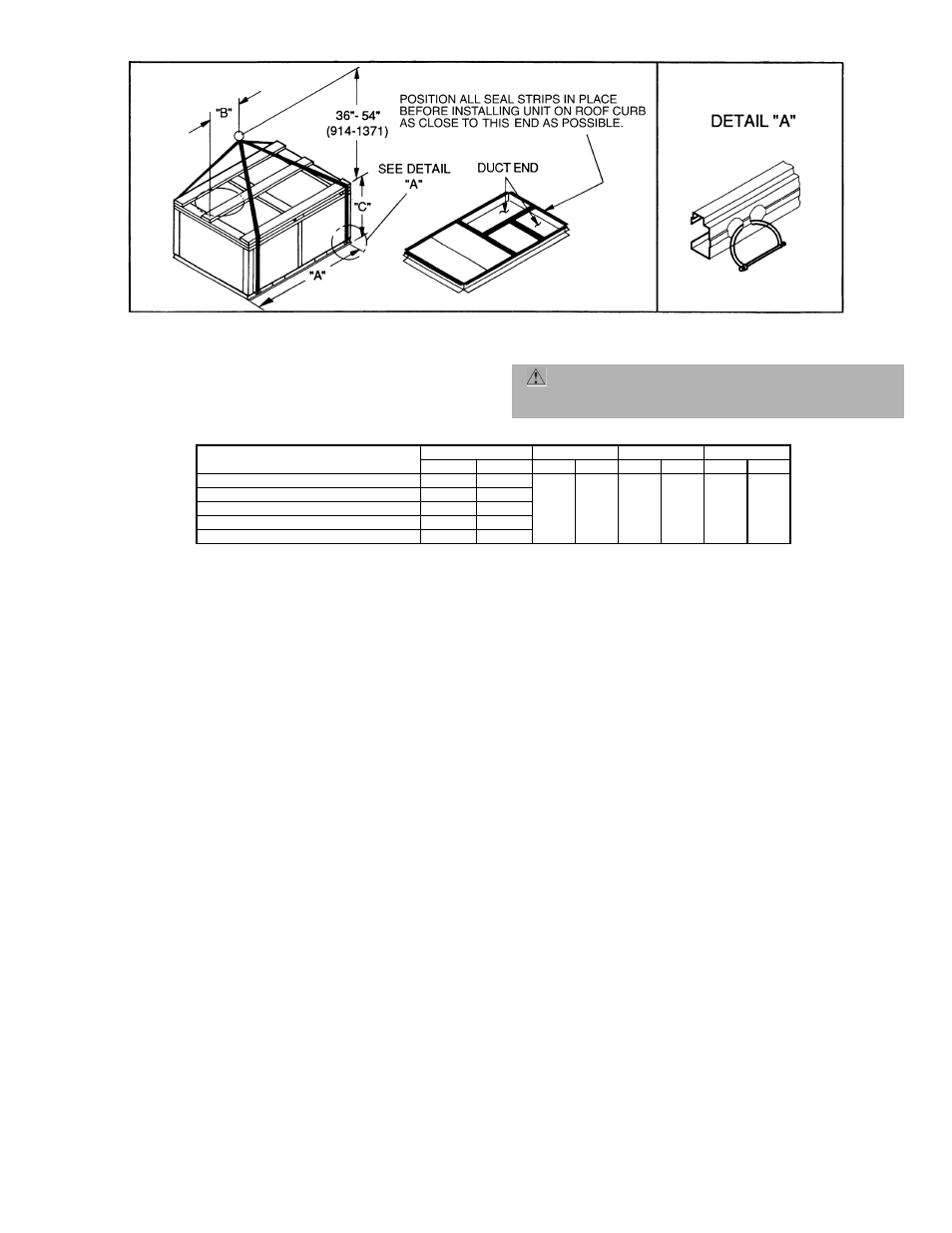

Fig. 6 — Rigging Details
580F UNIT SIZE
MAX WEIGHT “A” “B” “C”
Lb Kg in. mm in. mm in. mm
036 510 231
73.69 1872 37.50 953 33.35 845
048 520 236
060 540 245
072 615 279
073 665 302
