Warning, Three-wire connection – Alliance Laundry Systems H242I User Manual
Page 24
22
504509

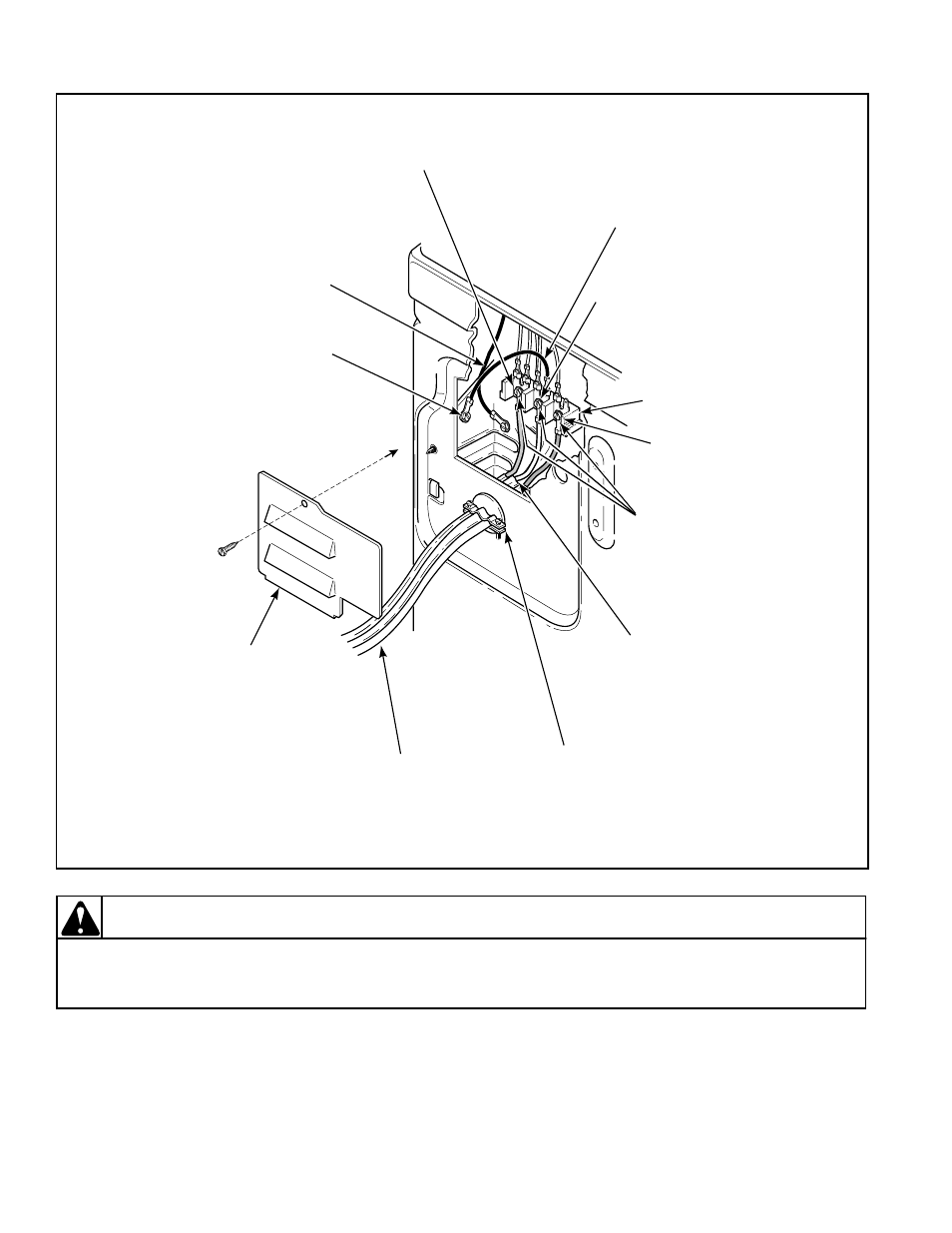

Three-Wire Connection
D435IE2B
NEUTRAL
(WHITE
OR CENTER
WIRE)
GROUND
TO NEUTRAL
WIRE
TERMINAL
BLOCK
POWER CORD
OR DIRECT WIRING -
NOT SUPPLIED
WITH DRYER
(Three-wire)
STRAIN
RELIEF
(NOT SUPPLIED
WITH DRYER)
NEUTRAL
TERMINAL
ACCESS
COVER
GROUND
WIRE
“L2”
TERMINAL
“L1”
TERMINAL
TERMINAL
BRACKET
GROUND
SCREW
SLOTTED
HEX HEAD
SCREWS
(Shipped
inside
the dryer)
Dryer unit is shown with the access cover removed for illustration purposes only. To reduce the
risk of an electric shock, NEVER operate the dryer unit with the access cover removed.
