Step 3:
Connect Drain Hose to Drain Receptacle
Remove the drain hose from its shipping position on the
rear of the washer by unhooking the hose from the
retainer clamp.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/4 inch (32 cm) outside
diameter drain hose.
Standpipe Installation:
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories bag
and place around standpipe and drain hose and tighten
strap to hold hose to standpipe. This will prevent the drain
hose from dislodging from drain receptacle during use.

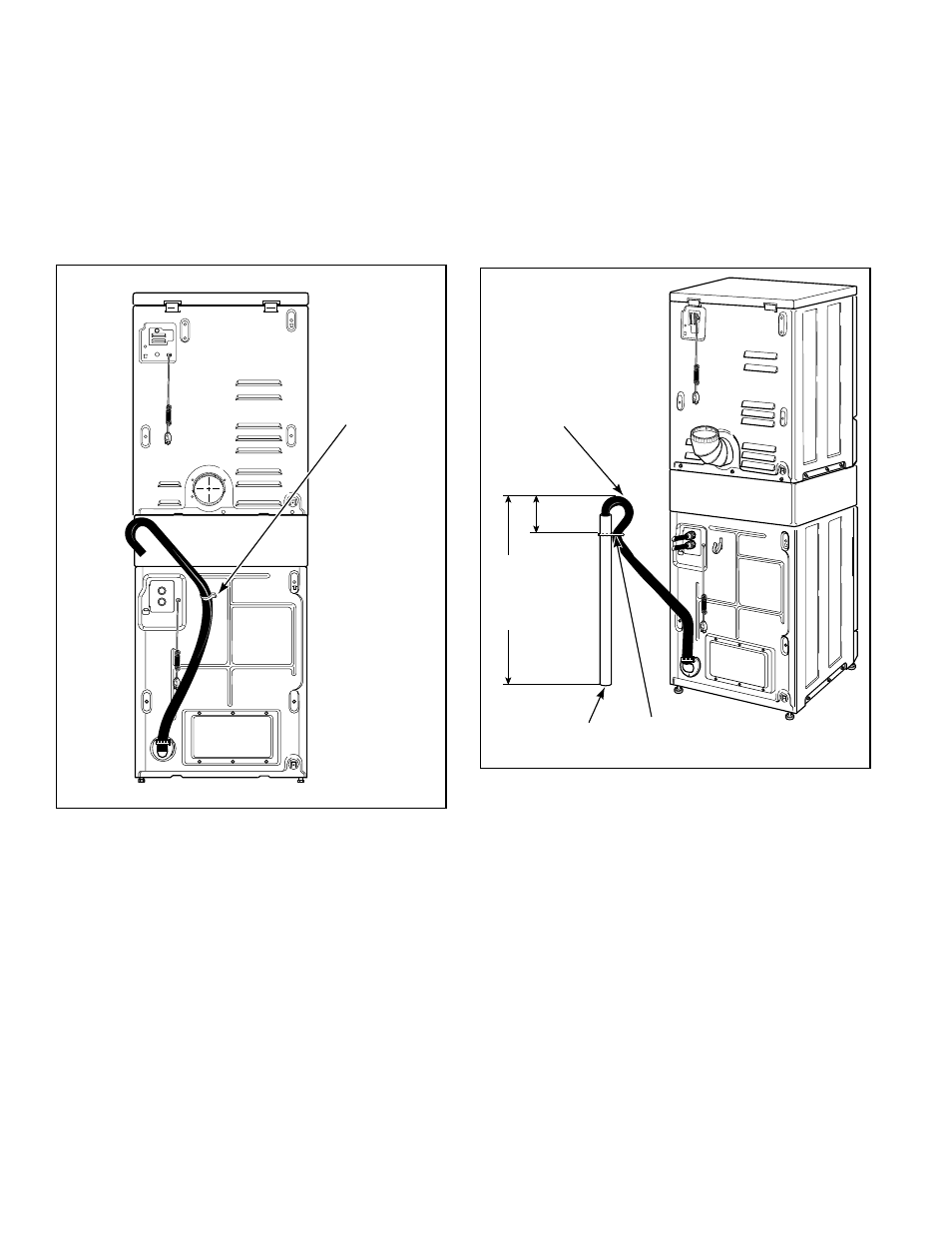

D465IE1A
RETAINER
CLAMP
H097IE1A
DRAIN
HOSE
24" to 36"
(91.44 cm
Recommended
Height)
STANDPIPE
2" (5.08 cm) or
1-1/2" (4 cm)
BEADED
TIE-DOWN
STRAP
