4
From the front of the iPBridge (see Exhibit 1.1-1):
Ready/Fault LED is lighted green indicates ready,
lighted yellow shows a faulted condition, and off
indicates not ready.
Power LED lights green to show the power is on.
Ethernet ports: a lighted yellow LED indicates
1000 Mb/sec.; if it is off, it means 100 Mb/sec.
speed. A separate green LED indicates activity if
it is lit.
Fibre Channel ports: a bicolor LED indicates FC
speed. If it is off, speed is 1-Gb; if it is green, 2-
Gb, and yellow indicates 4-Gb FC. A separate
green LED indicates activity if it is lit, no activity
if it is off.

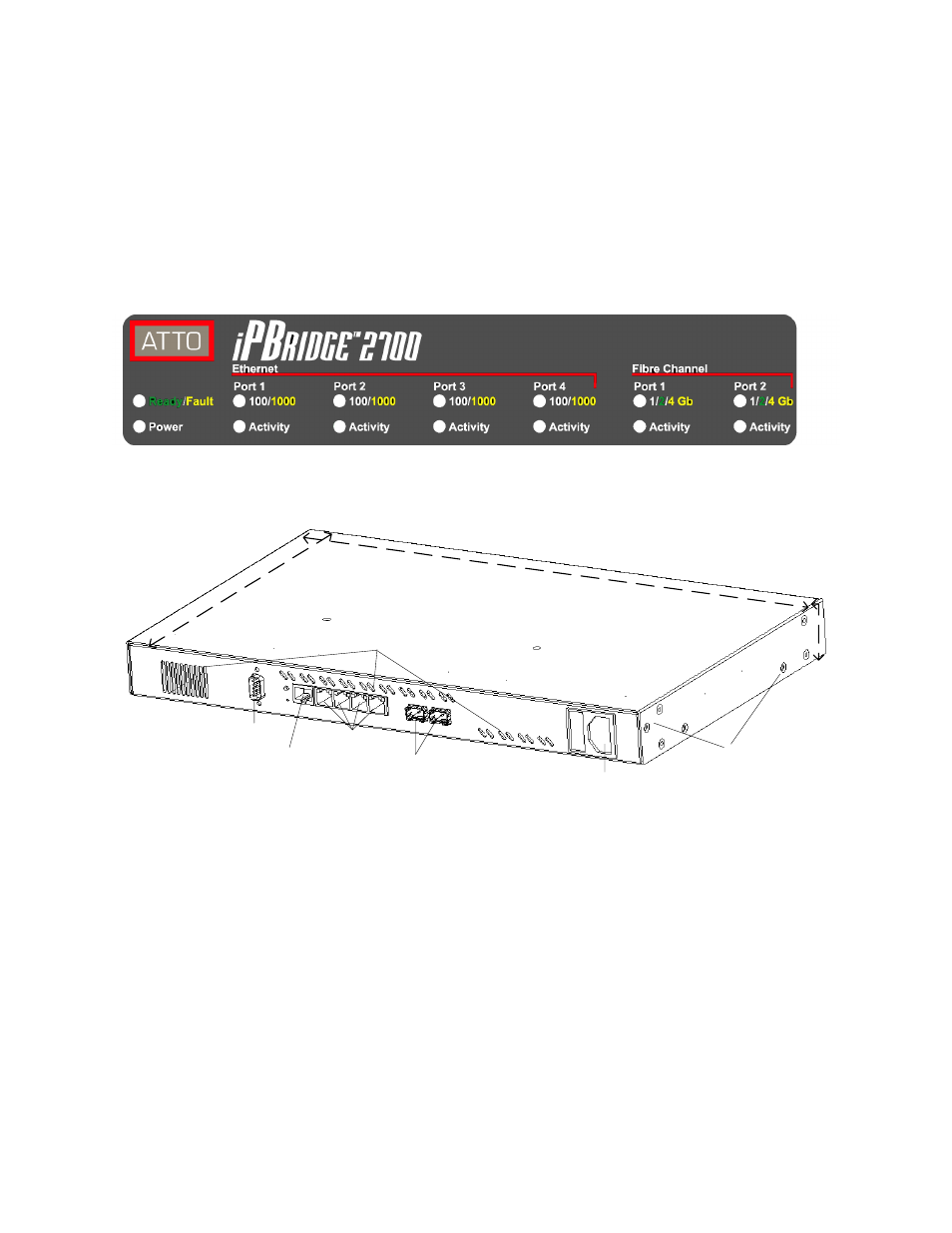

Exhibit 1.1-1 iPBridge 2700R/D front label.
Exhibit 1.1-2 Overview of iPBridge 2700R/D from the back (connector) side.
air vents
RS-232 (serial) port
GbE ports
Fibre Channel ports
power connector
for bracket
assembly
Width
17"
Le
ng
th
8.7
"
Height
1.7"
10/100 Ethernet port
Front label side
Back (connector) side
