6 7
220-240 V 110 V
.........................1800 W .......................... 1800 W
...............................8 A ............................. 15,5 A
.........................4400 min -1 ...................... 4000 min -1
...................305 x 30 mm ...................305 x 30 mm
............................2,4 mm ........................... 2,4 mm
..................111 / 342 mm ..................111 / 342 mm
..................111 / 241 mm ..................111 / 241 mm
....................63 / 241 mm ................... 63 / 241 mm
....................41 / 241 mm ................... 41 / 241 mm
....................63 / 241 mm ................... 63 / 241 mm
....................41 / 241 mm ................... 41 / 241 mm
....................166 / 53 mm ................... 166 / 53 mm
....................166 / 10 mm ................... 166 / 10 mm
.............................31 kg .............................. 31 kg
.............................95 dB (A) ........................ 95 dB (A)
...........................108 dB (A) ...................... 108 dB (A)
.............................. 4 m/s 2 ............................ 5 m/s 2
........................... 1,5 m/s 2 ......................... 1,5 m/s 2
Keep the floor area free of loose material e.g. chips and
cut-offs.
Only use saw blades which have been properly sharpened. It is
essential to adhere to the maximum speed specified on the
saw blade.
Do not use any flanges other than those supplied or indicated
in the instruction manual to secure the saw blade.
Refrain from removing any cut-offs or other parts of the
workpiece from the cutting area whilst the machine is running
and the saw head is not in the rest position.
Ensure that the machine is always stable and secure (e.g. fixed
to a bench)
Long workpieces must be adequately supported.
Do not use cracked or distorted saw blades.
Before using the tool please read the instructions. If possible
have the tool demonstrated.
The dust produced when using this tool may be harmful to
health. Use a dust absorption system and wear a suitable dust
protection mask. Remove deposited dust thoroughly, e.g. with a
vacuum cleaner.
Stock having a round or irregular cross section (such as
firewood) must not be cut, as it can not be securely held during
cutting. When sawing thin stock layed on edge, a suitable
auxilary fence must be used for firm support.
SPECIFIED CONDITIONS OF USE
The mitre saw can be used for sawing solid wood, bonded
wood, glued veneer, materials similar to wood, and plastics.
Do not use this product in any other way as stated for normal
use.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product is in
conformity with the following standards or standardized
documents.
EN 61029-1:2009 + A11:2010;
EN 61029-2-9:2009
EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:1997 + A1:2001 + A2:2008
EN 61000-3-2:2006 + A1:2009 + A2:2009
EN 61000-3-3:2008
in accordance with the regulations
2011/65/EU (RoHs)
2006/42/EC
2006/95/EC
2004/108/EC
Winnenden, 2012-09-06
Rainer Kumpf
Director Product Development
Authorized to compile the technical file
MAINS CONNECTION
Connect only to single-phase a.c. current and only to the
system voltage indicated on the rating plate. It is also possible
to connect to sockets without an earthing contact as the design
conforms to safety class II.
MAINTENANCE
The ventilation slots of the machine must be kept clear at all
times.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been
described, please contact one of our AEG service agents (see
our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please
state the Article No. as well as the machine type printed on the
label and order the drawing at your local service agents or
directly at: AEG Electric Tools, Max-Eyth-Straße 10,
D-71364 Winnenden, Germany.

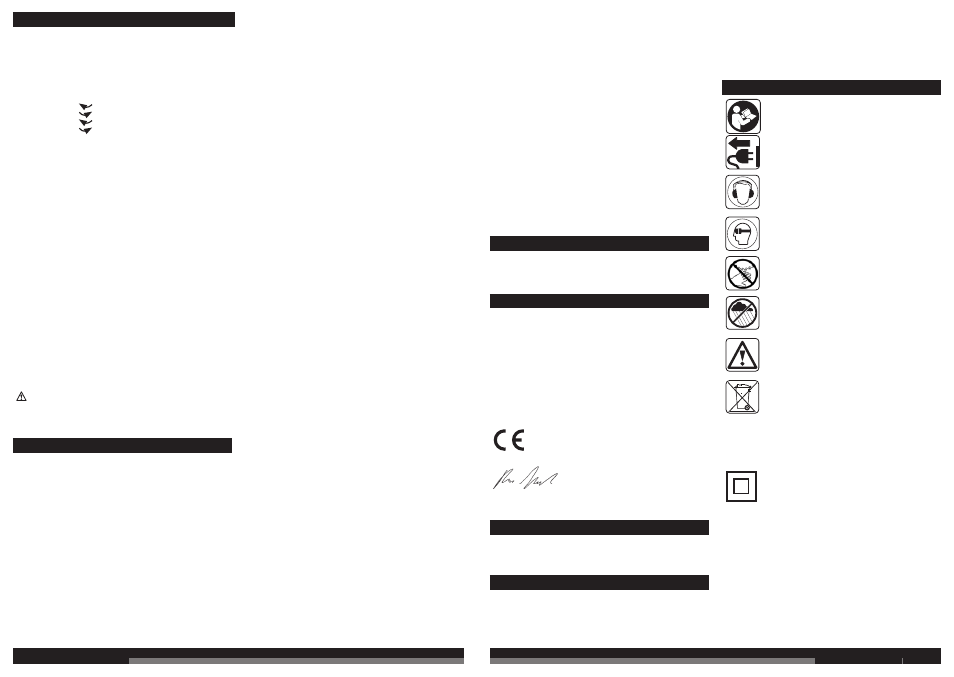

SYMBOLS
Please read the instructions carefully before
starting the machine.
Always disconnect the plug from the socket
before carrying out any work on the machine.
Wear ear protectors!
Always wear goggles when using the
machine.
Always keep hands away from the path of the
saw blade.
Never expose tool to rain.
Danger
Do not dispose of electric tools together with
household waste material! In observance of
European Directive 2002/96/EC on waste
electrical and electronic equipment and its
implementation in accordance with national
law, electric tools that have reached the end
of their life must be collected separately and
returned to an environmentally compatible
recycling facility.
Class II construction, tool in which protection
against electric shock does not rely on basic
insulation only, but in which additional safety
precautions, such as double insulation or
reinforced insulation, are provided.
ENGLISH
TECHNICAL DATA Mitresaw
Rated input ..................................................................................
Amps ...........................................................................................
No-load speed .............................................................................
Saw blade dia. x hole dia.............................................................
Saw blade thickness ....................................................................
Cutting width
horizontal / vertical
90° 90° ........................................................................
45° 90° ........................................................................
90° 45° ................................................................
90° 45° ................................................................
45° 45° ................................................................
45° 45° ................................................................
Max. height at 90° / 90° ...............................................................
Max. height at 45° / 90° ...............................................................
Weight according EPTA-Procedure 01/2003 ...............................
Noise Information
Measured values determined according to EN 61 029.
Typically, the A-weighted noise levels of the tool are:
Sound pressure level (K = 3 dB(A)) ...........................................
Sound power level (K = 3 dB(A)) ...............................................
Wear ear protectors!
Vibration Information
Total vibration values (vector sum in the three axes) determined
according to EN 61 029.
Vibration emission value a
h
: .....................................................
Uncertainty K = ........................................................................
WARNING! Read all safety warnings and all
instructions, including those given in the accompanying
brochure. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
SAFETY INSTRUCTIONS
Wear ear protectors. Exposure to noise can cause hearing
loss.
Hold power tool by insulated gripping surfaces when
performing an operation where the cutting tool may
contact hidden wiring or its own cord. Contact with a „live“
wire will also make exposed metal parts of the power tool „live“
and shock the operator.
Appliances used at many different locations including open air
must be connected via a current surge preventing switch.
Always wear goggles when using the machine. It is
recommended to wear gloves, sturdy non slipping shoes and
apron.
Always disconnect the plug from the socket before carrying out
any work on the machine.
Only plug-in when machine is switched off.
Keep mains lead clear from working range of the machine.
Always lead the cable away behind you.
Sawdust and splinters must not be removed while the machine
is running.
Never reach into the danger area of the plane when it is
running.
Before use check machine, cable, and plug for any damages or
material fatigue. Repairs should only be carried out by
authorised Service Agents.
Always use the protective shields on the machine.
Do not clamp the protective swing guard.
Do not use saw blades which are damaged or deformed
Replace the table insert when worn
Do not use saw blades not corresponding to the key data given
in these instructions for use.
The protective cover should only open when the machine is
lowered to the workpiece.
Do not use saw blades made of high-speed steel.
Any faults with the machine, including any related to the
safeguard or the saw blades, must be reported to the persons
in charge of safety as soon as the faults are discovered.
It is necessary to select a saw blade which is suitable for the
material being cut.
Never use the mitre saw to cut materials other than those
specified in the instruction manual.
The handle lock must always be engaged when transporting
the mitre saw.
Only use the saw with guards in good working order and
properly maintained, and in position.
ENGLISH
WARNING
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN
61 029 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different
applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the
exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is
running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the
accessories, keep the hands warm, organisation of work patterns.
