16

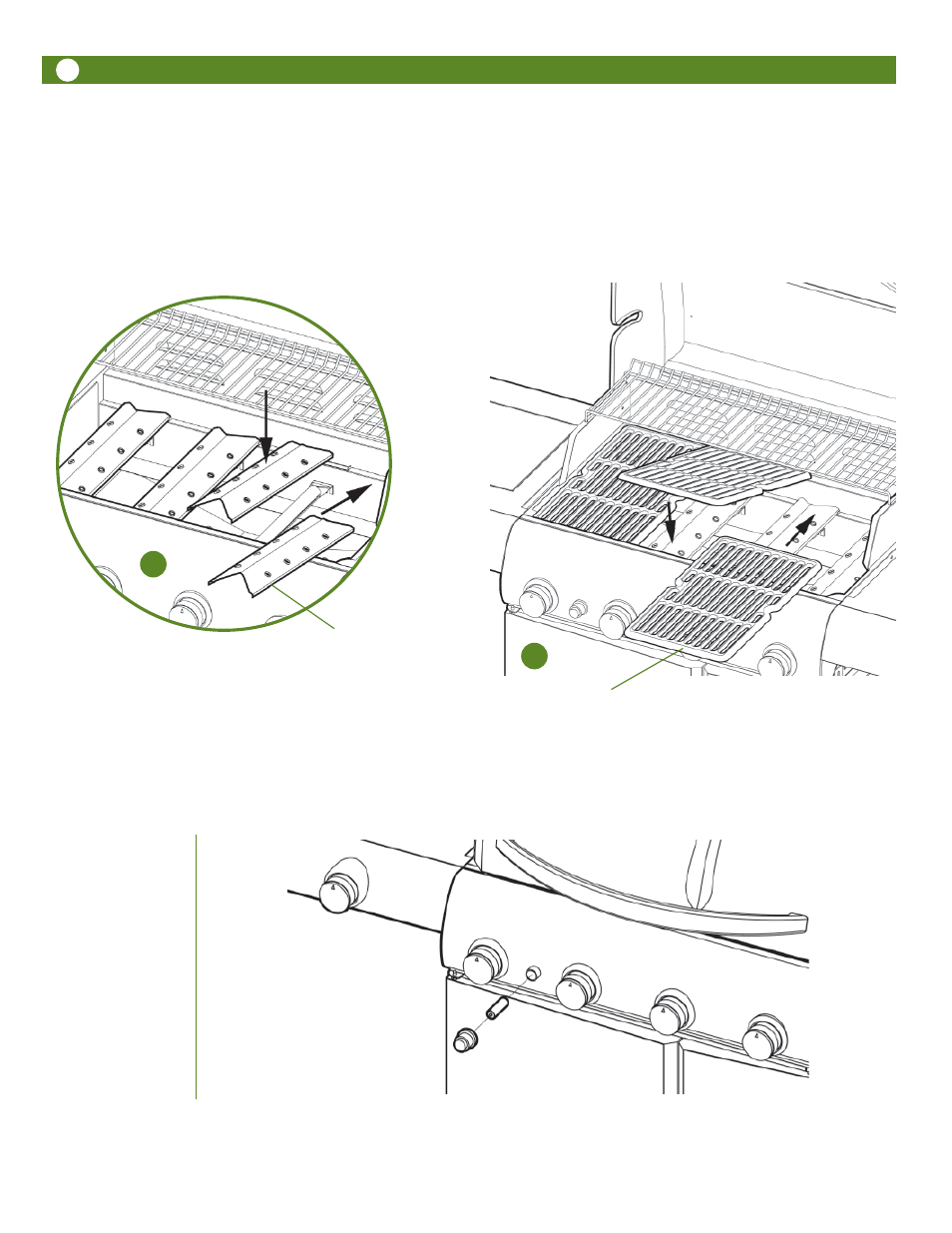

Step 19
Flame Diffuser/Cooking Grid Assembly
A. Lay a Flame Diffuser from back to front over each Burner on the lower Body ridges. Place each Flame Diffuser in the
individual guides to keep from sliding.
B. Place the Cooking Grids over the Burner Diffusers on the upper Body ridges.
flame diffuser
cooking grid
Step 20
Battery in Igniter Installation
Unscrew Igniter Cover and insert AA Battery with the negative “-“ end going in first. Replace the cover and tighten
securely.
Battery
AA 1.5v Alkaline
1 pc
This Completes the Grill Assembly.
B
A
+
-
