10
B. Drawer Positioning
Slide Drawer Assembly over the Drawer Tracks to position the Drawer.
Step 9 Model 6805 & 6804 with drawer
A. Drawer Assembly
Assemble Handle to Drawer Front with two 5/32 x .22” Bolts. Note: 1 extra screw provided.
Attach Drawer Front to Drawer Body with 5/32 x .31” Bolts into threaded holes in inside of Drawer Front.
B
A

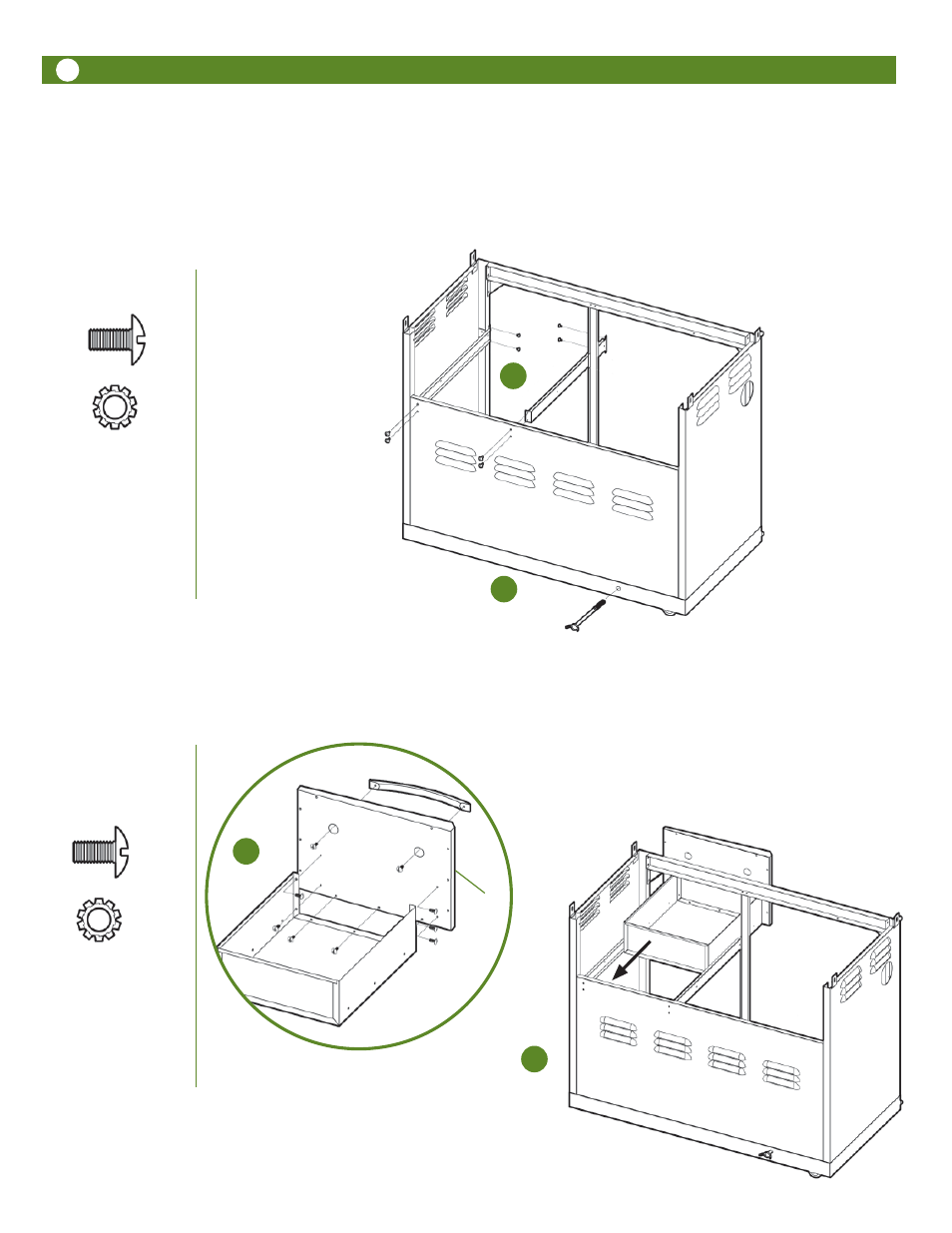

Step 8 Model 6805 & 6804 with drawer
Drawer Track Assembly (and Cylinder Retaining Bolt Installation for Model 6805)
A. Attach one Drawer Track to Back Panel and Cabinet Upright using four 5/32 x .31” Bolts. Attach other Drawer Track
to Back Panel and Right Side Panel using four 5/32 x .31” Bolts.
B. Install the Cylinder Retainer Bolt through the hole in the back of the Bottom Shelf into the nut welded underneath.
5/32 x .31” Bolt set
8 pc
drawer
front
5/32 x .31” Bolt set
Model 6804- 6 pcs
Model 6805- 7 pcs
5/32 x .22” Bolt set
2 pc
A
B
Cylinder Retainer Bolt
