11

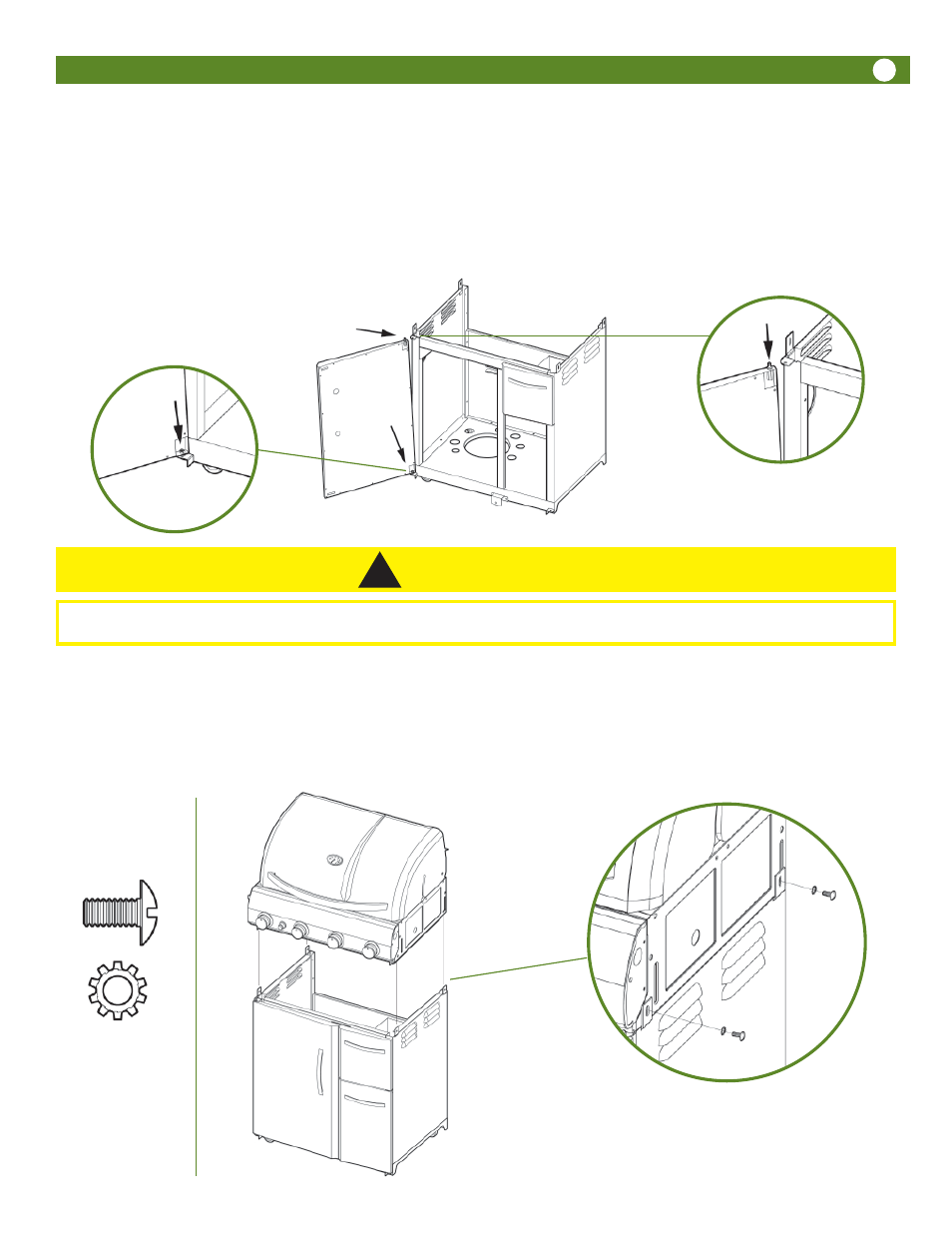

Step 10
Door Assembly
Install LEFT Door. Drop bottom door pin into Cabinet Bottom Panel hole. Swing top of door toward hole in top of Left
Side Panel. Depress spring-loaded pin with thumb while sliding pin into Left Side Panel hole until it snaps into place.
Right Door assembly is similar; Fixed pin is under drawer and inserts into hole in door and spring-loaded pin is in the
BOTTOM of small door and functions the same.
To reduce the risk of bodily injury from lifting, the following assembly steps #s 11 and 12 will require two people.
CAUTION
!
Step 11
Hood/Body To Cart Assembly
Lift the Hood/Body Assembly over the cart assembly and set it down until it rests on the inside top flanges of the cart.
Align the holes in the side of the Hood/Body with the holes in the Side Panel brackets. Insert four 1/4-20 x .50 Bolts
through the holes in cabinet flanges and into threaded inserts in firebox and tighten after all are installed.
Depress
Left Door shown,
Right Door under
drawer.
Right side
view
NOTE:
Model 6805: Carefully route gas and electrical lines
when placing hood/body assembly on cart. Be sure no
lines are pinched between hood/body assembly and cart.
1/4-20 x .50” Bolt set
4 pc
