Step 17

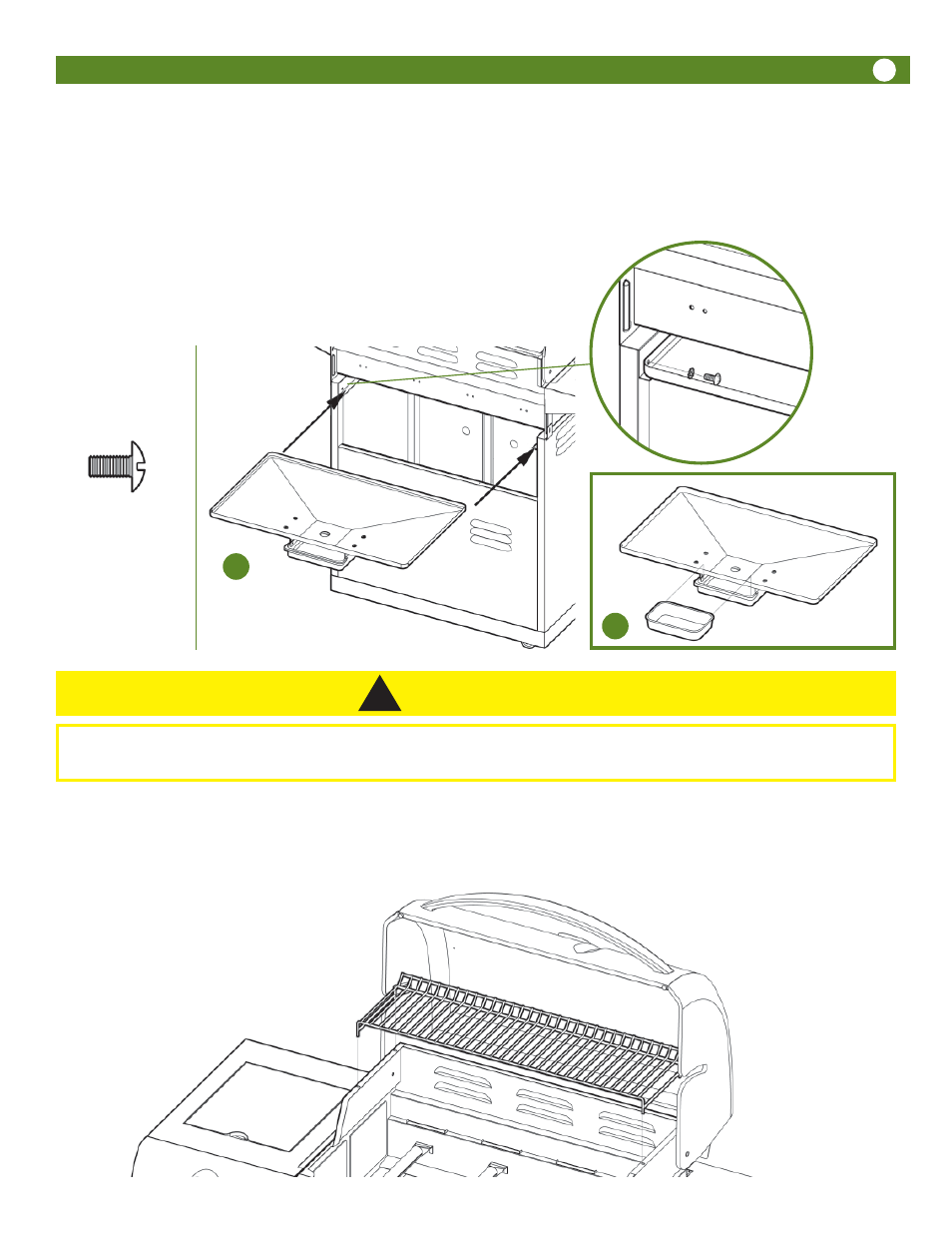

A. Bottom Body Panel Assembly
Slide the Bottom Body Panel into the guides of the Body assembly. Secure Bottom Body Panel to Body assembly with
one 5/32 x .31” Bolt on each side.
B. Foil Pan/Grease Pan Assembly
Insert the Foil Pan into the Grease Pan. Slide the Grease Pan into the guides
under the Bottom Body Panel.
5/32 x .31” Bolt
2 pc
To reduce the risk of a laceration hazard:
• Wear protective gloves when installing warming rack. Hood and Bowl edges could be sharp.
CAUTION
!
Step 18
Warming Rack Assembly
Insert Warming Rack leg ends into holes on top edge of firebox. Seat securely.
