ASSEMBLY INSTRUCTIONS

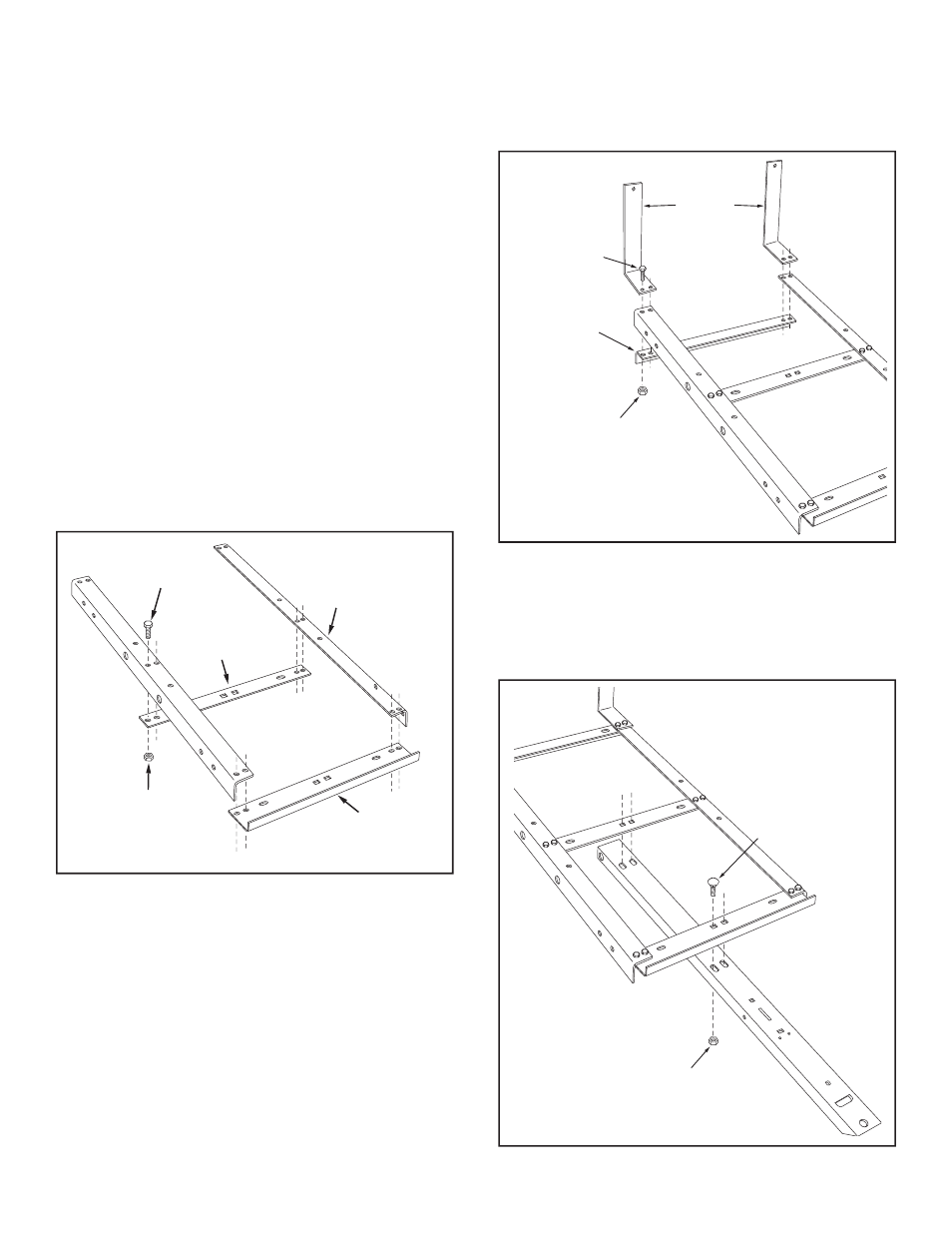

FIGURE 3
4. Assemble the tongue to the bottom of the front frame
angle and the frame strap using four 3/8" x 1" carriage
bolts and 3/8" nylock nuts as shown in fi gure 3.
Do not
tighten yet.
3. Assemble the rear frame angle to the bottom and the
two boom mount brackets to the top of the side angles
as shown in fi gure 2. Use four 5/16" x 1" hex bolts and
5/16" nylock nuts.
Do not tighten yet.
FIGURE 2
TOOLS REQUIRED FOR ASSEMBLY
(2) 7/16" Wrenches
(2) 1/2" Wrenches
(2) 9/16" Wrenches
(1) Adjustable Wrench
(1) Screwdriver
(1) Pliers
(1) Grease Gun
1. Remove all items from the carton and lay them out as
shown on pages 2 and 3.
2. Assemble the frame strap and the front frame angle to
the bottom of the two side angles as shown in fi gure 1.
Use eight 5/16" x 3/4" hex bolts and 5/16" nylock nuts.
Do not tighten yet.
FIGURE 1
3/8" x 1"
CARRIAGE
BOLT
3/8" NYLOCK NUT
5/16" x 3/4"
HEX BOLT
FRAME
STRAP
SIDE
ANGLE
FRONT
FRAME
ANGLE
5/16" NYLOCK NUT
5/16" x 1"
HEX BOLT
BOOM
MOUNT
BRACKET
REAR
FRAME
ANGLE
5/16" NYLOCK NUT
