bizhub PRESS C1070/C1070P/C1060 3-4
3.1 Removal Procedures 3
9

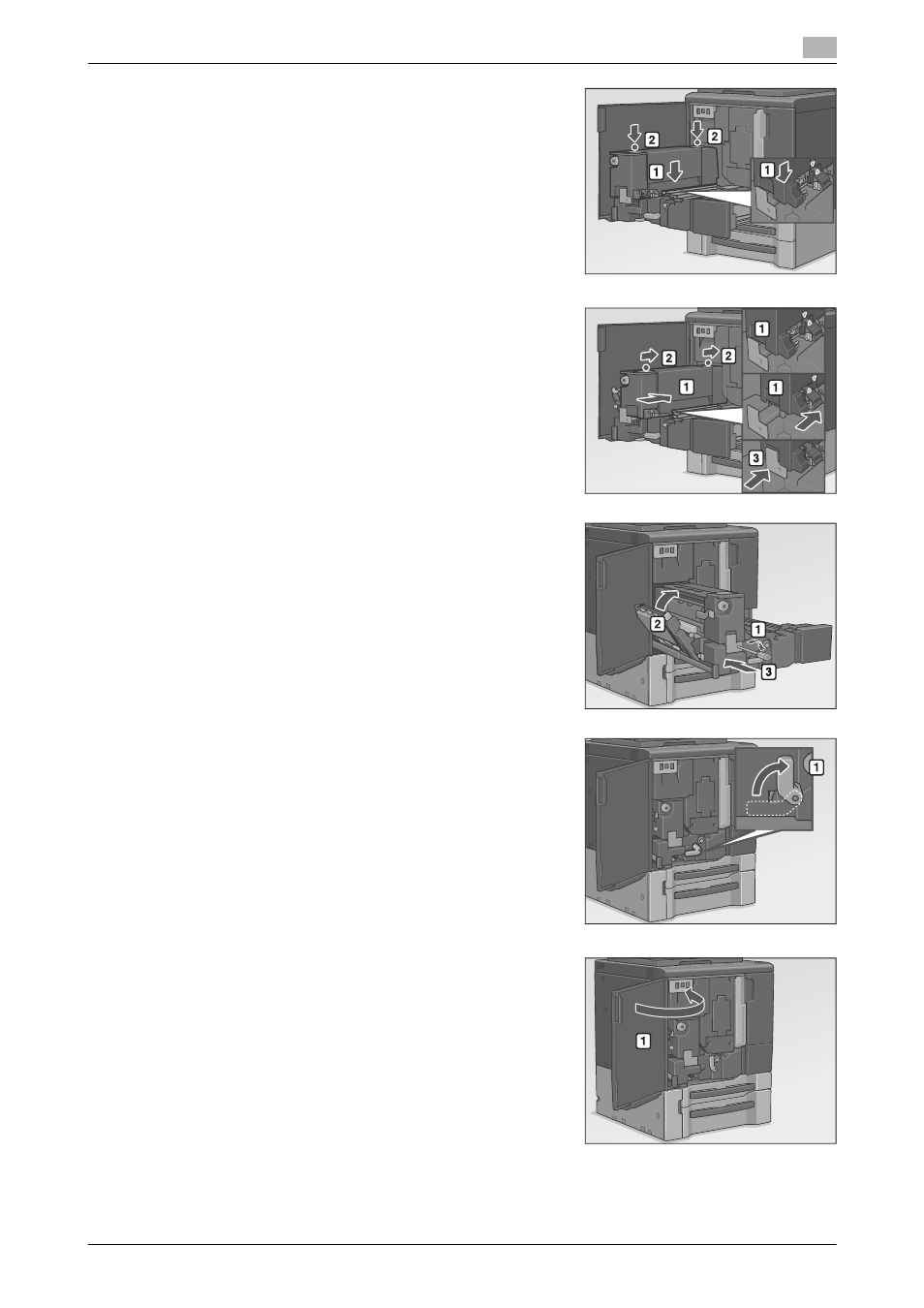

Holding the handles on the front and rear sides [2] of the fus-
ing unit [1] with both hands, set the unit [1] on the fixing po-
sition with arrow mark.
10
Holding the handles on the front and rear sides [2] of the fus-
ing unit [1] with both hands, slide it to the direction of arrow
until it knocks in place.
Return the fixing plate [3] to its original position.
11
Tighten the screw [1] (1 piece) and close the exit section [2].
Insert the ADU drawer [3].
12
Raise the ADU release lever M1 [1] by turning it clockwise.
13
Close the front door [1].
