bizhub PRESS C1070/C1070P/C1060
2-2

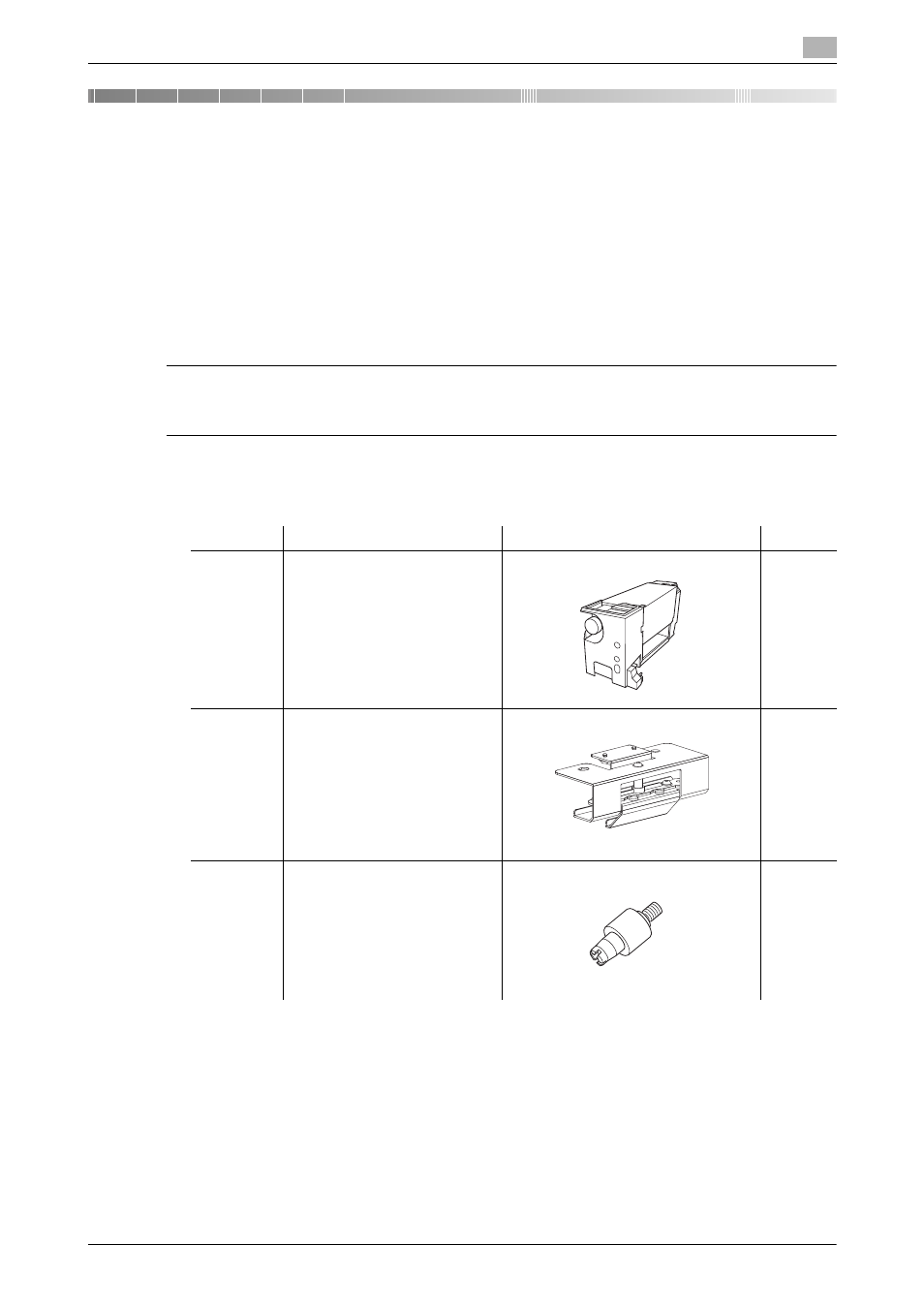

2.1
Replacement Parts
2
2
Installing Fusing Unit EF-103
When replacing the fusing unit, follow the precautions below to perform the task.
NOTICE
When replacing the fusing unit, be sure to receive instructions from our customer engineer.
NOTICE
Please do not dispose of the packaging box of EF-103. Keep the packaging box and reuse it to store the
replaced fusing unit.
NOTICE
With EF-103 installed, only tray 5 (the lower tray) of Paper Feeder Unit PF-707 can be used as a paper source.
All the other trays are unavailable.
7WARNING
-
To avoid danger of suffocation, keep the plastic bag away from babies and children. Please discard the
packaging material after unpacking.
2.1
Replacement Parts
PN
Name
Shape
Q’ty
1
Fusing Unit EF-103
1
2
Auxiliary guide
2
3
Positioning screw
4
