bizhub PRESS C1070/C1070P/C1060 2-3
2.2 Installation Procedures 2

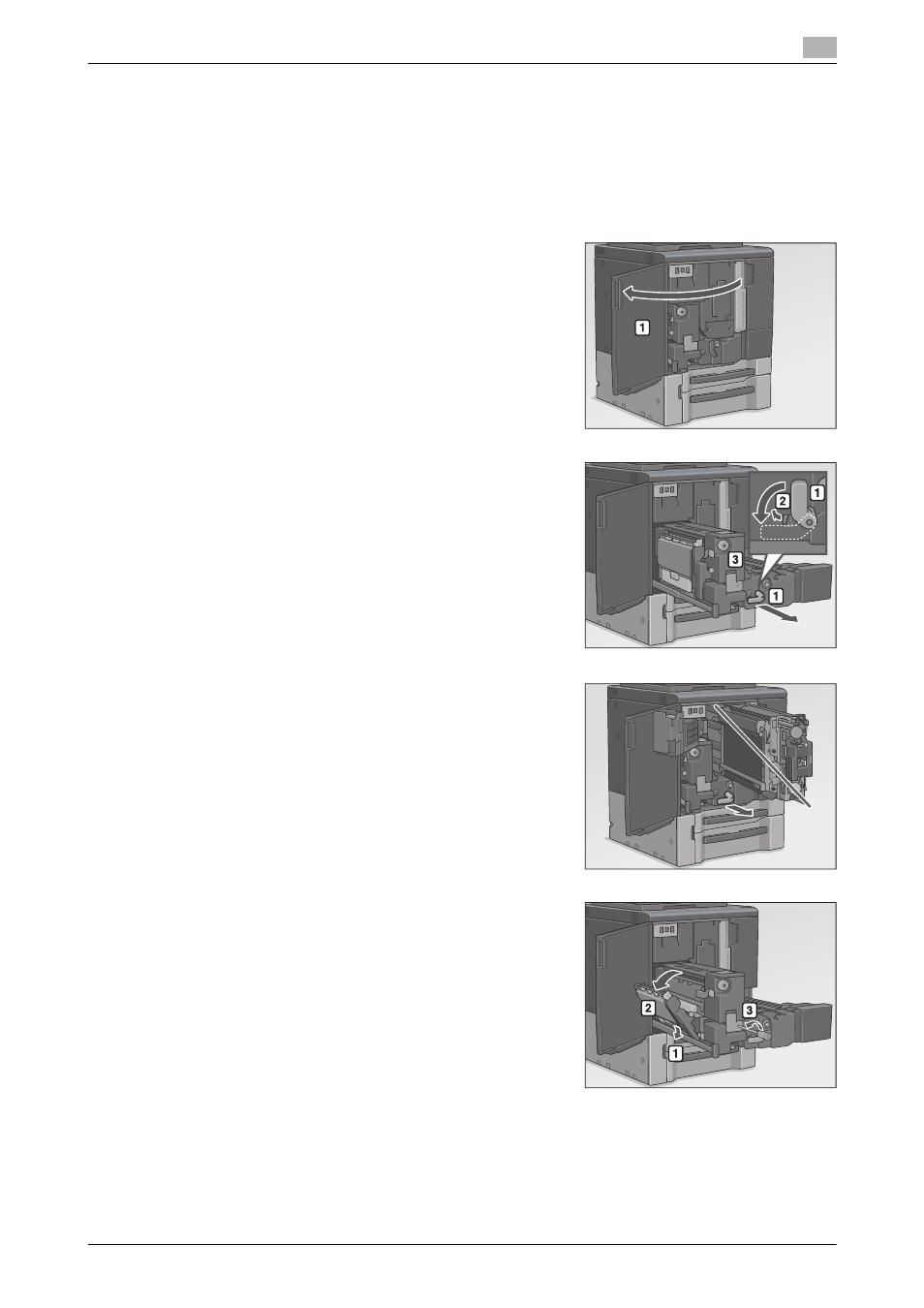

2.2 Installation Procedures
2.2.1 Installing EF-103 on the Main Body
1
Turn off the machine's sub and main power switches, and then unplug the power cord from the outlet.
% Be sure to turn off the sub power switch first.
2
Open the front door [1].
3
To pull out the ADU [3], push the lock [2] of the ADU release
lever M1 [1] to the left, then turn the ADU release lever M1 [1]
counterclockwise.
NOTICE
Please confirm that process unit has not been pulled out
when pulling out the ADU drawer.
4
Open the paper exit guide [2] while releasing the lever M6 [1]
at the bottom.
Loosen the screw [3] (1 piece).
