54 MergePoint 5224/5240 Service Processor Manager User Guide

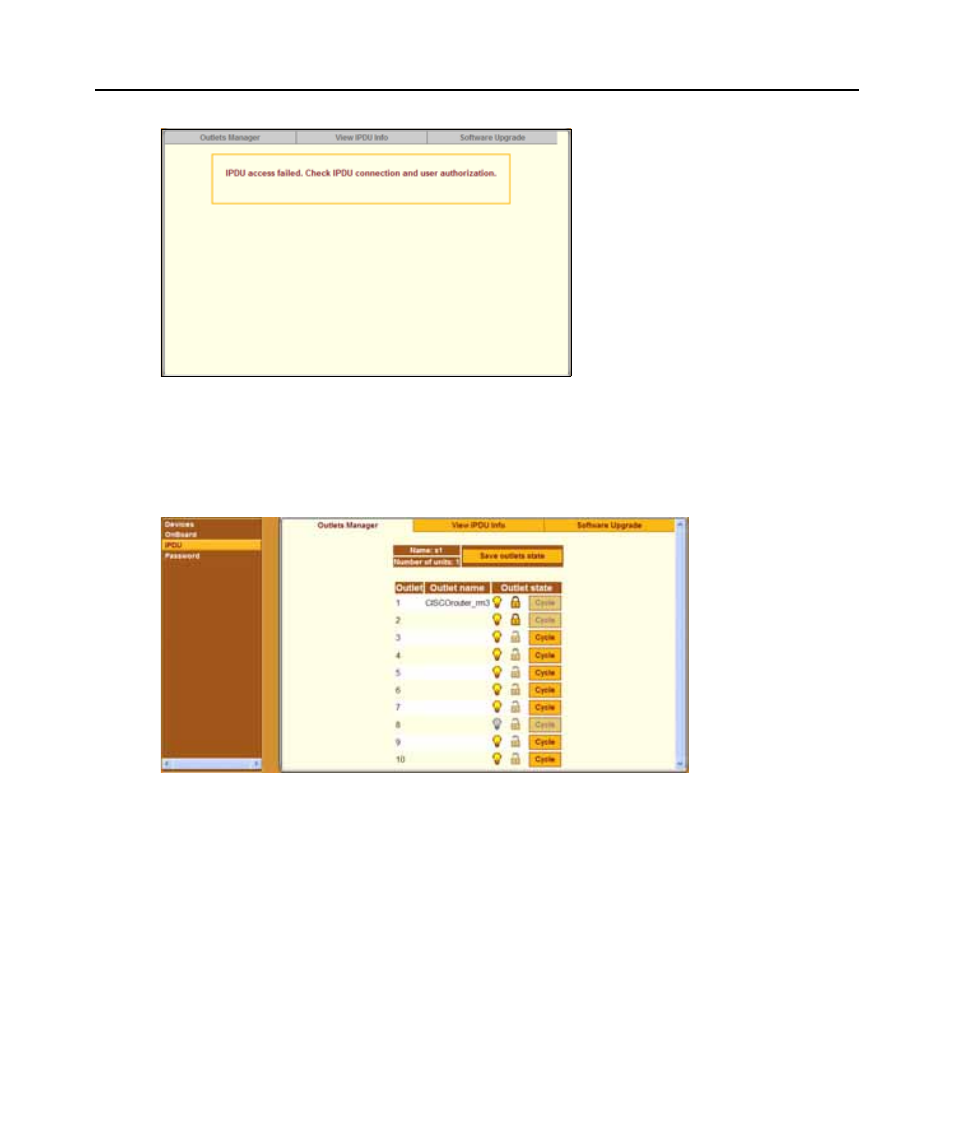

Figure 3.15: IPDU Access Failed Message from Outlets Manager
If a regular user clicks the Outlets Manager tab under the Access - IPDU menu option, the screen
displays a list of all the outlets the user is authorized to manage. If an administrative user clicks
Outlets Manager under the Access - IPDU menu option, all the power outlets on all connected
IPDUs are listed, as shown in Figure 3.16.
Figure 3.16: Access
-
IPDU
-
Outlets Manager Screen
Both regular users authorized for IPDU power management and administrative users can do the
following for any of the listed outlets:
•
Cycle power
•
Lock outlets in the on or off state to prevent accidental changes
•
Unlock the outlets
•
Turn power off
•
Turn power on
•
Save any changes made to the outlets state
