Replacing the cpu – Lenovo IdeaCentre B520e User Manual

Page 43

Text mode
Original mode

Type 2–4 screws.

Step 8.

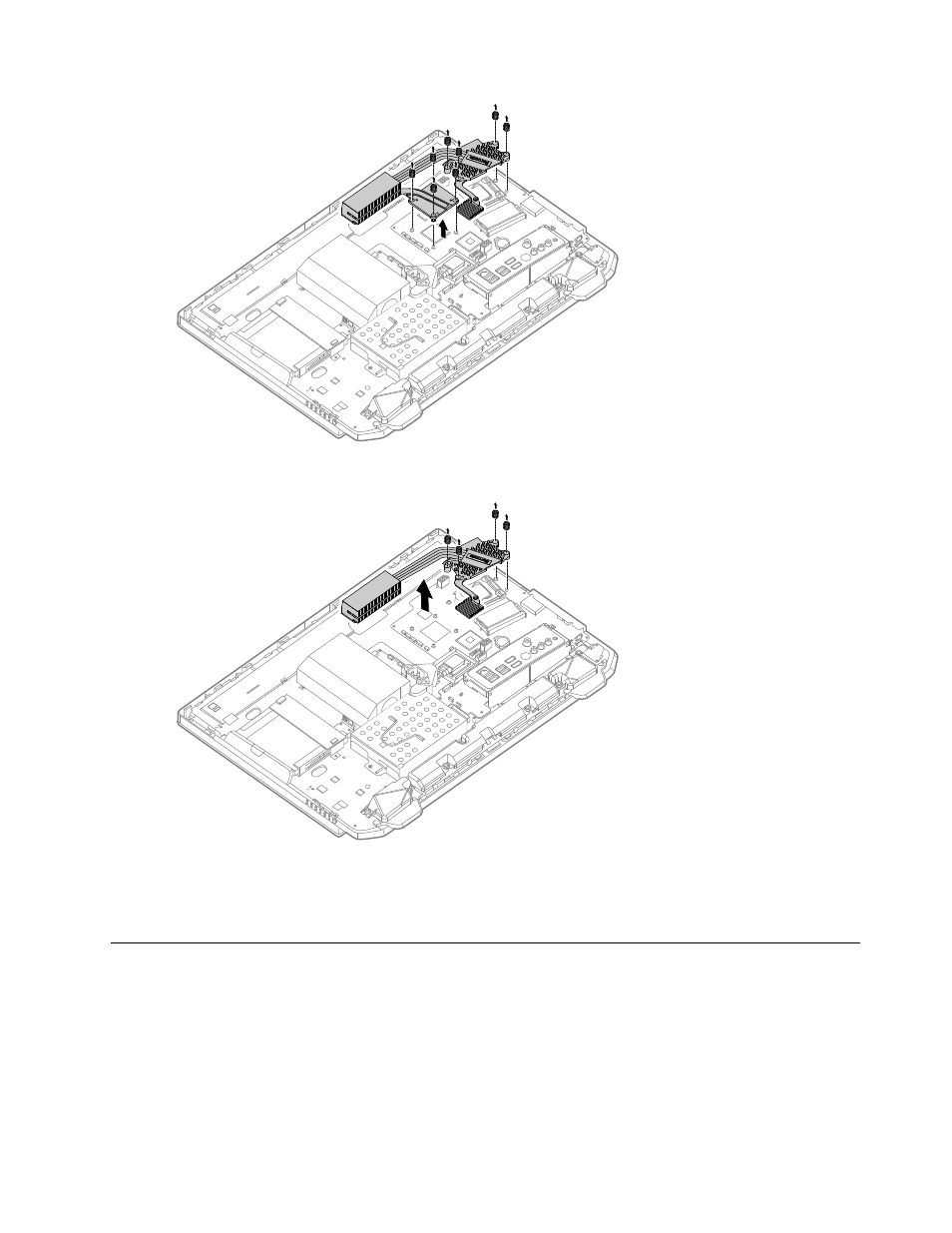

Line up the new heatsink then secure it to the motherboard with the screws.

Step 9.

Attach the system fan to the new heatsink.

Step 10. Reattach the EMI cover, back deco, the computer cover and computer stand.

Replacing the CPU

Note: Turn off the computer and wait 3 to 5 minutes to let it cool down before removing the cover.

Note: It may be helpful to place the computer face-down on a soft flat surface for this procedure. Lenovo
recommends that you use a blanket, towel, or other soft cloth to protect the computer screen from scratches
or other damage.

To replace the CPU:

Chapter 8

Replacing hardware
