Lenovo IdeaCentre B520e User Manual
Page 28
Hardware components

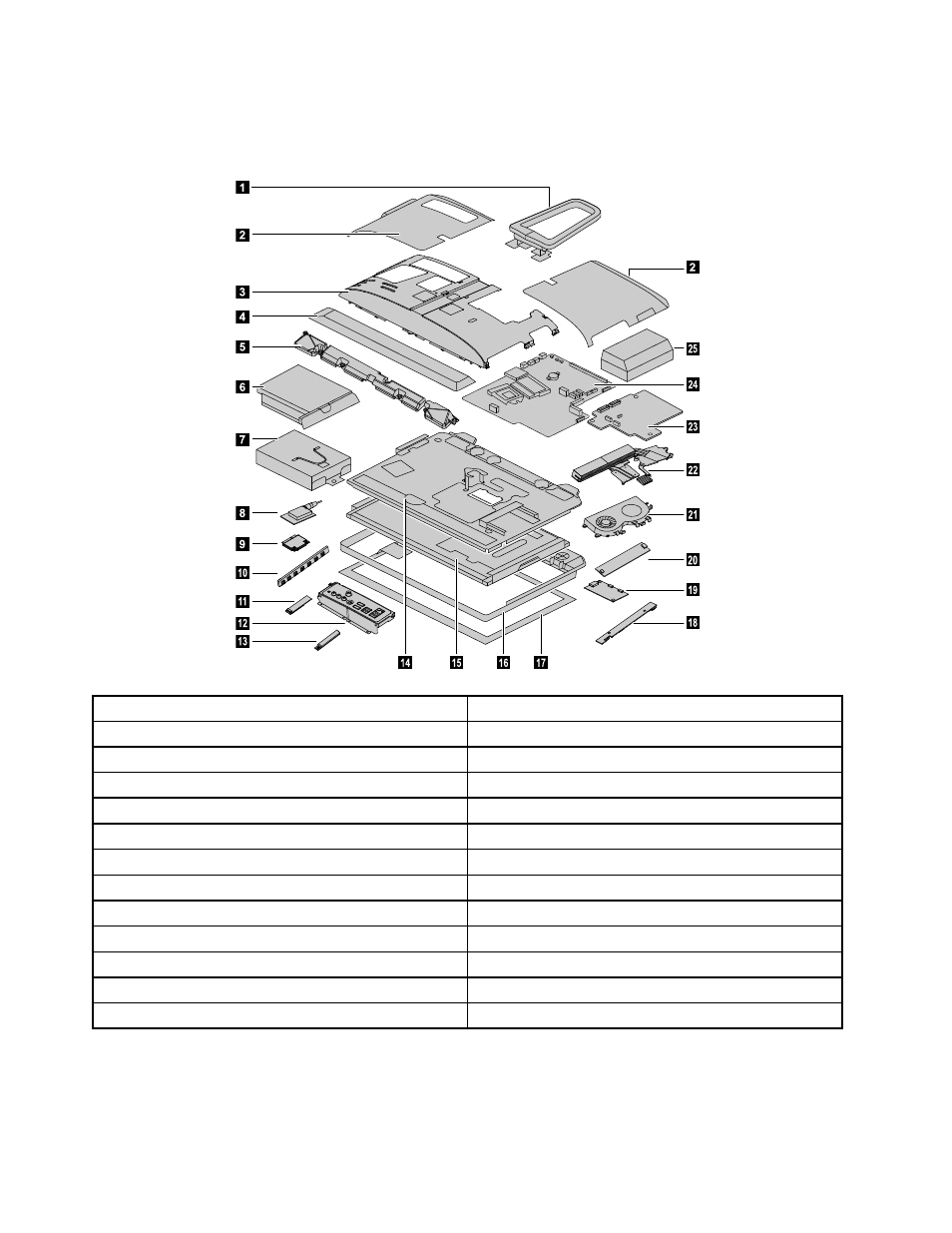

The following illustration shows the components that make up your computer.
1. Computer stand
14. Chassis
2. Rear cover
15. LED panel
3. EMI cover
16. Front bezel
4. Back Deco
17. Glass
5. Speakers
18. Camera
6. Optical disk drive
19. Touch module
7. Hard disk drive
20. Converter
8. Hardware TV tuner board
21. System fans
9. WLAN card
22. Heatsink
10. Hardware TV switch board
23. Hardware TV Scale Board
11. Bluetooth module
24. Motherboard
12. Rear I/O module
25. Power supply
13. Infra red module
22
IdeaCentre B520e Hardware Maintenance Manual
