Lenovo IdeaCentre B520e User Manual
Page 36

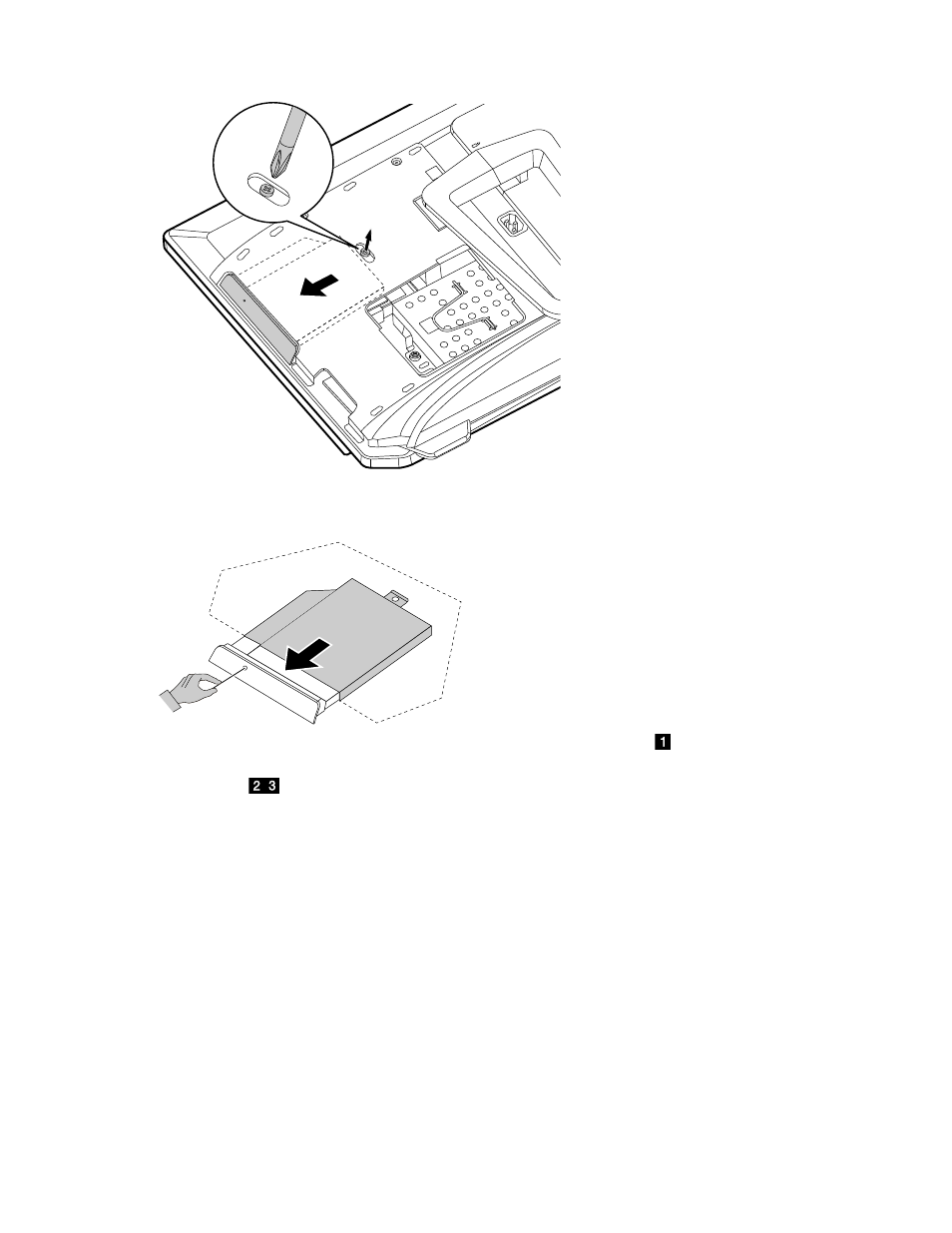

Step 7.
Push a small iron stick (e.g.a paper clip) into the small hole on the optical drive cover so that the
optical drive springs out as shown.
Step 8.
Remove the 2 screws that secure the optical drive to the metal bracket.
Step 9.
Use a small flat head screwdriver to press and push out the pins that secure the cover to the
optical drive.
Step 10. Separate the cover from the defective optical drive.
30
IdeaCentre B520e Hardware Maintenance Manual
