Chapter 7. Locations
This section provides illustrations to help locate the various connectors, controls and components of the
computer.
Locating components, controls and connectors
The following illustrations will help you to locate the various components, controls and connectors on your
computer.
Font view

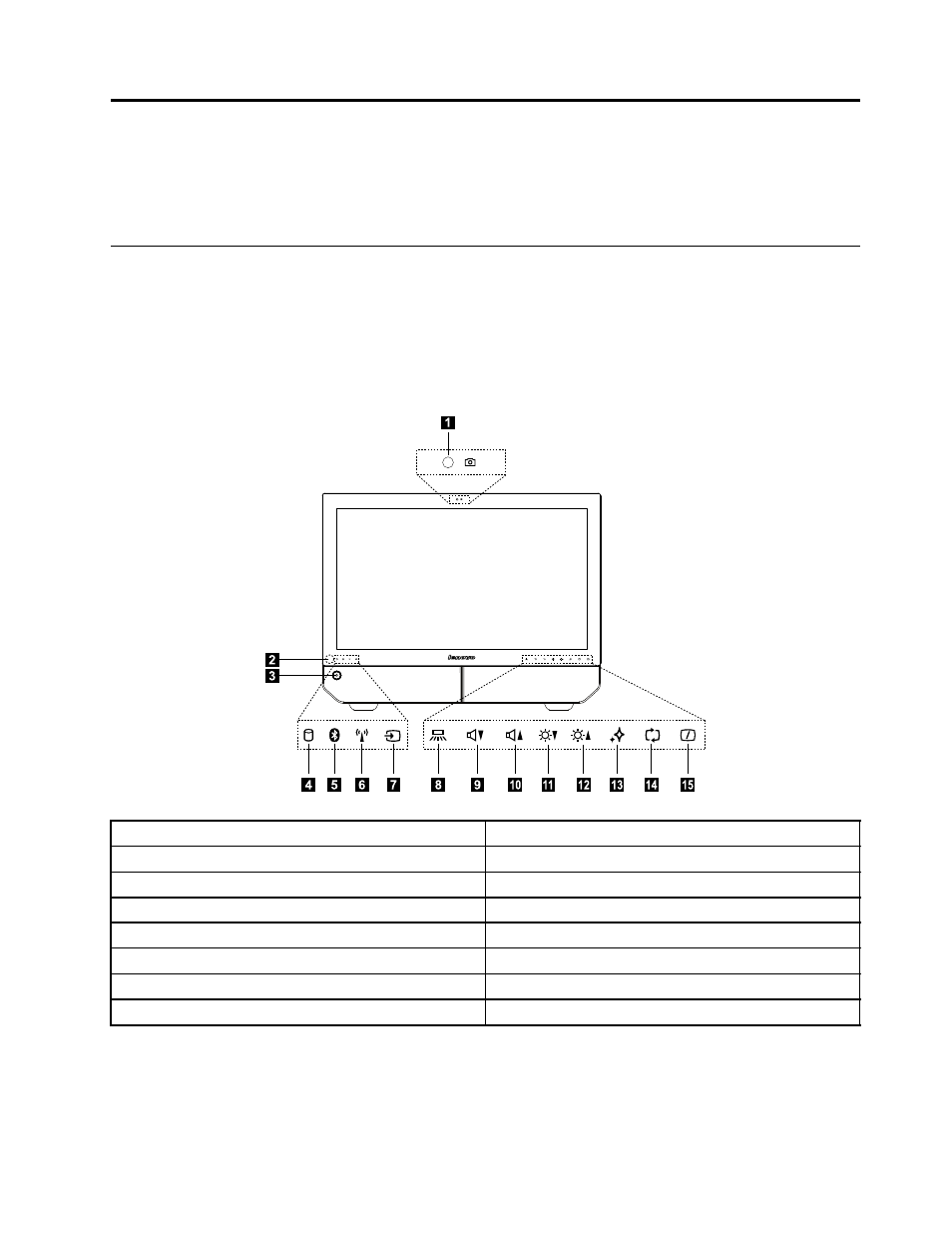

The following illustration shows the location of controls and components on the front of the computer.
1
4
3
5
6
7
8
9
1
0
1
1
1
2
1
3
1
4
1
5
2
1. Camera
9. Volume down
2. Built-in IR emitter (Do not block)
10. Volume up
3. Power button
11. Brightness down
4. Hard disk drive indicator
12. Brightness up
5. Bluetooth status indicator
13. Novo Vision button
6. WIFI status indicator
14. PC mode / HDMI-in / AV-in switch
7. AV-in / HDMI-in indicator
15. Monitor On/Off
8. Indicator lights ON/OFF button
Note: The quality of video output will be affected accordingly due to the restriction of the actual bandwidth
used by users and the limitation of data transmission speed of the video communication software.
Note: The effective range of the Built-in IR emitter is 10 feet.
