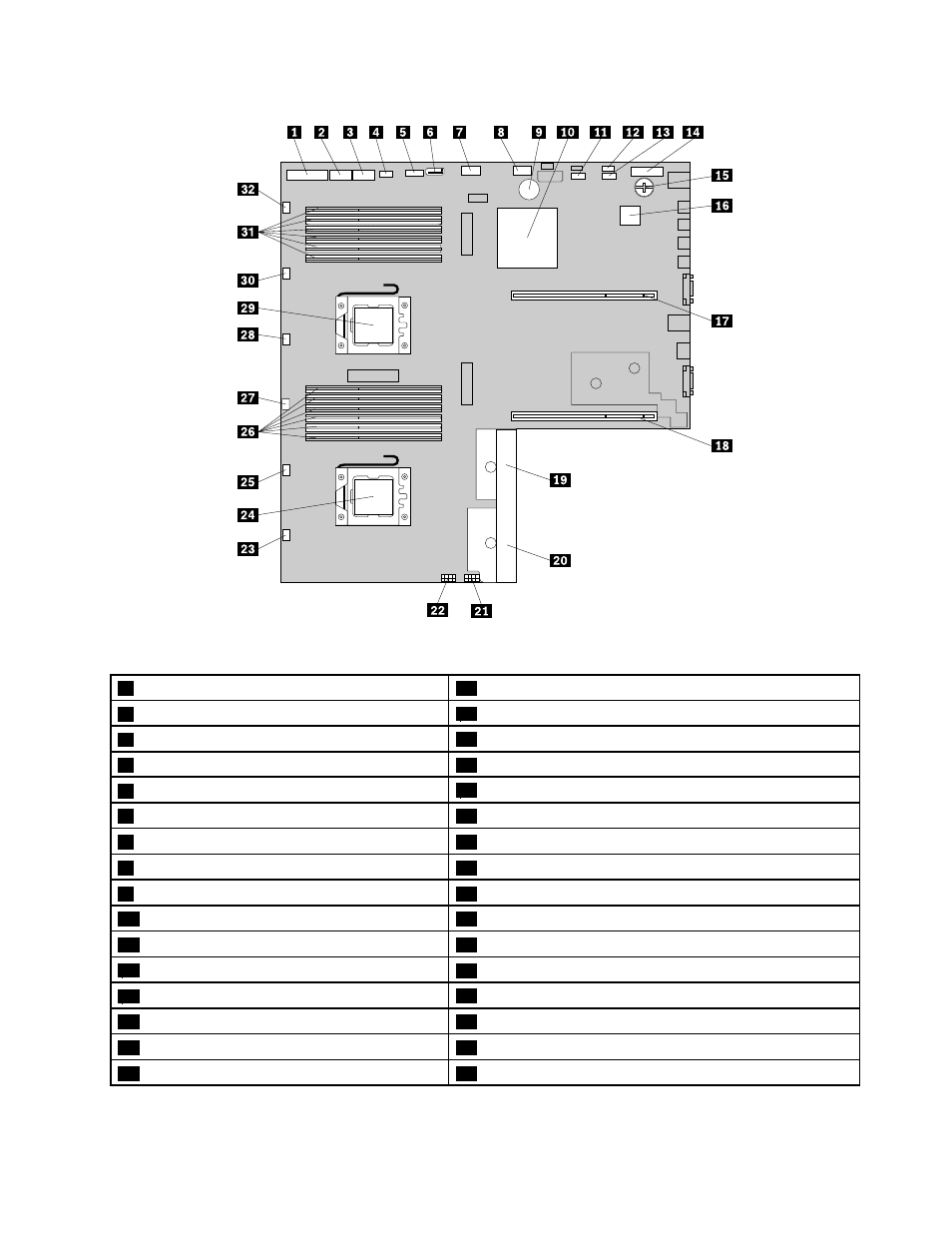

Figure 29. System board components
1 Front panel connector 17 Riser card assembly 1 slot
2 Internal USB connector 1 18 Riser card assembly 2 slot
3 Internal USB connector 2 19 Redundant power supply connector 1
4 Intelligent Diagnostics Module connector 20 Redundant power supply connector 2
5 Front VGA connector 21 Backplane power connector 1
6 SATA connector 0 22 Backplane power connector 2
7 SAS connector 4-7 23 System fan 7 connector
8 SAS connector 0-3 24 Microprocessor socket 2
9 Coin-cell battery 25 System fan 6 connector
10 Platform Controller Hub (PCH) 26 Memory slots (6)
11 Internal USB Type A connector 1 27 System fan 5 connector
12 TMM Premium connector 28 System fan 3 connector
13 Internal USB Type A connector 2 29 Microprocessor socket 1
14 TPM connector 30 System fan 2 connector
15 iButton socket 31 Memory slots (6)
16 ThinkServer Management Module 32 System fan 1 connector
Chapter 3 . Product overview 39
