ThinkServer RAID 500 Adapter (also known as ThinkServer 9240-8i RAID 0/1 Adapter)

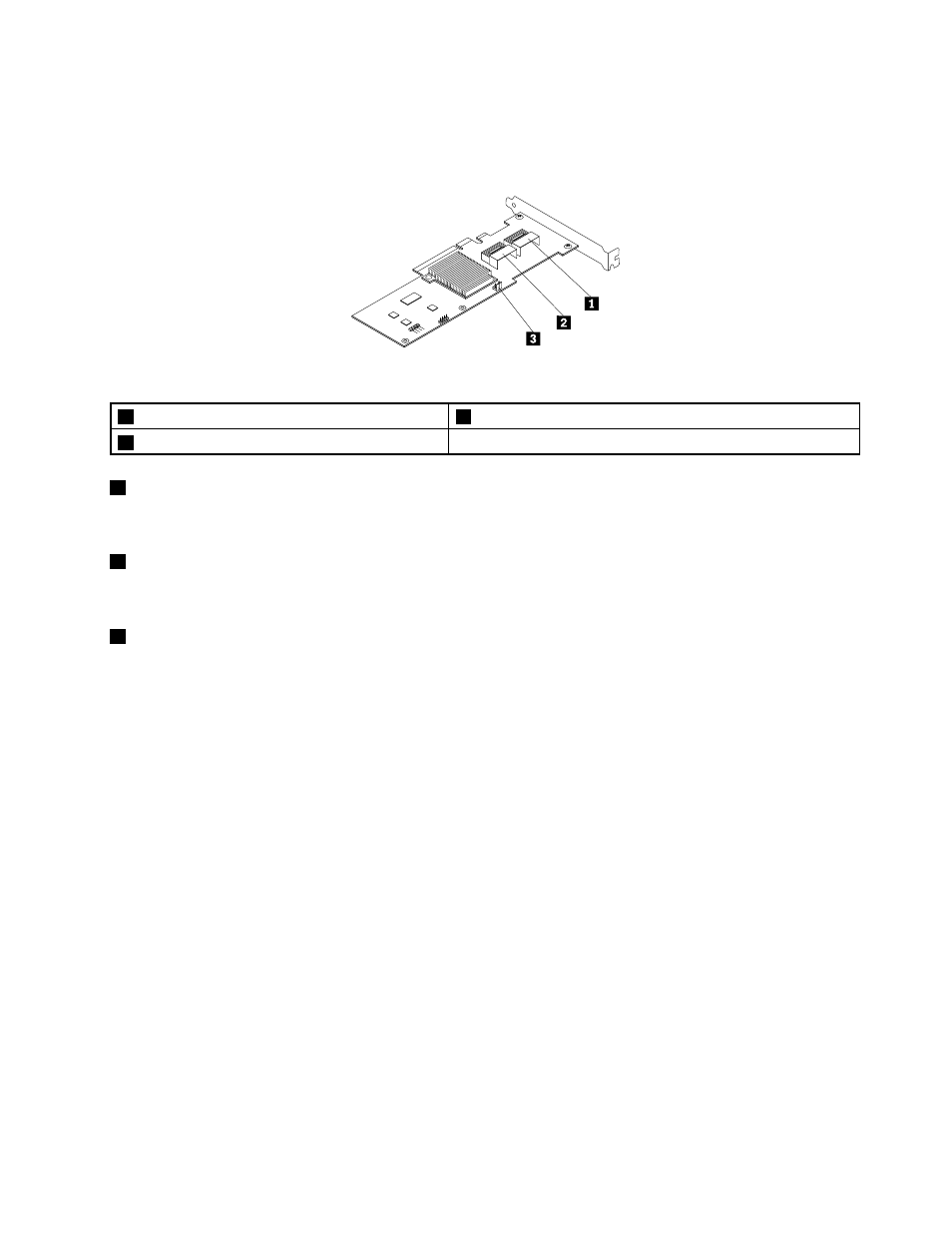

The following illustration shows the connectors on the ThinkServer RAID 500 Adapter.
Figure 19. ThinkServer RAID 500 Adapter
1 Port 0 3 TR 500 key connector
2 Port 1
1 Port 0
Used to connect a mini-SAS signal cable. See “Connecting the cables” on page 36.
2 Port 1
Used to connect a mini-SAS signal cable. See “Connecting the cables” on page 36.
3 TR 500 key connector
Used to connect a ThinkServer RAID 500 Upgrade Key for Advanced RAID. See “Installing or removing the
ThinkServer RAID 500 Upgrade Key for Advanced RAID” on page 95.
