8. Carefully lift the backplane. When the hooks

1

on the chassis are aligned with the corresponding holes

in the backplane, slowly move the backplane slightly outward. Then, completely remove the backplane.

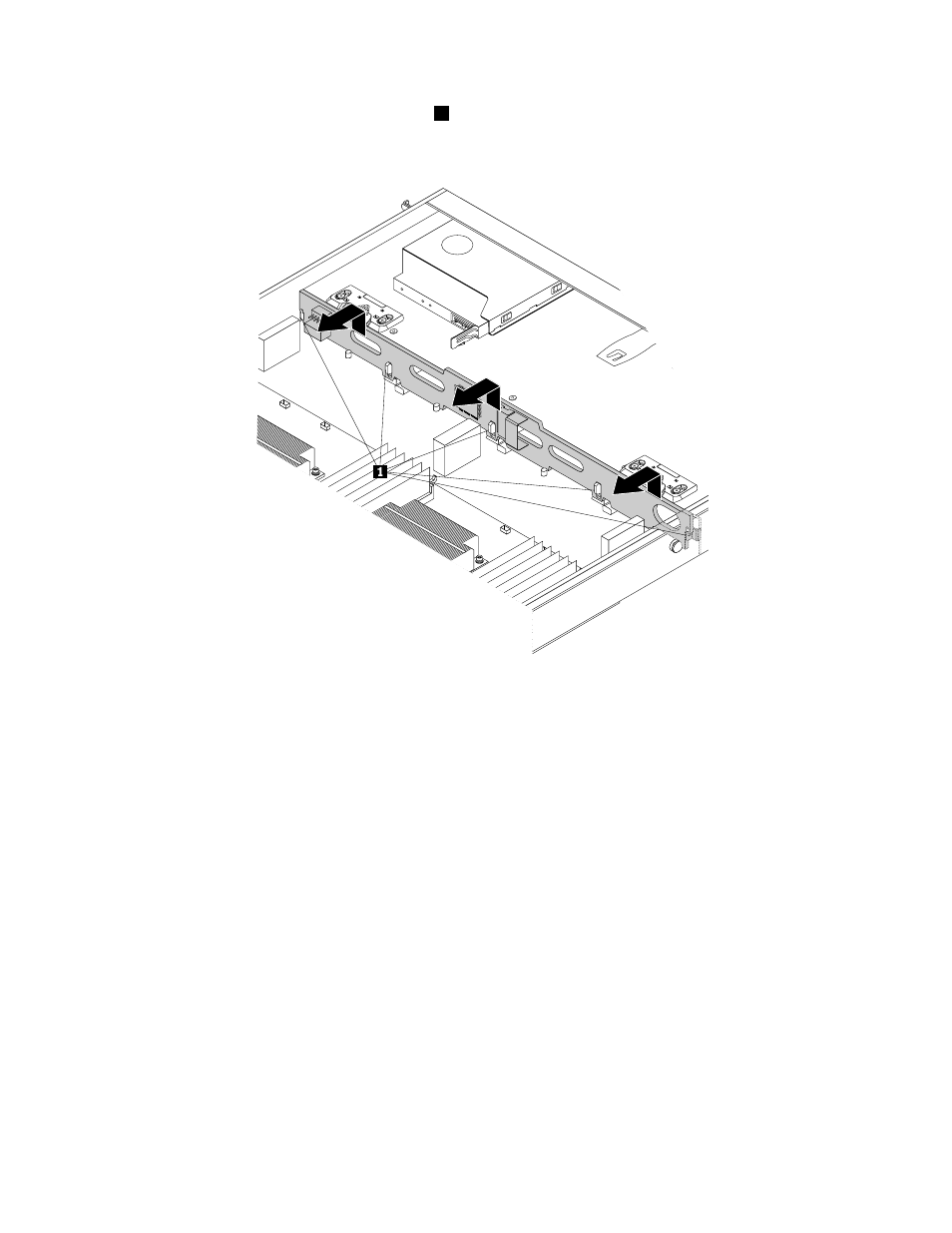

Figure 111. Removing the backplane

9. Touch the static-protective package that contains the new hot-swap hard-disk-drive backplane to any

unpainted surface on the outside of the server. Then, remove the new backplane from the package.

Note: Carefully handle the backplane by its edges.

152

ThinkServer RD340 User Guide and Hardware Maintenance Manual
