• Route the signal cables

1

through the left inner side of the chassis. The signal cables include the

mini-SAS to mini-SAS signal cable, the front panel cable, the front panel USB cable, the diagnostic
module cable, and the SATA signal cable for the optical drive.

• Connect the power cable

2

for the optical drive to the optical drive power connector on the

backplane and properly route the cable in the chassis.

• Route the backplane power cable

3

through the right inner side of the chassis.

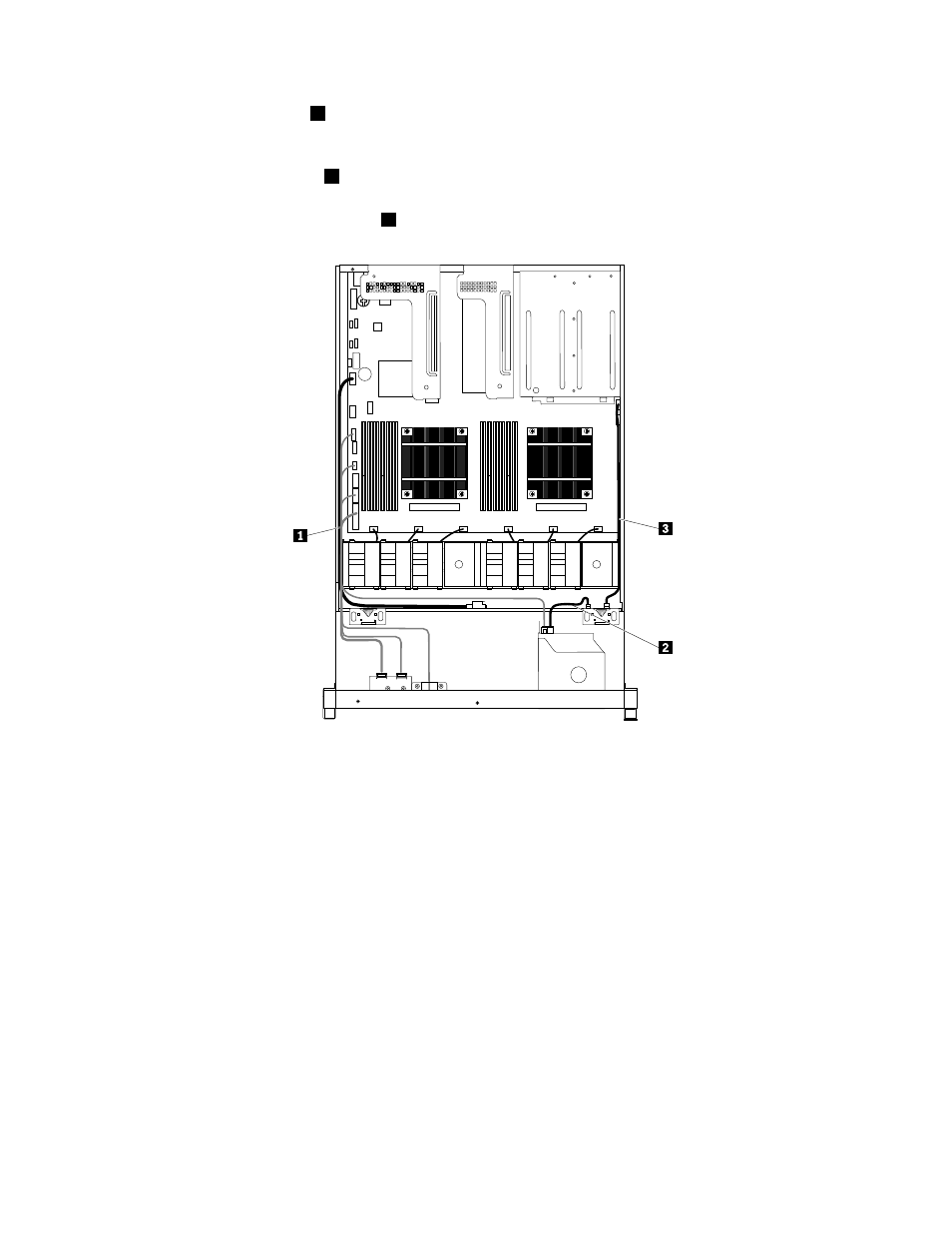

Figure 132. Cable routing for server models with 3.5-inch hard disk drives

172

ThinkServer RD340 User Guide and Hardware Maintenance Manual
