7. Note the orientation of the new ThinkServer RAID Super Capacitor Module. Then, gently press the tab
1 on the bracket and install the new ThinkServer RAID Super Capacitor Module into the bracket at
the same time.

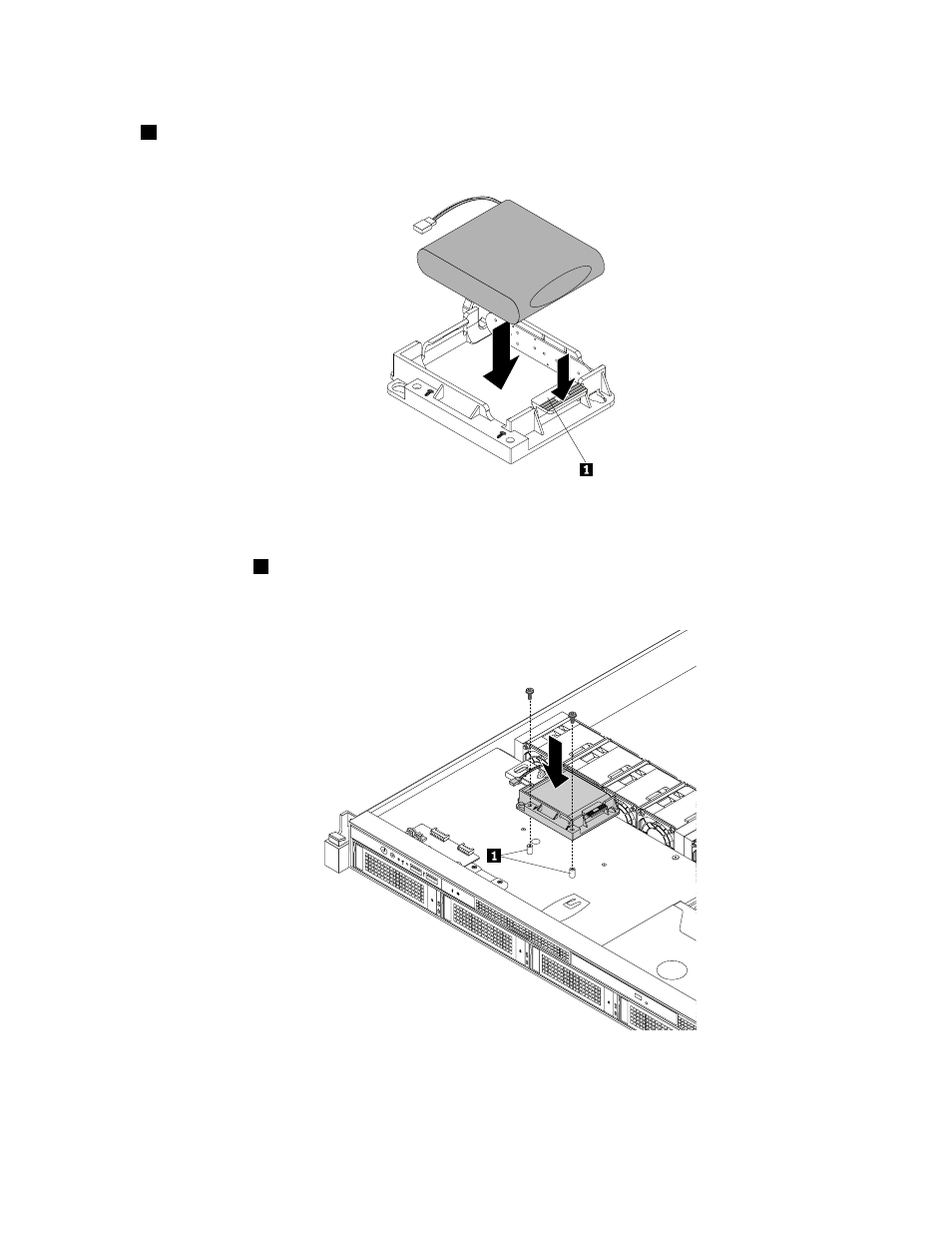

Figure 108. Installing the ThinkServer RAID Super Capacitor Module into the bracket
8. Position the new ThinkServer RAID Super Capacitor Module with bracket on the chassis so that the
mounting studs 1 on the chassis pass through the corresponding holes in the bracket. Then, install the
two screws to secure the ThinkServer RAID Super Capacitor Module bracket.
ID
Mem CPU
PSU
Figure 109. Installing the ThinkServer RAID Super Capacitor Module with bracket
9. Connect the cable to the new ThinkServer RAID Super Capacitor Module.
Chapter 6 . Installing, removing, or replacing hardware 149
