7. When installing your new system fan assembly, use the new rubber mounts
that come with the new system fan.
8. Install the two short rubber mounts in the new system fan assembly as shown
in Figure 19.
9. Install the two long rubber mounts into the rear of the chassis as shown in
Figure 20. Push the mounts through the holes of the chassis. If necessary, pull
the mounts through the holes from inside the chassis.
10. To install the new system fan assembly into the chassis, align the open holes
in the system fan assembly with the long rubber mounts in the chassis. Pull
the rubber mounts through the holes in the system fan assembly until the
system fan is in place.
11. Once the system fan assembly is secure, you should remove the extra rubber
from the mounts.
12. Connect the system fan assembly cable to the system fan connector on the
system board.
13. Replace the hard disk drive, if it was removed.
14. Go to Chapter 4, “Completing the parts replacement,” on page 27.

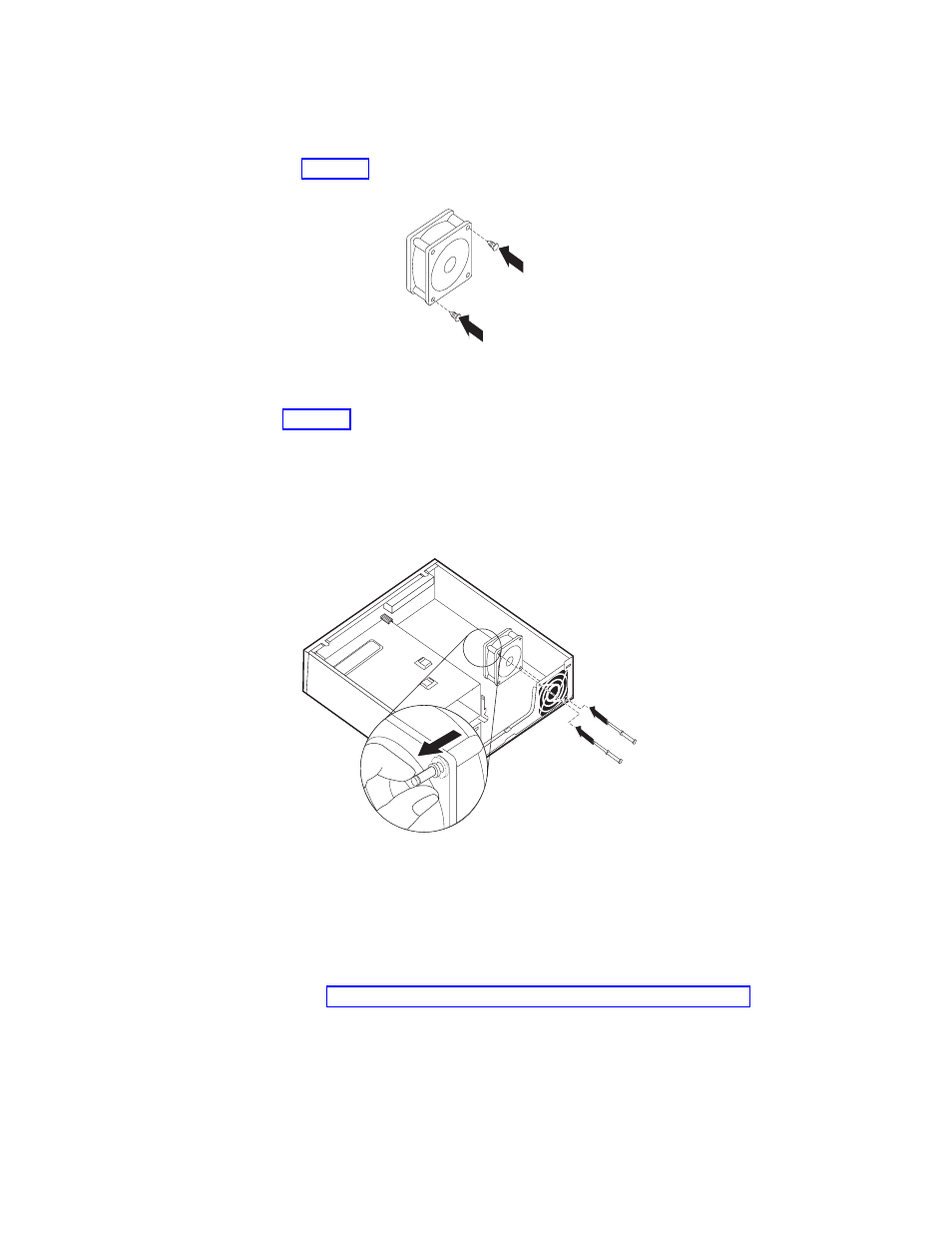

Figure 19. Installing the short rubber mounts
Figure 20. Replacing the system fan assembly
24 Hardware Installation and Replacement Guide
