2.
Locate
the
MDC
connector.
See
The
modem
card
1
will
be
connected
to
the
MDC
connector.
3.
Disconnect
the
RJ11
modem
cable
from
the
modem
card.
4.
Remove
the
two
screws
that
secure
the
modem
card
to
the
system
board.
5.
Remove
the
modem
card
from
the
system
board.
6.
Install
the
new
modem
card
to
the
MDC
connector
on
the
system
board
by
aligning
the
holes
in
the
modem
card
with
the
pins
in
the
system
board.
7.
Install
the
two
screws
to
secure
the
modem
card
to
the
system
board.
8.
Connect
the
RJ11
modem
cable
to
the
modem
card.

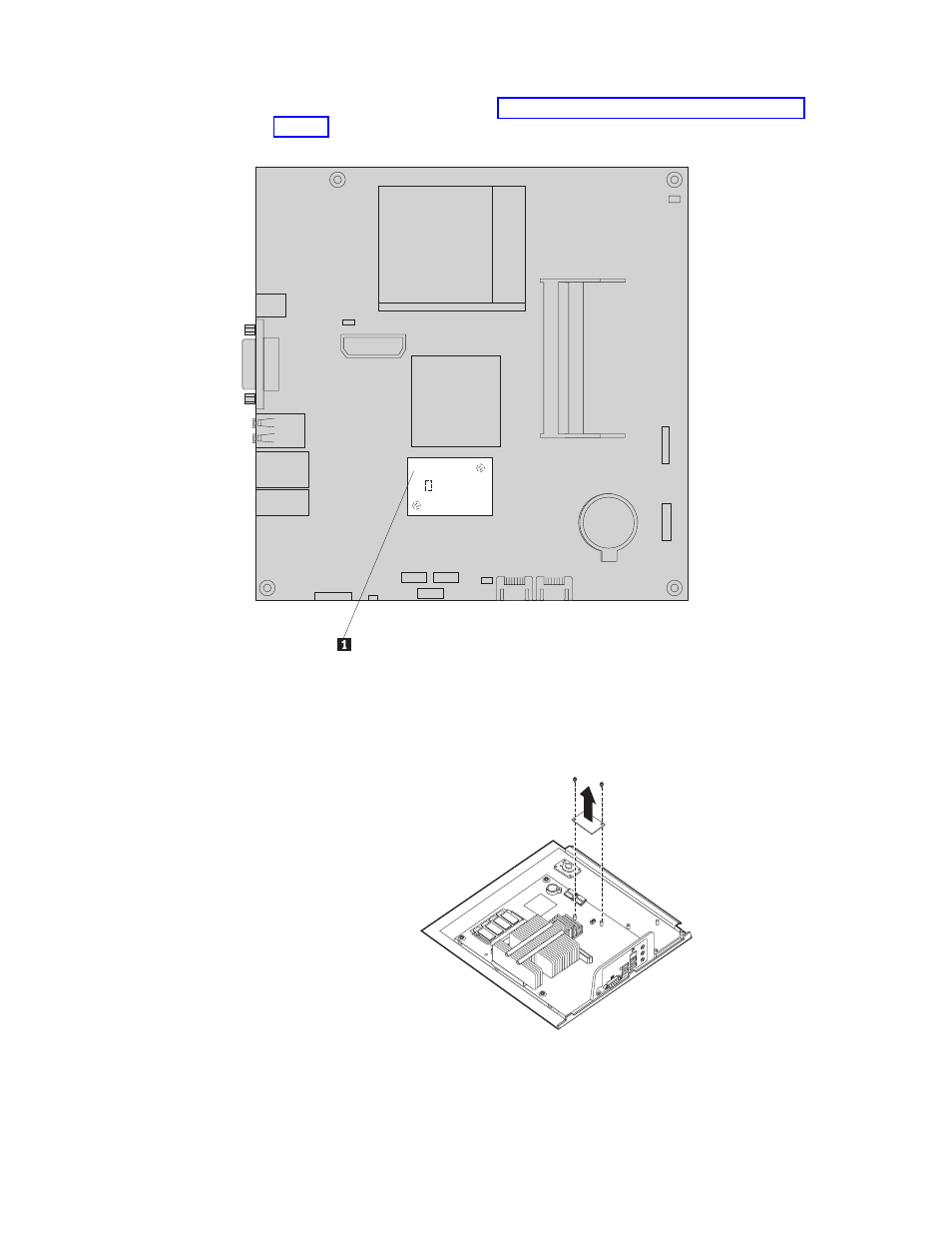

Figure
17.
Locating
the
modem
daughter
card
on
the
system
board
22
Hardware
Installation
and
Replacement
Guide
