Locating connectors on the rear of your computer, Locating, Connectors – Lenovo ThinkCentre A61e User Manual
Page 14: Rear, Your, Computer
Locating
connectors
on
the
rear
of
your
computer

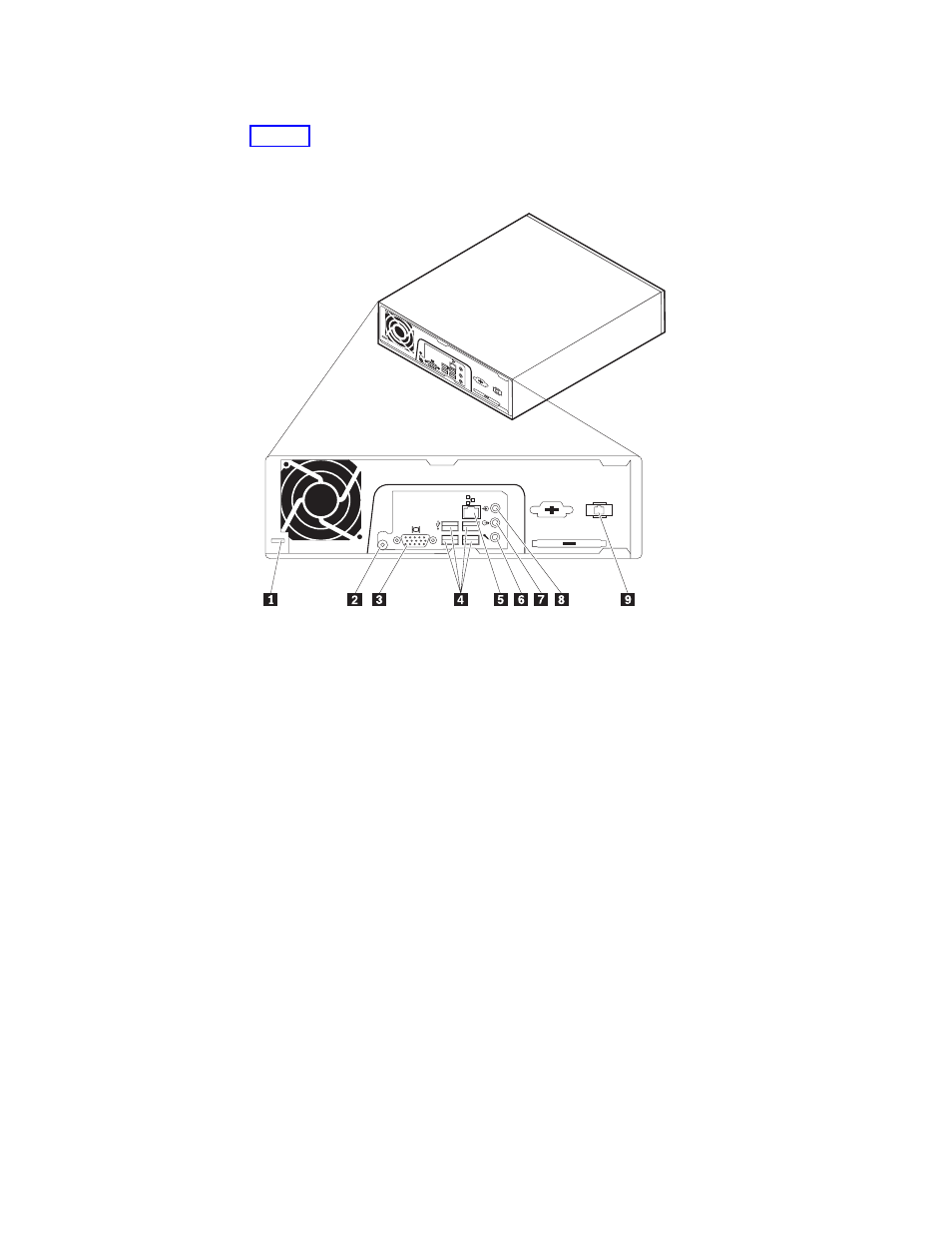

shows
the
location
of
connectors
on
the
rear
of
some
computer
models.
Some
connectors
on
the
rear
of
your
computer
are
color-coded
to
help
you
determine
where
to
connect
the
cables
on
your
computer.
1
Cable
lock
latch
6
Microphone
connector
2
Power
adapter
connector
7
Audio
line
out
connector
3
Monitor
connector
8
Audio
line
in
connector
4
USB
connectors
(4)
9
RJ11
modem
connector
5
Ethernet
connector
Figure
2.
Locating
the
rear
connectors
6
Hardware
Installation
and
Replacement
Guide
