2.

Remove

the

front

bezel

by

releasing

the

two

tabs

and

pivoting

the

bezel

forward

to

remove

completely.

3.

Disconnect

the

signal

and

power

cables

from

the

rear

of

the

optical

drive.

4.

Press

the

blue

release

button

and

remove

the

optical

drive

out

the

front

of

the

computer.

5.

Remove

the

retainer

bracket

from

the

failing

drive

and

install

it

on

the

new

optical

drive.

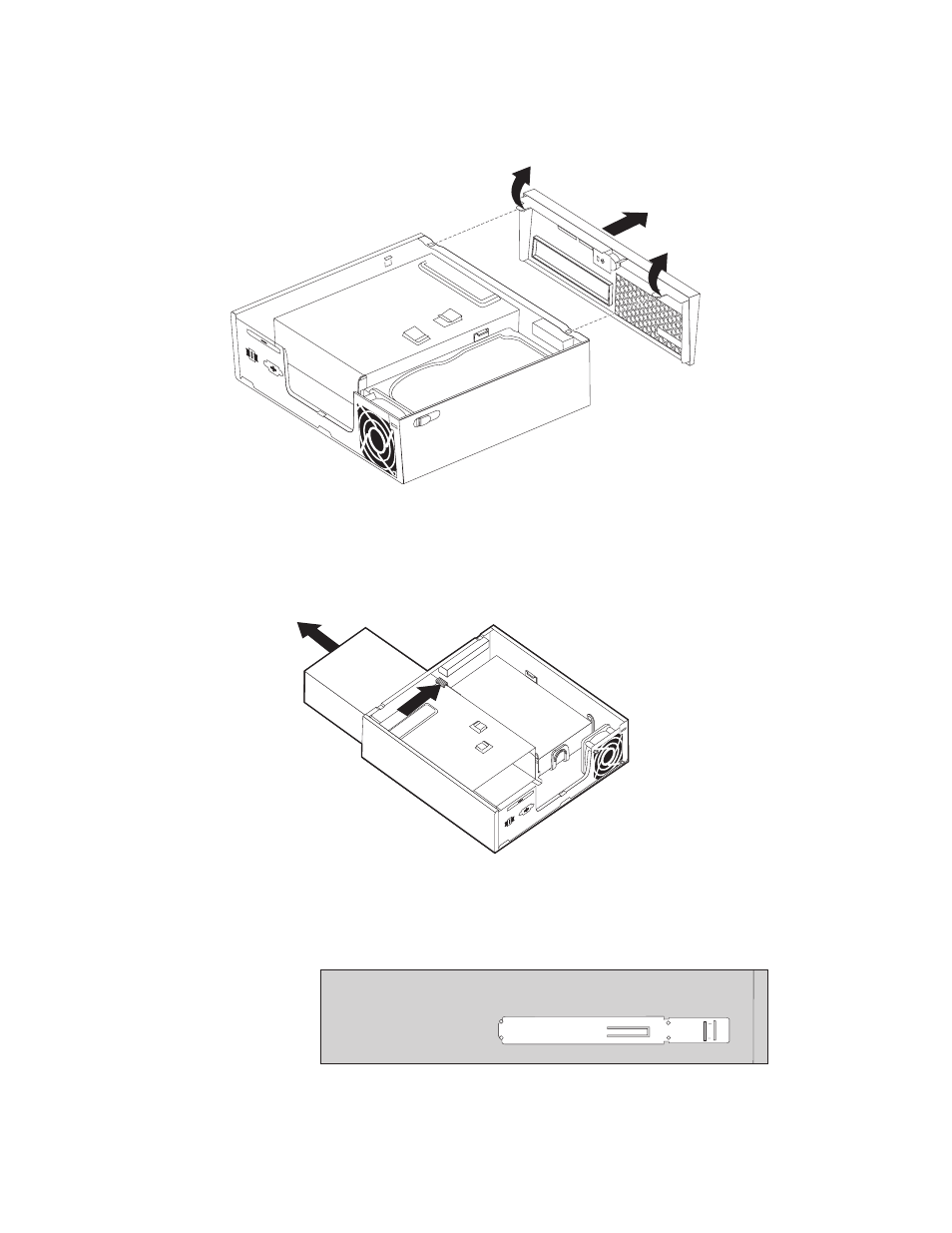

Figure

11.

Removing

the

front

bezel

Figure

12.

Removing

the

optical

drive

Figure

13.

Retainer

bracket

for

optical

drive

18

Hardware

Installation

and

Replacement

Guide
