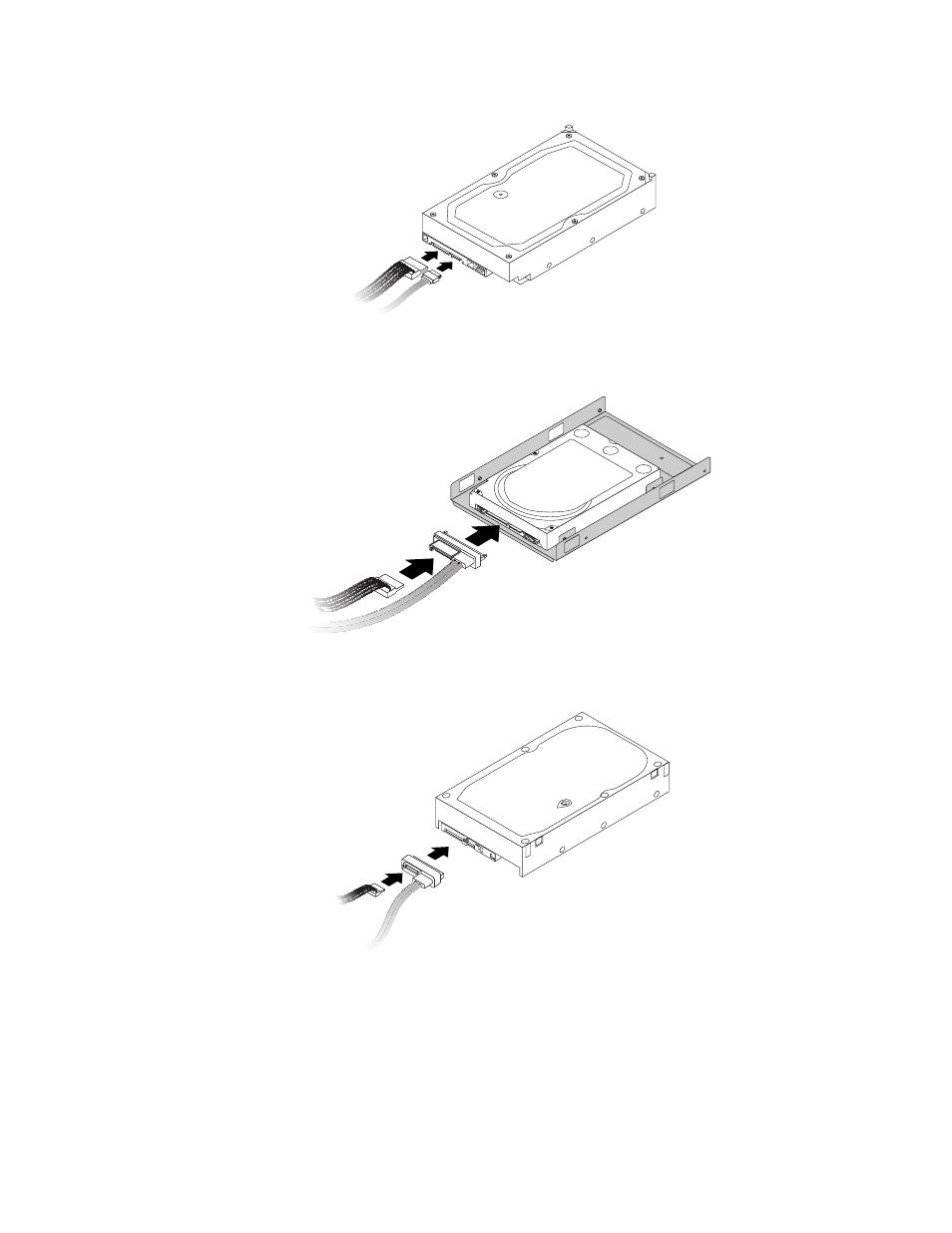

Figure 17. Connecting a 3.5-inch SATA hard disk drive

Figure 18. Connecting a 2.5-inch SATA hard disk drive

Figure 19. Connecting a 3.5-inch SAS hard disk drive

7. Connect the other end of the signal cable to one of the available hard disk drive connectors on the

system board. See “Identifying parts on the system board” on page 8.

What to do next:

• To work with another option, go to the appropriate section.
