Locating components

To remove the computer cover, see “Removing the computer cover” on page 11.

Figure 3 “Component locations” on page 7 shows the location of the components in your computer.

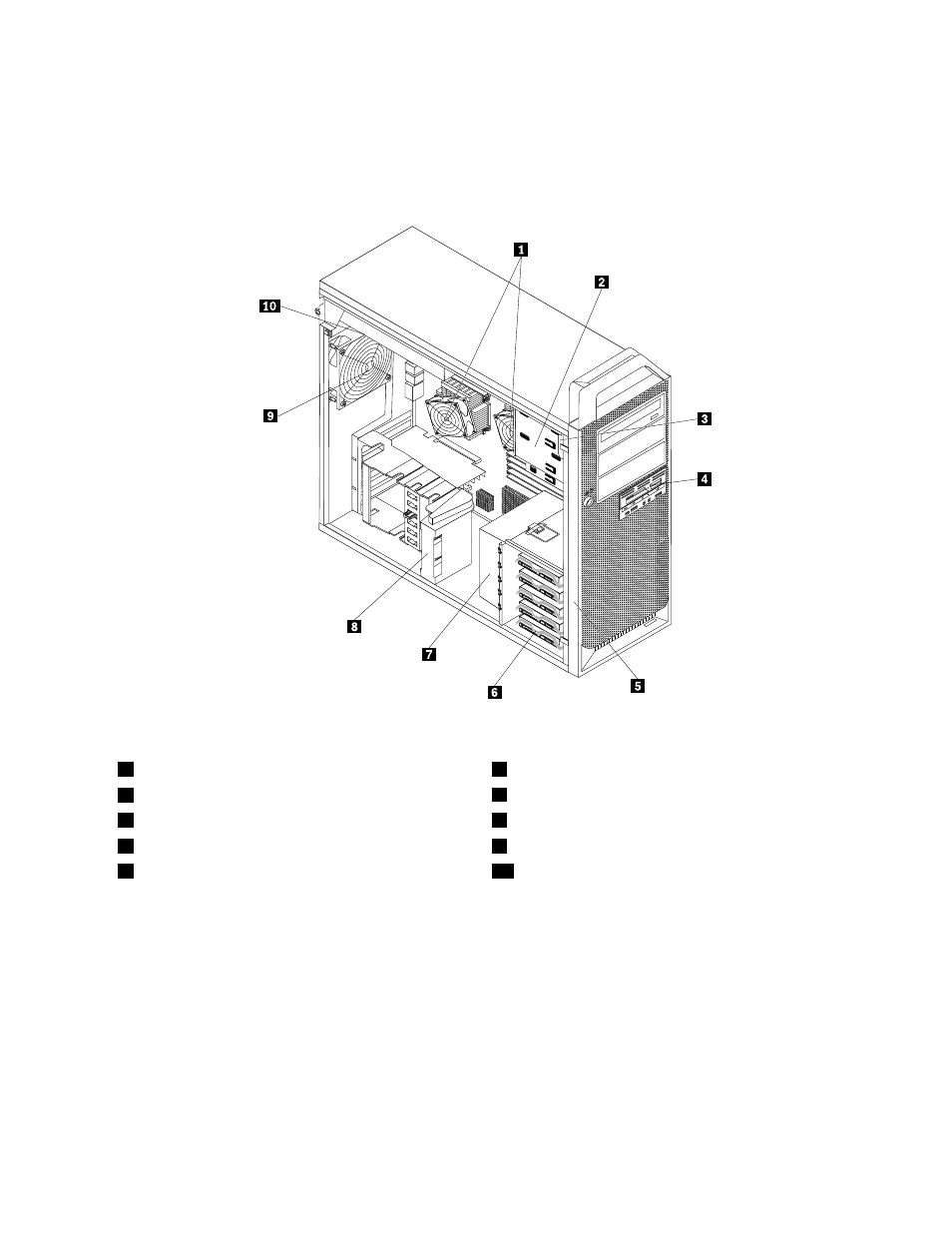

Figure 3. Component locations

1

Microprocessors and heat sinks (2)

6

Hard disk drive bays (5)

2

Optical drive bays (3)

7

Hard disk drive fan assembly

3

Internal speaker

8

Adapter card retainer

4

3.5-inch diskette drive or card reader

9

Rear fan assembly

5

Front bezel

10

Power supply assembly

Chapter 2

.

Overview

7
