62 January 1996
Systems Running WINDOWS Software
Your IBM-PC or compatible computer has either a 9-pin or a 25-pin
serial port. The cable supplied with the DC50 zoom camera uses
a 9-pin connector. If you are using a 25-pin serial port, you must
use the adapter provided with the camera.
IMPORTANT: Use only the cable that is provided with the
DC50 zoom camera.
1. Push the sliding cover closed.
The camera is off.
2. Attach the 9-pin adapter to the 25-pin port if your computer has a
25-pin port.

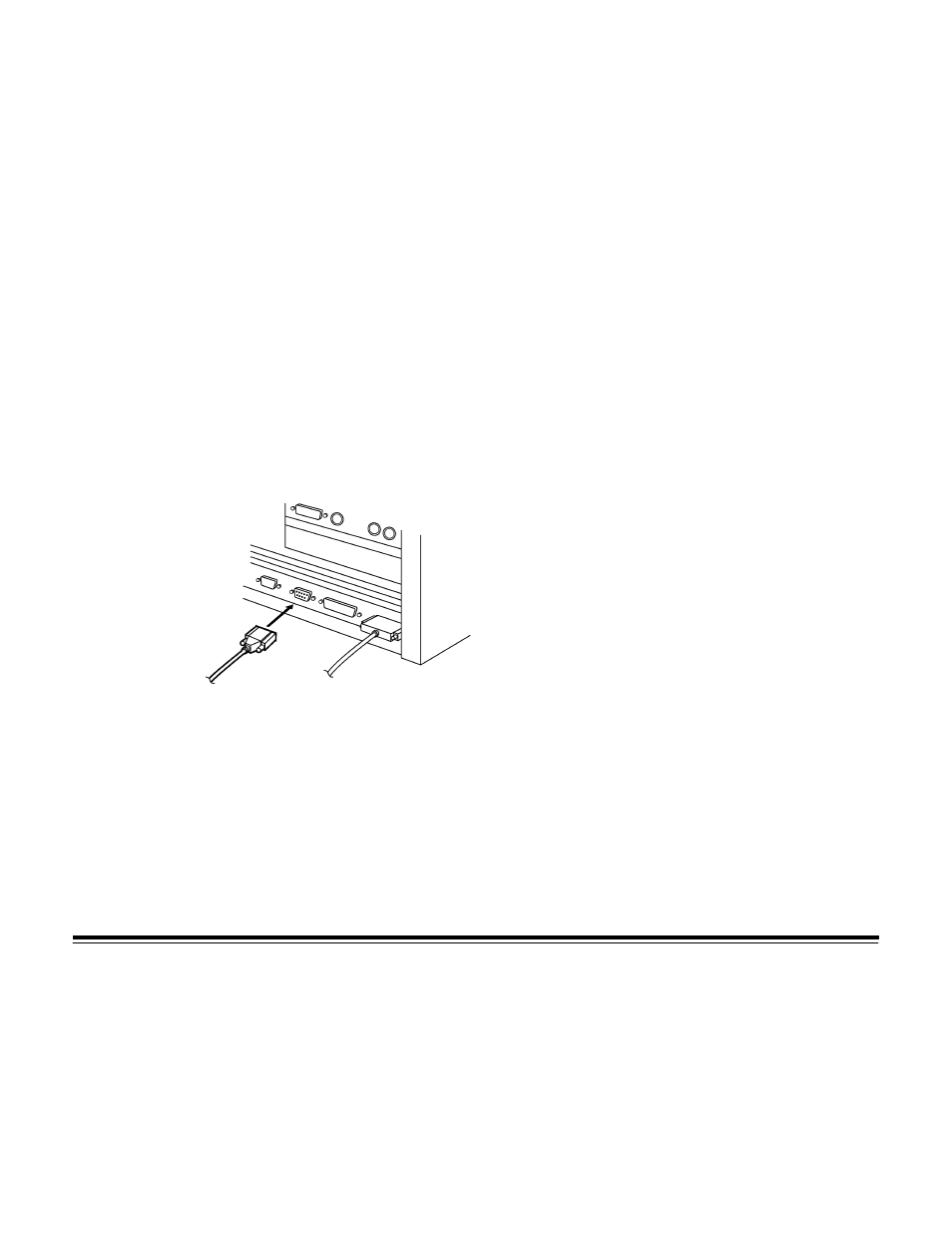

3. Plug the cable’s 9-pin connector into the serial port or the adapter
on the back of your computer.
4. Tighten the connector’s thumbscrews.
5. Lift the rubber tab located on the left side of the camera.
