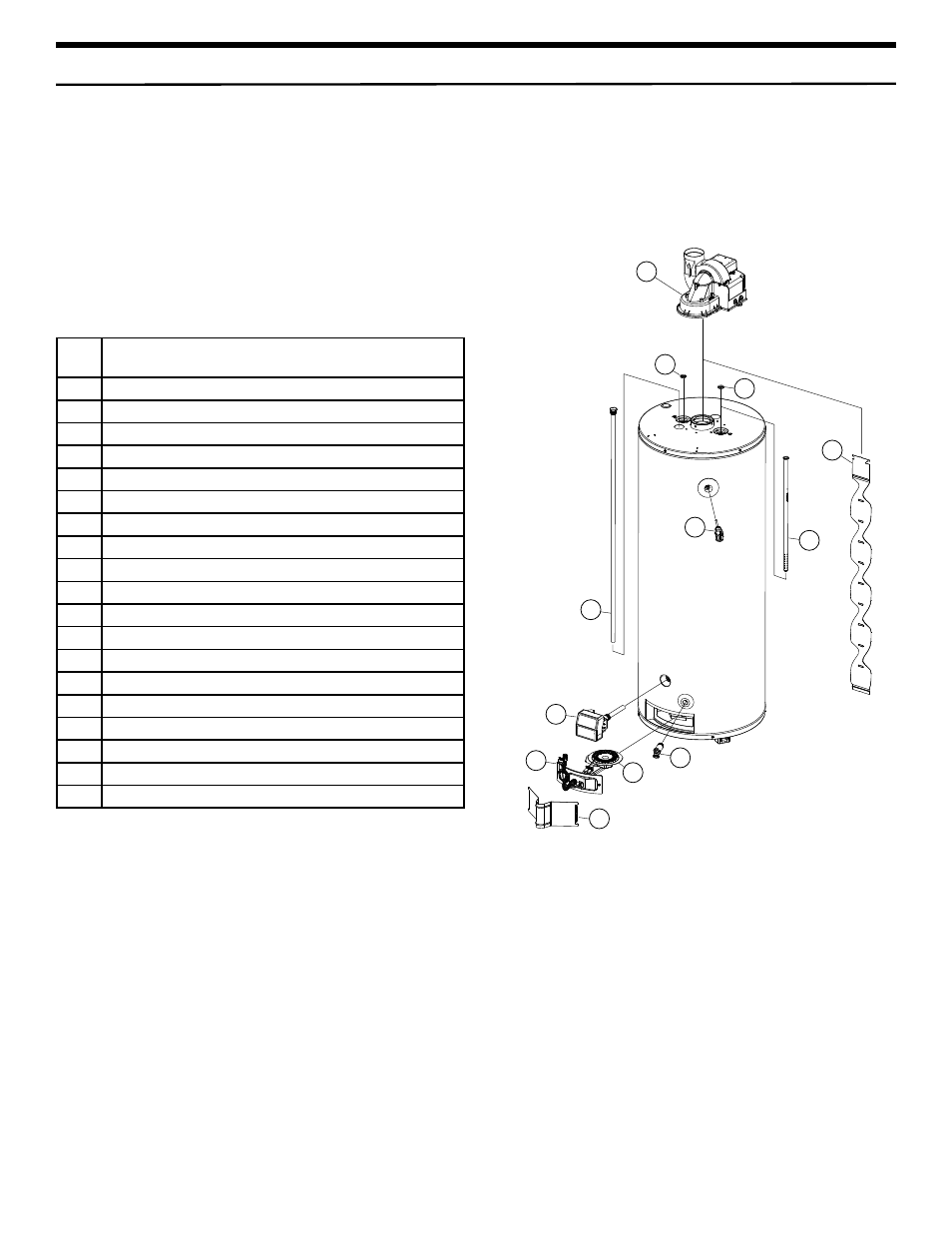

REPAIR PARTS ILLUSTRATION

Item

No.

Parts Description

1

Blower

2

Pressure Switch (Not Pictured)

3

Flue Baffle

4

Heat Trap (Cold)

5

Heat Trap (Hot)

6

Cold Water Dip Tube

7

Anode Rod*

8

Temperature and Pressure Valve

9

Drain Valve

10

Gas Control Valve/Thermostat

11

Hot Surface Igniter (HSI)**

12

Natural Gas Burner

13

L.P. Gas Burner**

14

Manifold Door Assembly - Natural Gas

15

Manifold Door Assembly - L.P. Gas**

16

Two Piece Wire Connector w/Retainer Clip**

17

Manifold Door Gasket**

18

Viewport Assembly**

19

Outer Door

When ordering repair parts always give the following
information:
1. Model, serial and product number
2. Type of gas
3. Item number
4. Parts description

Repair Parts List

* Special anode rod available, see “Anode Rod/Water Odor” section.
** Pictured on next page.
