7
4.
Attach free end of tubing to a manifold adapter.
Secure with large hose clamp or equivalent. Push
the manifold adapter into the right port of the mix
inlet manifold and secure with retaining clip. (See
Figure 2-7).
5.
Place two mix bags into each mix container as
shown in Figure 2-8 (left mix container shows
two bag confi guration).
6.
Connect the bag adapter attached to the left side
of the manifold to the mix bag in the front of the
mix container (nearest the cabinet door). Connect
the bag adapter attached to the right side of the
manifold to the mix bag in the back of the mix
container (see Figure 2-8).
When Using Bag Connection System (BCS) with One
Bag Per Side (optional kit):
1.
Connect 3/8"(9,5mm) ID plastic food grade tubing
to a bag adapter. Secure with hose clamps.
2.
Connect free end of 3/8" (9,5mm) ID plastic
food grade tubing to mix check valve. Observe
direction of check valve fl ow arrow. Secure with
hose clamp. Connect 3/8" (9,5mm) ID plastic
food grade tubing to free end of check valve and
secure with hose clamp.
3. Connect
elbow
fi tting to free end of tubing. Connect
opposite end of elbow to 1/4" ID tan tubing on the
left side of pump head. Secure with hose clamps
(see Figure 2-3 and 2-4).
4.
Place one mix bag into each mix container as
shown in Figure 2-8 (right mix container shows
one bag confi guration).
5.
Connect the bag adapter to the mix bag. (See
Figure 2-8).
3-way Tee
Low Mix
Indicator
Adjustment
Knobs

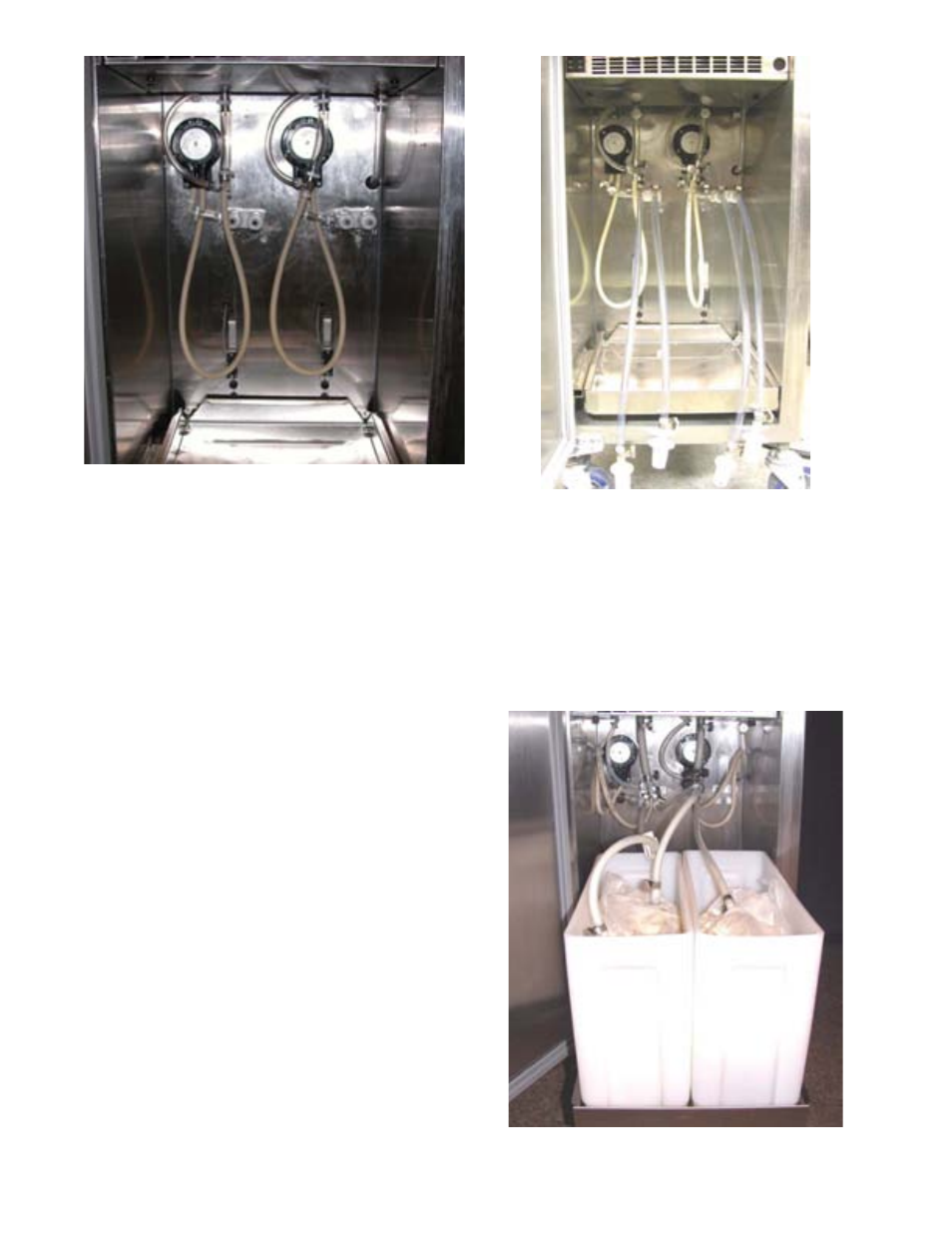

Figure 2-6 Connecting Pump Hose to BCS Manifold
Figure 2-8 Connecting BCS Mix Bags (two bag
connection on left, one bag connection on right)
Figure 2-7 Completed BCS Hose Assembly
