Norgren 3202-1A - Manual

Performance
Application Three-way designed for dashboard operation of truck air system accessories.
Material Zytel, nylon glass filled.
Function When valve is switched off, supply is blocked and delivery is vented. When valve is switched on, supply is
connected to delivery.
Part Number 3202-1A
Rated PSI 150 PSIG maximum
Operating Temperature -10°F (-23.3°C) to 160°F (71.1°C)
Allowed Leakage: On and off leakage 28 SCCM at 100 PSIG.
Equivalent Orifice 1/4" fittings, assuming Cd = .65
Inlet to outlet = .115 diameter or greater
Outlet to exhaust = .080 diameter or greater
Connectors Two 1/4" push-to-connect fittings with rigid tube support. Fittings meet DOT FMVSS 106 50 lb. pull test
when used with SAE J844 nylon tubing.
Weight 25 grams (approximate)
Features

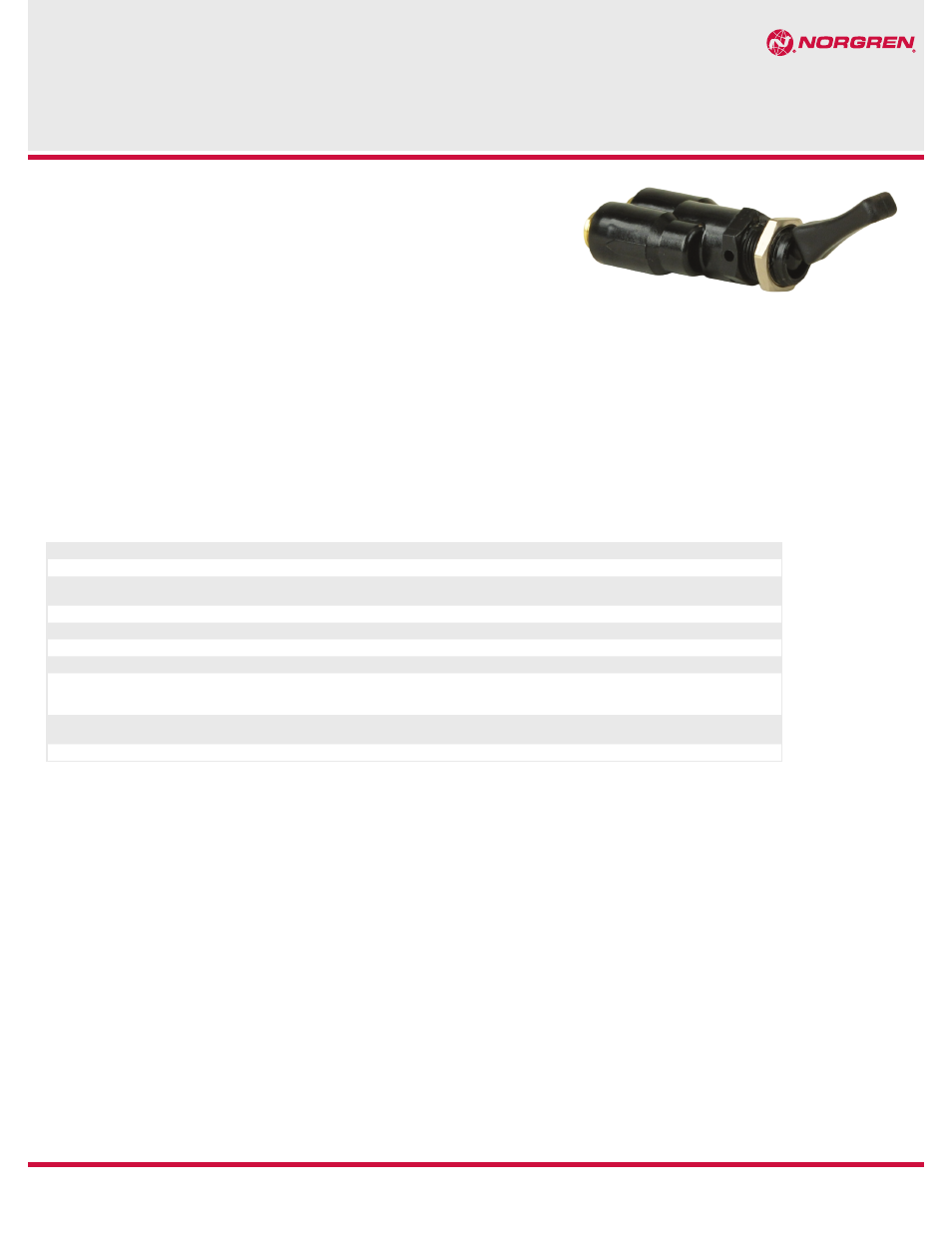

Norgren GT Development 3202-1A toggle
switches are heavy-duty switches with push-
to-connect fittings. These three-way valves are
designed for the dash-board operation of truck air
system accessories.
