See Section ALE-25 for Accessories
ALE-7-4 Littleton, CO USA Phone 303-794-2611 Fax 303-795-9487
R72M
● Excelon design allows in-line or modular installation
● Manifold typically up to six regulators without
booster signal
● Balanced valve design for optimum pressure control
● Push to lock adjusting knob with tamper resistant
accessory
● Modular installations with Excelon 72, 73, and 74
series can be made to suit particular applications

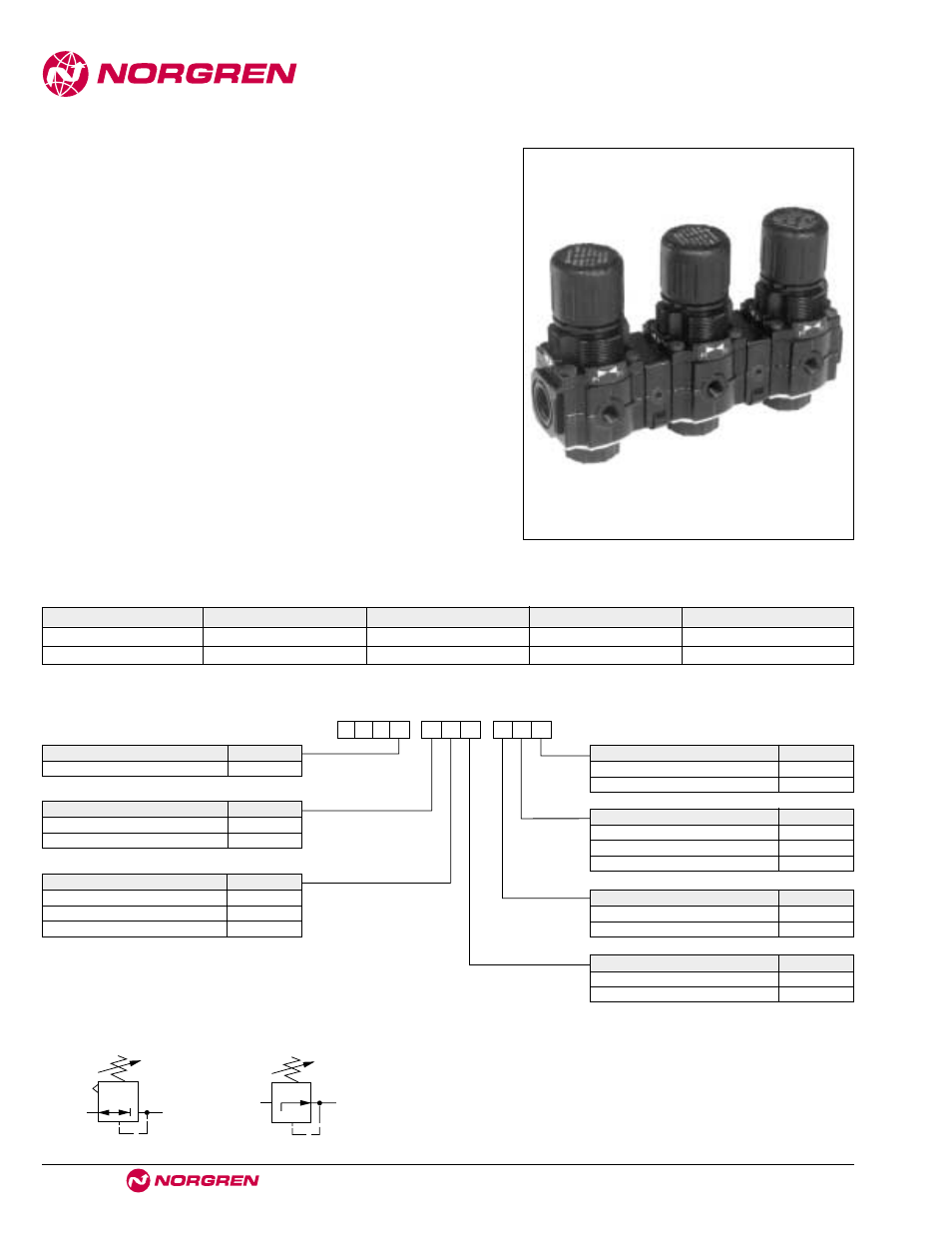

Excelon 72 Manifold Regulator
1/4", 3/8" Port Sizes
ISO Symbols
Relieving Non Relieving
Ordering Information. Models listed include PTF threads, knob adjustment, relieving diaphragm, 5 to 150 psig (0.3 to 10 bar) outlet pressure
adjustment range* with gauge.
† Typical flow with 150 psig (10 bar) inlet pressure, 90 psig (6.3 bar) set pressure and a 15 psig (1 bar) droop from set.
Inlet Port (2) Outlet Port (1) Model Flow † scfm (dm 3 /s) Weight lb (kg)
1/4" 1/4" R72M-2AK-RMG 83 (39) 0.79 (0.36)
3/8" 1/4" R72M-3AK-RMG 83 (39) 0.79 (0.36)
R 7 2 - ★ ★ ★ - ★ ★ ★ ★
Inlet Port Size Substitute
1/4" 2
3/8" 3
Threads Substitute
PTF A
ISO Rc taper B
ISO G parallel G
Diaphragm Substitute
Relieving R
Non relieving N
Gauge Substitute
With G
Without N
* Outlet pressure can be adjusted to
pressures in excess of, and less than, those
specified. Do not use these units to control
pressures outside of the specified ranges. Adjustment Substitute
Knob K
T-bar T
Alternative Models
Outlet Pressure Adjustment Range* Substitute
5 to 30 psig (0.3 to 2 bar) C
5 to 60 psig (0.3 to 4 bar) F
5 to 150 psig (0.3 to 10 bar) M
Type Substitute
Manifold M
