R40 and R41 Pilot Regulators
ALE-8-3
All Dimensions in Inches (mm)
Littleton, CO USA Phone 303-794-2611 www.norgren.com
Technical Data
Fluid: Compressed air
Inlet pressure range: 10 psig (0.7 bar) to 450 psig (31 bar) maximum*
* For best performance, inlet pressure should be at least 10 psig (0.7 bar) greater than the desired
regulated pressure, but must not exceed the specified maximum.
Operating temperature: 0° to 175°F (-20° to 80°C) **
** Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C).
Typical flow with 100 psig (7 bar) inlet pressure, 90 psig (6.3 bar) set pressure and
15 psig (1 bar) droop from from set: 6.4 scfm (3 dm
3 /s)
Maximum bleed rate at 50 psig (3.5 bar) outlet pressure: 0.25 scfm (0.12 dm 3 /s)†
†Maximum bleed rate occurs under dead-end (no flow) conditions.
Pilot ports: 1/4" PTF, ISO G, or ISO Rc
R41 feedback port: 1/8" PTF, ISO G, or ISO Rc
Materials
Body, bonnet: Aluminum
Valve: Teflon
Elastomers: Nitrile

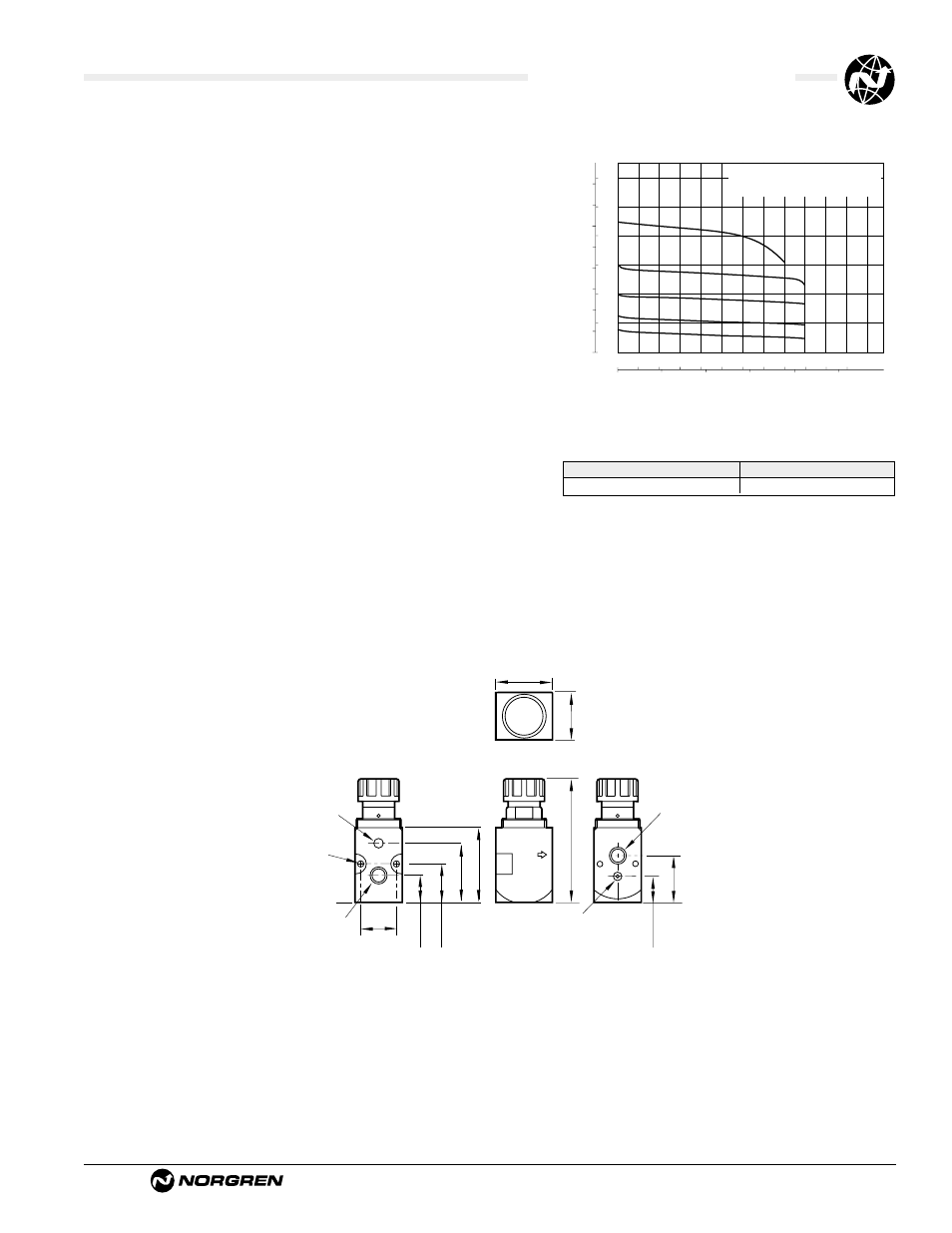

Typical Performance Characteristics
FLOW CHARACTERISTICS
0 1 2 3 4 5 dm 3 /s
AIR FLOW
0 2 4 6 8 10 scfm
OUTLET PRESSURE
8
6
4
2
0
bar
100
80
60
40
20
0
psig PORT SIZE: 1/4 "
INLET PRESSURE: 100 psig (7 bar)
RANGE: 5 to 125 psig (0.3 to 8.6 bar)
1/8" Feedback
Port (R41 only)
0.27 (7) Dia.
(2 places) †
1/4" Pilot Port (In)
2.5 (63)
2.0 (51)
1/16" Inlet ††
5.2 (133)
2.01 (51)
1.14 (29)
OUT
1/4" Pilot
Port (Out)
1.63 (42)
1.57
(40)
2.32 (59)
3.19 (81)
1.14 (29)
† Mounting holes for subbase mounting.
†† Air inlet for subbase mounting.
Panel mounting hole diameter: 1.89" (48 mm)
Maximum panel thickness: 0.13" (3 mm)
Service Kits
Type Part number
R40, R41 5945-41
Service kit contains diaphragm, valve spring, guide bushing, valve,
valve spring, filter screen, and all o-rings.
