See Section ALE-24 for Accessories
ALE-10-2
Littleton, CO USA
Phone 303-794-2611
www.norgren.com
R44
●
Underwriters Laboratories, Inc. listed (file number
SA1089) for use with air, carbon dioxide, and inert
gases. For use with other gases, including oxygen,
consult Norgren.
●
Compact design
●
Brass, zinc, or aluminum bodies with plastic bonnet;
brass body also available with brass bonnet
●
Plastic bonnet equipped with low torque, non-rising
pressure adjusting knob. Snap action knob locks
pressure setting when pushed in. Brass bonnet
equipped with pressure adjusting screw
●
Non-relieving and relieving models. Relieving models
allow reduction of outlet pressure even when the
system is dead-ended
●
Can be disassembled without the use of tools or
removal from the air line

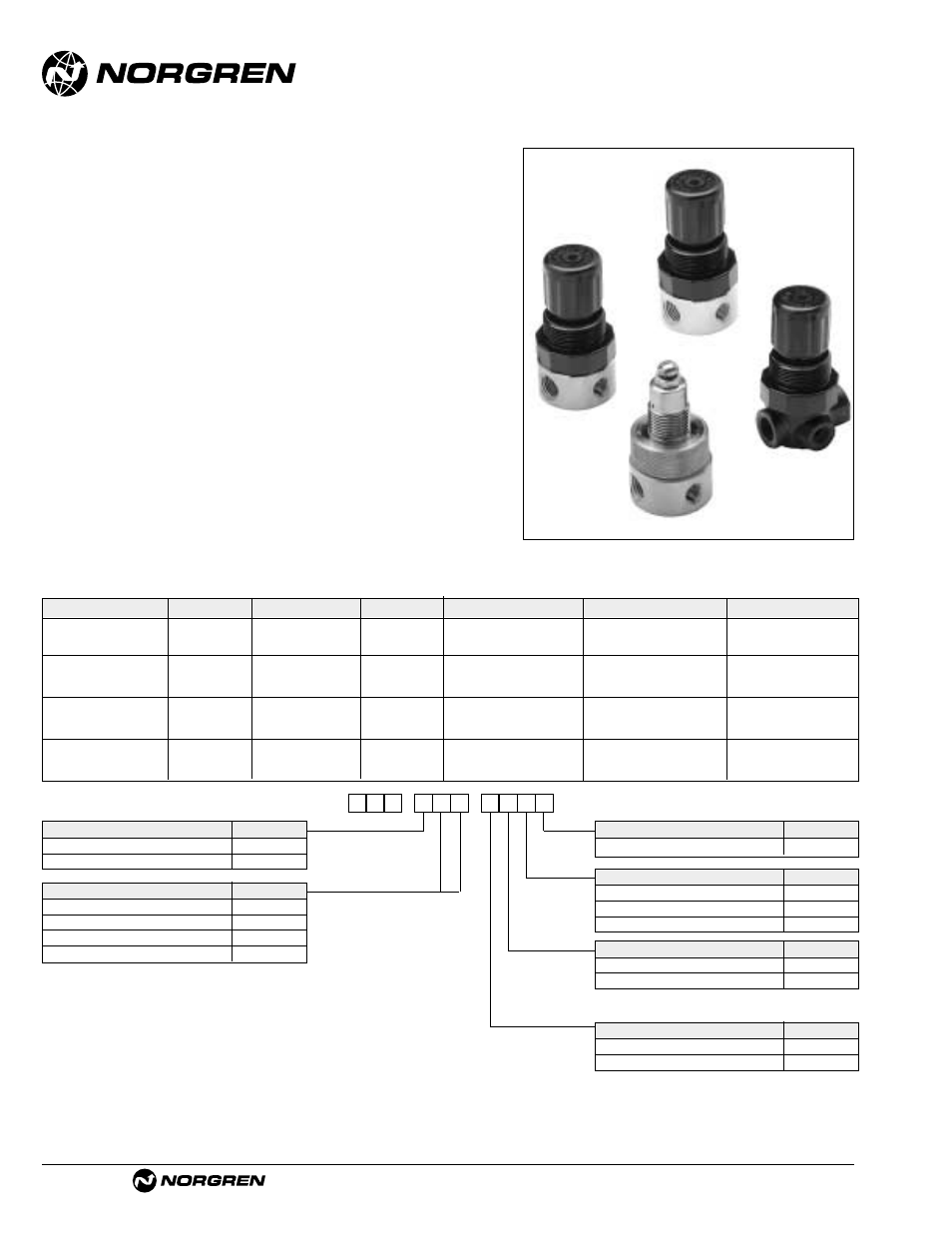

UL Listed Miniature Pressure Regulator
Compressed Air, Carbon Dioxide, Inert Gases
1/8" or 1/4" PTF Port Sizes
Alternative Models
4
R
4
★ ★ ★ ★
★
-
★ ★
-
Port Size
Substitute
1/8"
1
1/4"
2
Threads
Substitute
PTF
A
Outlet Pressure Adjustment Range†
Substitute
1 to 10 psig (0.1 to 0.7 bar)
A
5 to 50 psig (0.3 to 3.5 bar)
E
5 to 100 psig (0.3 to 7 bar)
K
Gauges
Substitute
With
G
Without
N
Diaphragm
Substitute
Relieving
R
Non relieving
N
Body/Bonnet
Substitute
Aluminum/Plastic
00
Brass/Plastic
21
Zinc/Plastic
22
Brass/Brass
33
*
Approximate flow with 100 psig (7 bar) inlet pressure, 90 psig (6.3 bar) set pressure
and a 15 psig (1 bar) droop from set.
†
Outlet pressure can be adjusted to pressures in excess of, and less than, those
specified. Do not use these units to control pressures outside of the specified ranges.
Ordering Information.
Models listed include PTF threads, relieving diaphragm, 5 to 100 psig (0.3 to 7 bar) outlet pressure adjustment range†,
and without gauge.
Body
Bonnet
Medium
Port PTF
Model
Flow
*
scfm (dm
3
/s) Weight lb (kg)
Aluminum
Plastic
Air, inert
1/8"
R44-100-RNKA
10 (4.7)
0.23 (0.11)
gases
1/4"
R44-200-RNKA
10 (4.7)
0.23 (0.11)
Brass
Plastic
Air, CO
2
,
1/8"
R44-121-RNKA
10 (4.7)
0.45 (0.21)
inert gases
1/4"
R44-221-RNKA
10 (4.7)
0.45 (0.21)
Zinc
Plastic
Air, inert
1/8"
R44-122-RNKA
10 (4.7)
0.31 (0.14)
gases
1/4"
R44-222-RNKA
10 (4.7)
0.31 (0.14)
Brass
Brass
Air, CO
2
,
1/8"
R44-133-RNKA
10 (4.7)
0.54 (0.25)
inert gases
1/4"
R44-233-RNKA
10 (4.7)
0.54 (0.25)
