See Section ALE-24 for Accessories
ALE-16-12 Littleton, CO USA Phone 303-794-2611 www.norgren.com
B38
● Compact instrument units with high performance
● Stable regulation with temperature compensation
● Excellent flow and regulation characteristics
● Panel Mounting facility
● Designed for use in corrosive environments
● Metallic parts meet NACE Standard MR-01-75*
● Applications include marine environments, oil and
gas production, chemical and food processing,
medical analysis
● Relieving or non relieving models. Relieving models
allow reduction of outlet pressure even when the
system is dead-ended
* National Association of Corrosion Engineers (NACE) MR-01-75 defines requirements for
sulphide stress cracking resistant materials used in well-head and other corrosive environments.

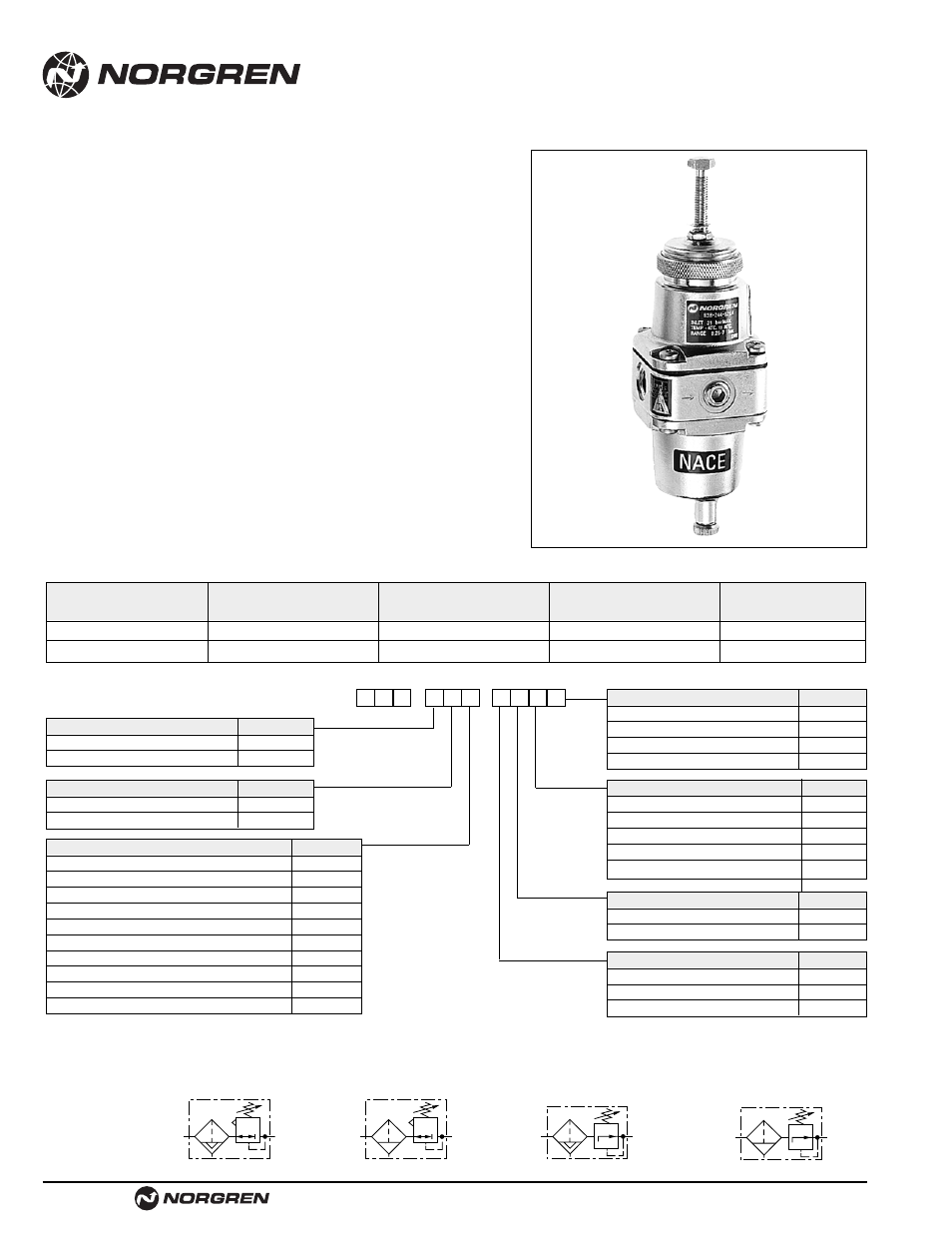

Filter/Regulator Stainless Steel Model
1/4 or 1/2” PTF
ISO Symbols
Automatic Drain, Relieving Automatic Drain, Non Relieving Manual Drain, Relieving Manual Drain, Non Relieving
Outlet pressure range
Port Size Model Number psig (bar) Flow** scfm (dm 3 /s) Weight kg (lbs)
1/4” PTF B38-240-B1KA 4 to 100 (0.3 to 7) 15 (7) 3.11 (1.4)
1/2” PTF B38-440-M1LA 4 to 125 (0.3 to 9) 106 (50) 4.75 (2.2)
Ordering Information. Models listed are relieving type with manual drain, 5µm element, and PTF threads. A gauge is not included.
** Typical flow with 175 psig (12 bar) inlet pressure, 115 psig (8 bar) set pressure and 15 psig (1 bar) droop from set.
Alternative Models
Port Size Substitute
1/4” PTF 2
1/2” PTF 4
Materials Substitute
Stainless steel, nitrile elastomers 4
Stainless steel, Viton elastomers 5 †
Threads Substitute
PTF A
ISO Rc taper B
ISO G parallel D
API.LP.INT K
Outlet Pressure Adjustment Ranges* Substitute
0.6 to 30 psig (0.04 to 2 bar)
C
1 to 60 psig (0.07 to 4 bar) F
3.6 to 100 psig (0.25 to 7 bar) K †
4 to 125 psig (0.3 to 9 bar) L ††
7.2 to 150 psig (0.5 to 10 bar) M †
Element Substitute
5 µm 1
25 µm 2
Bowl/Drain Substitute
Long bowl with automatic drain A
Short bowl with manual drain B
Long bowl with manual drain M
* Outlet pressure can be adjusted to pressures in excess of, and less than, those specified.
Do not use these units to control pressures outside of the specified ranges.
† 1/4” ported units only.
†† 1/2” ported units only.
8 3 B
★ ★ ★ ★ ★ ★ ★ - -
Diaphragm Substitute
Relieving 0
Non relieving 1
Relieving, bracket and nut 2
Non relieving, bracket and nut 3
Relieving with nut 4
Non relieving with nut 5
Relieving with handwheel and nut 6
Non relieving with handwheel and nut 7
Relieving with handwheel, bracket and nut 8
Non relieving with handwheel, bracket and nut 9
