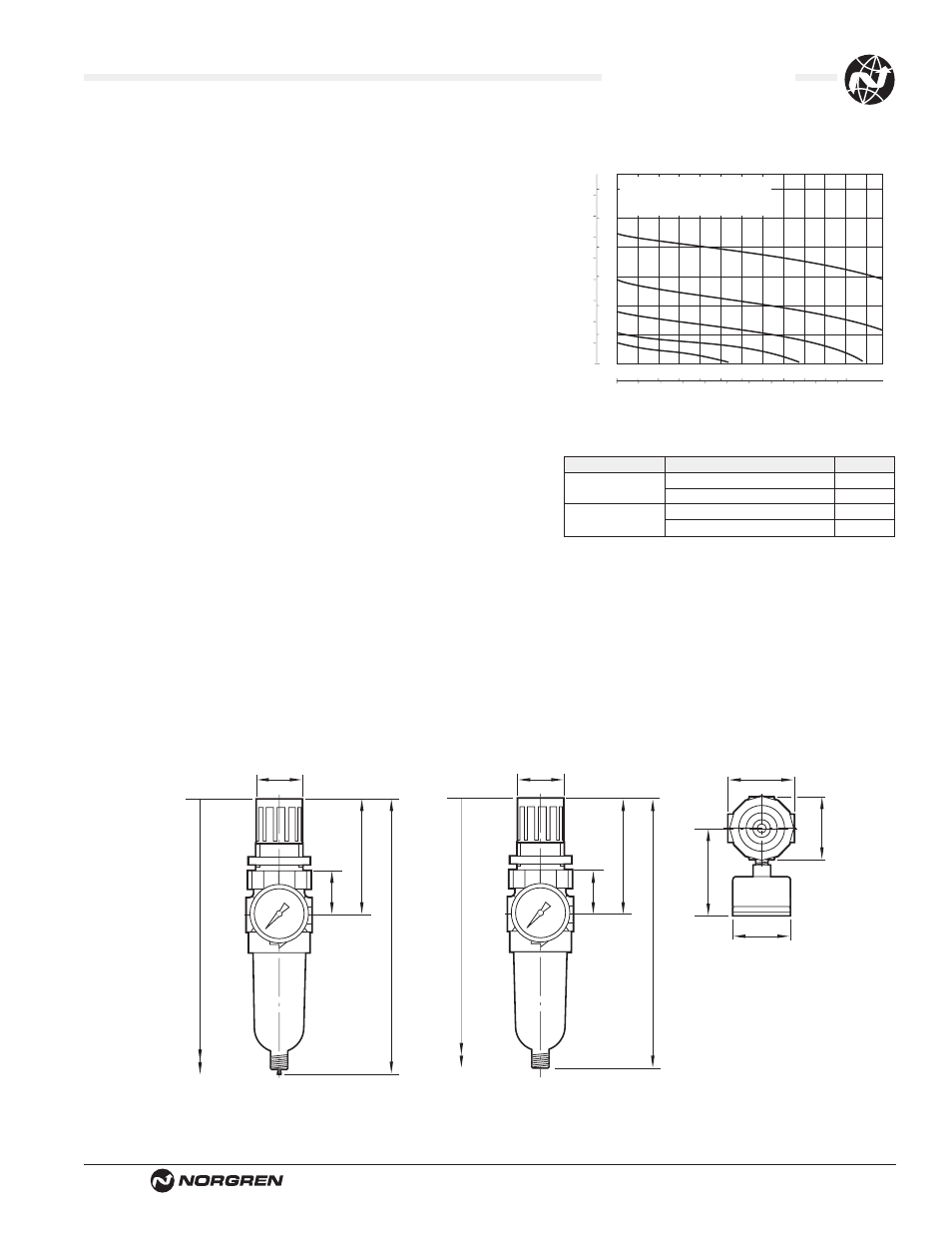

B07 Filter/Regulators
Littleton, CO USA Phone 303-794-2611 www.norgren.com ALE-12-3
All Dimensions in Inches (mm)
Automatic Drain
Manual Drain
2
.1
3
(5
4
)
1.63 (41)
1.50 (38)
1
.5
0
(3
8
)
8
.4
1
(2
1
4
)*
*
1
.1
2
(2
8
) 2
.6
7
(6
8
)
6
.4
4
(1
6
4
)
1.1 (28)
8
.2
6
(2
1
0
)*
*
1
.1
2
(2
8
) 2
.6
7
(6
8
)
6
.2
9
(1
6
0
)
1.1 (28)
** Minimum clearance to remove bowl
Panel mounting hole diameter 1.19" (30 mm)
Panel thickness: 0.25" (6 mm)
PORT SIZE: 1/4"
ELEMENT: 40 µm
INLET PRESSURE: 150 psig (10 bar g)
RANGE: 5 to 100 psig (0.3 to 7 bar)
FLOW CHARACTERISTICS
0 2 4 6 8 10 dm 3 /s
AIR FLOW
0 4 8 12 16 20 24 scfm
O
U
T
L
ET
PR
ESSU
R
E
8
6
4
2
0
b
a
r
g
100
80
60
40
20
0
p
s
ig
Typical Performance Characteristics
Service Kits
Item Type Part number
Service kit
Relieving models, 5 µm element 3820-12
Non relieving models, 5 µm element 3820-11
Replacement drains Manual
773-03
Automatic 3654-02
Service kit includes slip ring, diaphragm, valve seat with o-ring,
valve, valve spring, element, element gasket, and bowl o-ring.
Technical Data
Fluid: Compressed air
Maximum pressure
Transparent bowl: 150 psig (10 bar)
Metal bowl: 250 psig (17 bar)
Operating temperature*
Transparent bowl: 30° to 125°F (-34° to 50°C)
Metal bowl: -30° to 150°F (-34° to 65°C)
* Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)
Particle removal: 5 µm or 40 µm filter element
Air quality: Within ISO 8573-1, Class 3 and Class 5 (particulates)
Typical flow at 100 psig (7 bar) inlet pressure, 90 psig (6.3 bar) set pressure and a
droop of 15 psig (1 bar) from set
1/8" Ports: 13 scfm (6.2 dm
3 /s) with 5 µm element
1/4" Ports: 14 scfm (6.5 dm 3 /s) with 5 µm element
Nominal bowl size: 1 fluid ounce (31 ml)
Gauge ports:
1/8" PTF with PTF main ports
1/8" ISO Rc with ISO Rc main ports
1/8" ISO Rc with ISO G main ports
Drain connection: Will fit 1/8-27 and 1/8-28 pipe thread
Automatic drain operation: Spitter type drain operates momentarily when a rapid
change in air flow occurs or when the supply pressure is reduced.
Materials:
Body: Zinc
Bonnet: Acetal
Valve: Brass/nitrile
Valve seat: Acetal
Bowl
Transparent: Polycarbonate
Metal: Zinc
Element: Sintered polypropylene
Elastomers: Nitrile
