See Section ALE-24 for Accessories
Littleton, CO USA Phone 303-794-2611 www.norgren.com

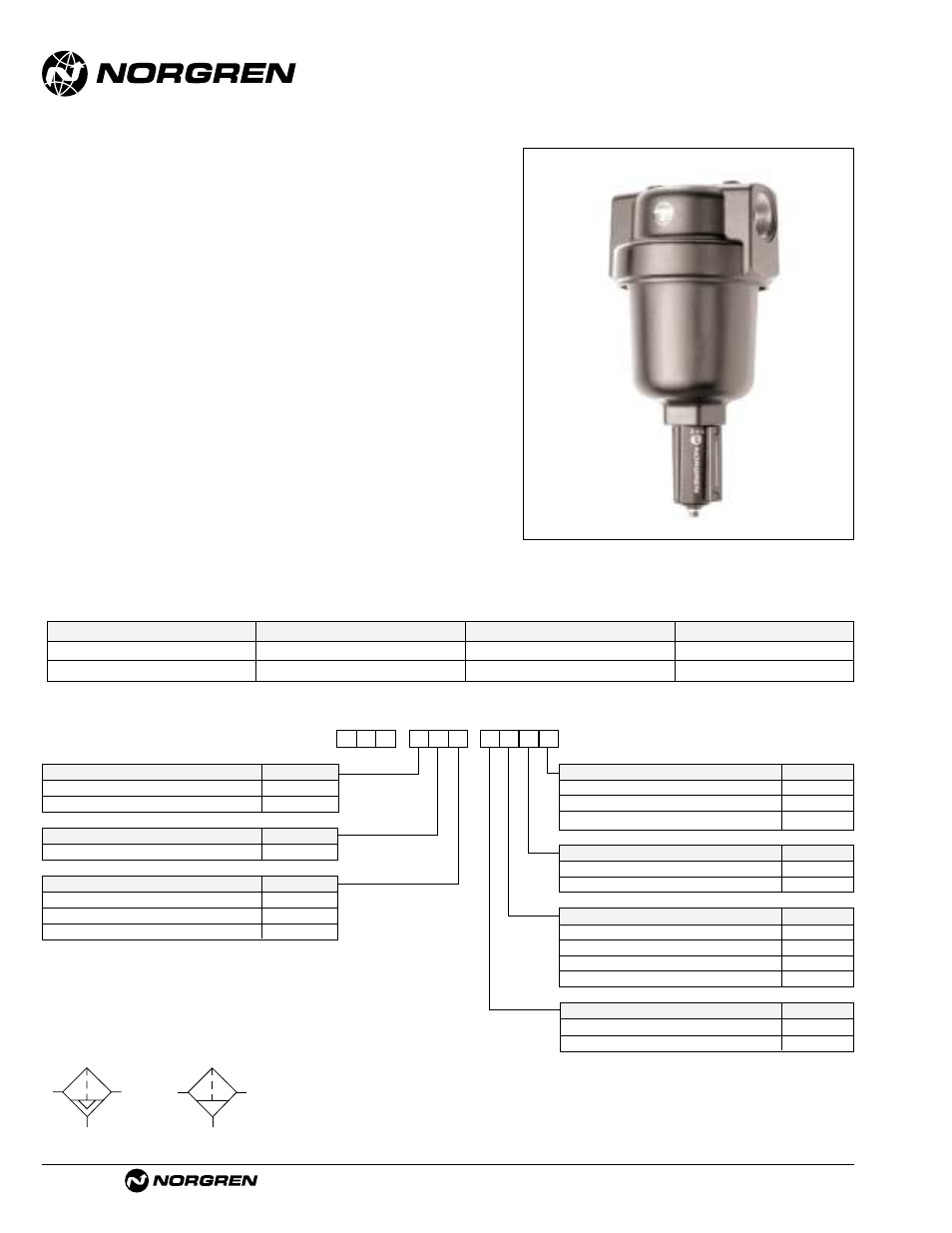

F18
● Protects air operated devices by removing liquid and
solid contaminants
● Highly visible, prismatic liquid level indicator lens
● Can be disassembled without removal from the air
line
● Optional visual service indicator turns from green to
red when the filter element needs to be cleaned or
replaced
● Optional electrical service indicator also available
18 Series General Purpose Filter
1-1/2" and 2" Port Sizes
ALE-1-16
Alternative Models
- ★ ★ ★ ★ ★ ★ - 1 ★ F 8
Drain Substitute
Automatic A
Manual 1/4 turn M
Bowl Substitute
Metal with sight glass D
Metal M
Port Size Substitute
1-1/2" B
2" C
Element Substitute
5 µm 1
25 µm 2
40 µm 3
100 µm 4
Option Substitute
Not applicable 0
Service Indicator Substitute
Without 0
With pneumatic 1
With electrical 4
Ordering Information. Models listed include automatic drain, 40 µm element, metal bowl with sight glass, and PTF threads.
Port Size Model Numbers Flow scfm (dm 3 /s) * Weight lbs (kg)
1-1/2" F18-B00-A3DA 1400 (661) 14.90 (6.76)
2" F18-C00-A3DA 1400 (661) 14.65 (6.65)
* Typical flow with a 40 µm element at 90 psig (6.3 bar) inlet pressure and 5 psig (0.35 bar) pressure drop.
Threads Substitute
PTF A
ISO Rc taper B
ISO G parallel G
ISO Symbols
Auto Drain Manual Drain
