Norgren F39 Series User Manual
Norgren Hardware

See Section ALE-24 for Accessories
Littleton, CO USA
Phone 303-794-2611
www.norgren.com

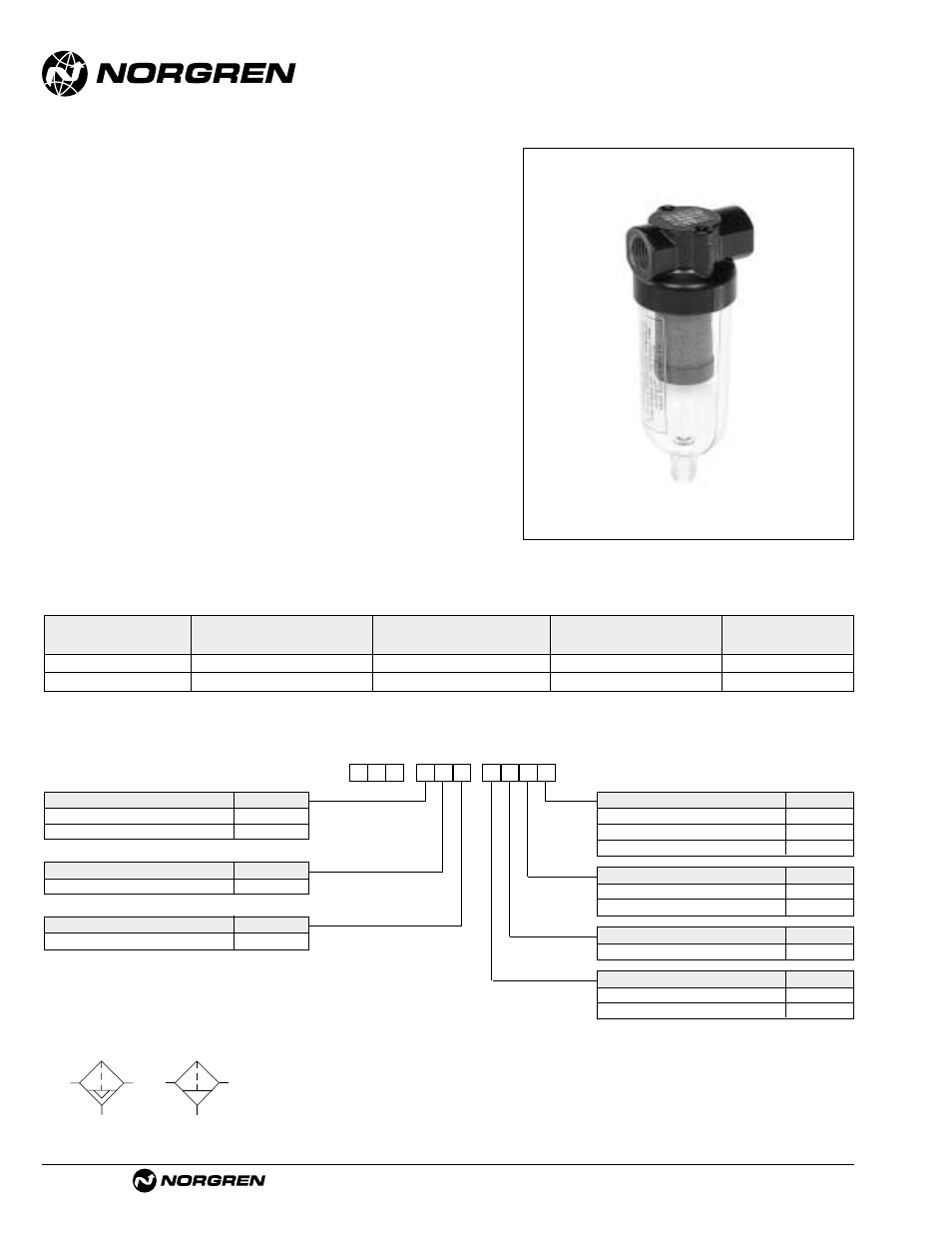

F39
●
Compact design
●
High efficiency oil and particle removal
●
Screw-on bowl reduces maintenance time
●
Can be disassembled without the use of tools or
removal from the air line
Miniature Series 07 Oil Removal
(Coalescing) Filter 1/8" and 1/4" Port Sizes
ALE-2-2
Saturated Flow*
Dry Flow
Port Size
Model Numbers
Flow scfm (dm
3
/s)
Flow scfm (dm
3
/s)
Weight lbs (kg)
1/8"
F39-100-A0TA
6.0 (2.8)
11.2 (5.3)
0.28 (0.13)
1/4"
F39-200-A0TA
6.4 (3.0)
12.2 (5.8)
0.28 (0.13)
Ordering Information.
Models listed include PTF threads, automatic drain and transparent bowl.
* Maximum flow at 90 psig (6.3 bar) inlet pressure to maintain stated oil removal performance.
Alternative Models
Port Size
Substitute
1/8"
1
1/4"
2
Threads
Substitute
PTF
A
ISO Rc taper
B
ISO G parallel
G
Option
Substitute
Not applicable
0
Bowl
Substitute
Transparent
T
Metal
M
Option
Substitute
Not applicable
0
Element
Substitute
Coalescing
0
Drain
Substitute
Automatic
A
Manual
M
-
★
★
★
★
★ ★
-
3
★
F
9
Automatic and
Semi Automatic Drain
Manual Drain
ISO Symbols
