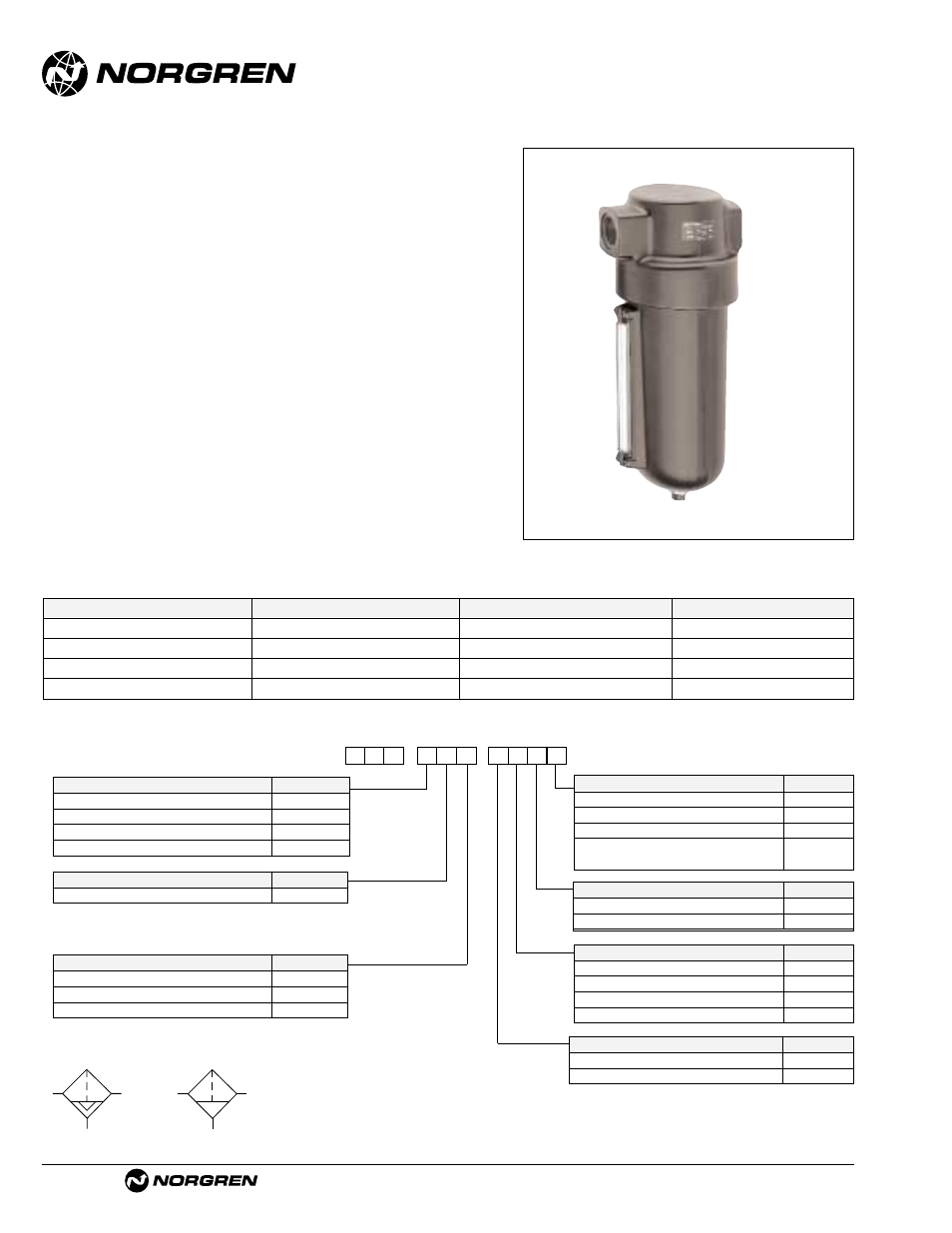

F17
● Protects air operated devices by removing liquid and
solid contaminants from compressed air
● Screw-on bowl reduces maintenance time
● Can be serviced without the use of tools or removal
from the air line
● Optional visual service indicator turns from green to
red when the filter element needs to be cleaned or
replaced
● Optional electrical service indicator also available
17 Series General Purpose Filter
3/4", 1", 1-1/4", 1-1/2" Port Sizes
ALE-1-14
Ordering Information. Models listed include automatic drain, 40 µm element, metal bowl with sight glass, and PTF threads.
Port Size Model Numbers Flow scfm (dm 3 /s)* Weight lbs (kg)
3/4" F17-600-A3DA 325 (153) 4.26 (1.93)
1" F17-800-A3DA 425 (201) 4.15 (1.88)
1-1/4" F17-A00-A3DA 425 (201) 4.39 (1.99)
1-1/2" F17-B00-A3DA 425 (201) 4.30 (1.95)
* Typical flow with a 40 µm element at 90 psig (6.3 bar) inlet pressure and 5 psig (0.35 bar) pressure drop.
Alternative Models
- ★ ★ ★ ★ ★ ★ - 1 ★ F 7
Drain Substitute
Automatic A
Manual M
Bowl Substitute
1 quart (1 liter) metal with sight glass D
1 quart (1 liter) metal M
Port Size Substitute
3/4" 6
1" 8
1-1/4" A
1-1/2" B
Element Substitute
5 µm 1
25 µm 2
40 µm 3
75 µm 4
Option Substitute
Not applicable 0
Service Indicator Substitute
With (visual) 1
With (electrical) 4
Without 0
Threads Substitute
PTF A
ISO Rc taper B
BSPP (1-1/2" ported units only) C
ISO G parallel (not available with G
1-1/2" ported units)
ISO Symbols
Auto Drain Manual Drain
