BL64
Technical Data
Medium:
Compressed Air
Maximum pressure:
17 bar metal bowl
10 bar guarded transparent bowl
Operating Temperature:
-20°C* to +80°C metal bowl
-20°C *to +50°C guarded transparent bowl
* Consult our technical service for use below +2°C
Gauge Ports:
Rc 1 ⁄
8
Maximum flow with 10 bar inlet pressure, 6,3 bar outlet pressure
and pressure drop of 1 bar:
37 dm 3 /s
Filter-Regulator
Filter Element:
40 µm nominal standard
5 µm nominal optional
Recommended Regulating Pressure Ranges†:
0,3 – 10 bar standard
0,3 – 4 bar optional
2 – 16 bar optional
† Can be adjusted to zero bar outlet and, generally, to pressures in excess of those specified.
Lubricator
Start point at 6,3 bar:
1,5 dm 3 /s
Nominal Bowl capacity:
0,2 litres standard
Materials:
Aluminium bowl standard, guarded polycarbonate bowl optional. Zinc alloy
body and yoke. Synthetic rubber elastomeric materials. Grilamid prismatic
sight glass lens standard. Pyrex sight glass optional for metal bowl.
Filter-Regulator: Aluminium bonnet. Sintered plastic filter element.
Lubricator: Polycarbonate sight dome.
Ordering Information
To order a standard Olympian Plus,
filter-regulator, lubricator combination quote
model number from table overleaf.
For non-standard models substitute appropriate
digits as instructed.
● Olympian Plus plug in design
● High Efficiency water and particle removal
● Quick release bayonet bowls
● High visibility prismatic sight glass*
● Push to lock adjusting knob with tamper resistant
option
● Constant oil density output with varying flow
* UK and other patents pending

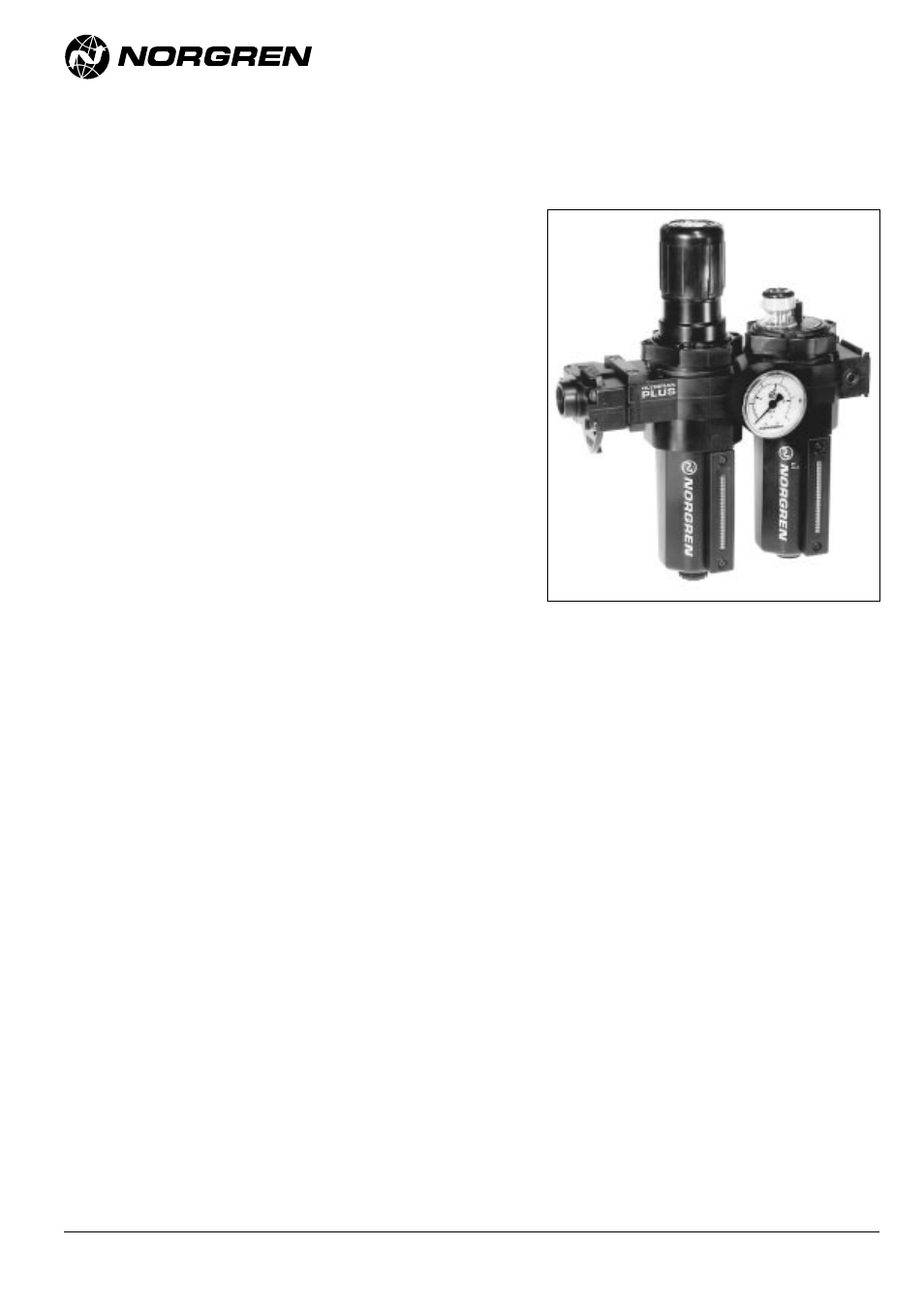

Olympian Plus Combinations
Filter-Regulator and Lubricator
G 1 ⁄
4
to G 3 ⁄
4
