Toughened nut sensor sns12, Features, M12 nut detector system

3.15 (80)
.31 (8)
2.20 (55.9)
1.85
(47)
2X .04 (1)
.34 (8.6)
.32 (8.1)
NOTE 5
NOTE 1
NOTE 2
NOTE 3
NOTE 4
.58 (14.7)
Our policy is one of continued research and development. We therefore reserve the right to amend,
without notice, the specifications given in this document.
© Norgren Automation Solutions, LLC 2013
001 25962 13232SP 12/4/12

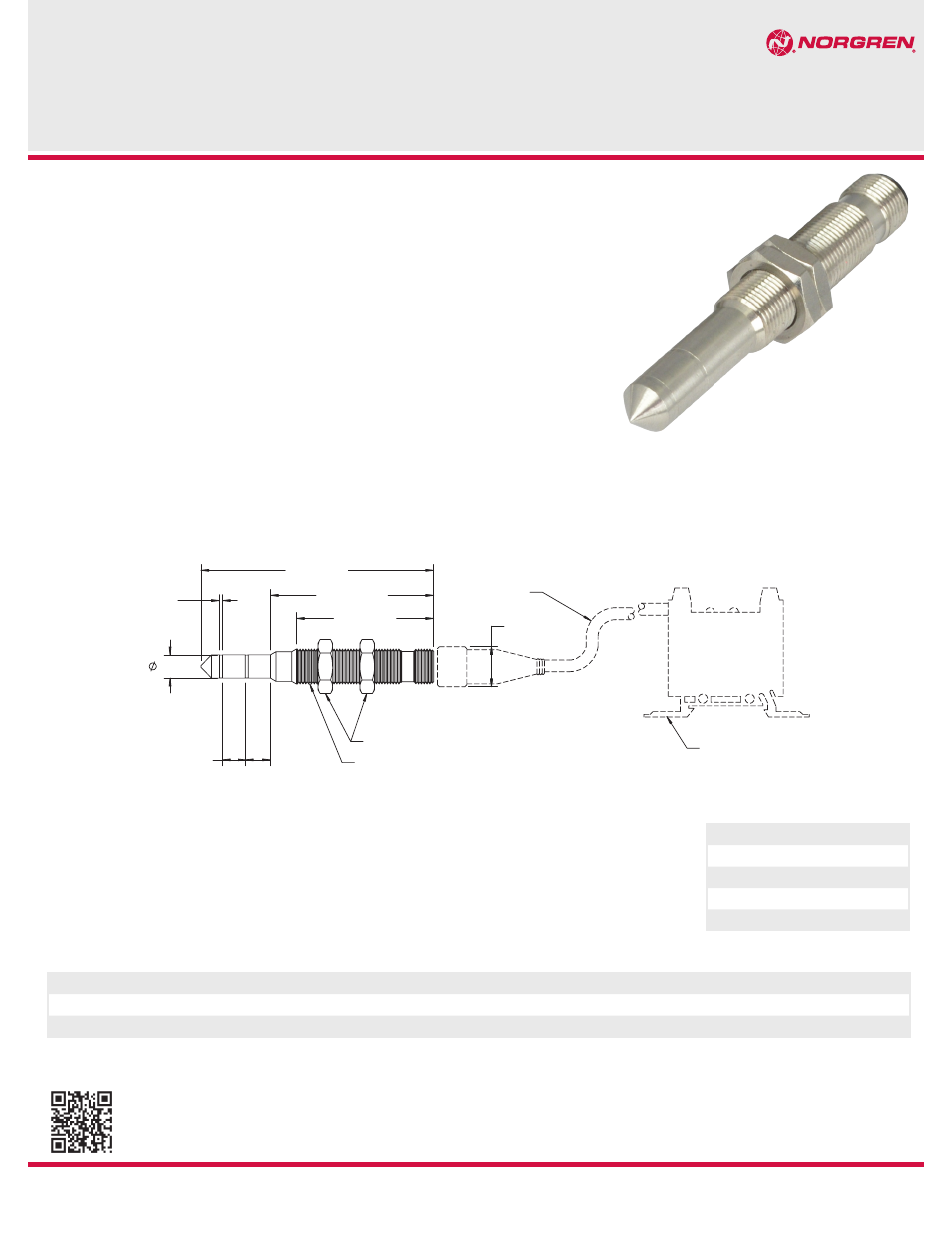

Toughened Nut Sensor
SNS12
Features
For heavy duty applications with
sensor tip radial loads up to 60 lbs.
For use in weld applications
Immune to weld fields
Resistant to weld slag
Can be used to detect thread presence
Minimum nut thickness is
10.0 mm (.39")
Maximum blank thickness is
2.5mm (.10")
Note 1
2X M12X 1.0
Note 2
2X M12 JAM NUTS
Note 3
SOLD SEPERATELY
Note 4
SOLD SEPERATELY
Note 5
SENSING AREA
Sensor
Monitor
Cable
Weight
SNS12
SMH36012 (NPN)
SCF12060 2m (6ft)
.082 lbs / 37 gm
SMH37012 (PNP)
SCF12160 2m (6ft) (Angled)
M12 Nut Detector System
Sensor connector:
4-pin (male) 12mm (micro)
connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical Data
SEE ENGINEERING ADVANTAGE
Scan with a QR code reader – www.norgren.com/automationsolutions
Tel: 734-429-4989
Dimensions in. (mm)
