Norgren SNS05 User Manual

Toughened nut sensor sns05, Features, M5 nut detector system

.16 (4)

2.70 (68.6)

2.15 (54.6)

1.85 (47)

2X .02 (0.5)

.11 (2.8)

.23 (5.8)

NOTE 5

NOTE 1

NOTE 2

NOTE 4

NOTE 3

Our policy is one of continued research and development. We therefore reserve the right to amend,

without notice, the specifications given in this document.

REL 25962 13822SP 12/4/12

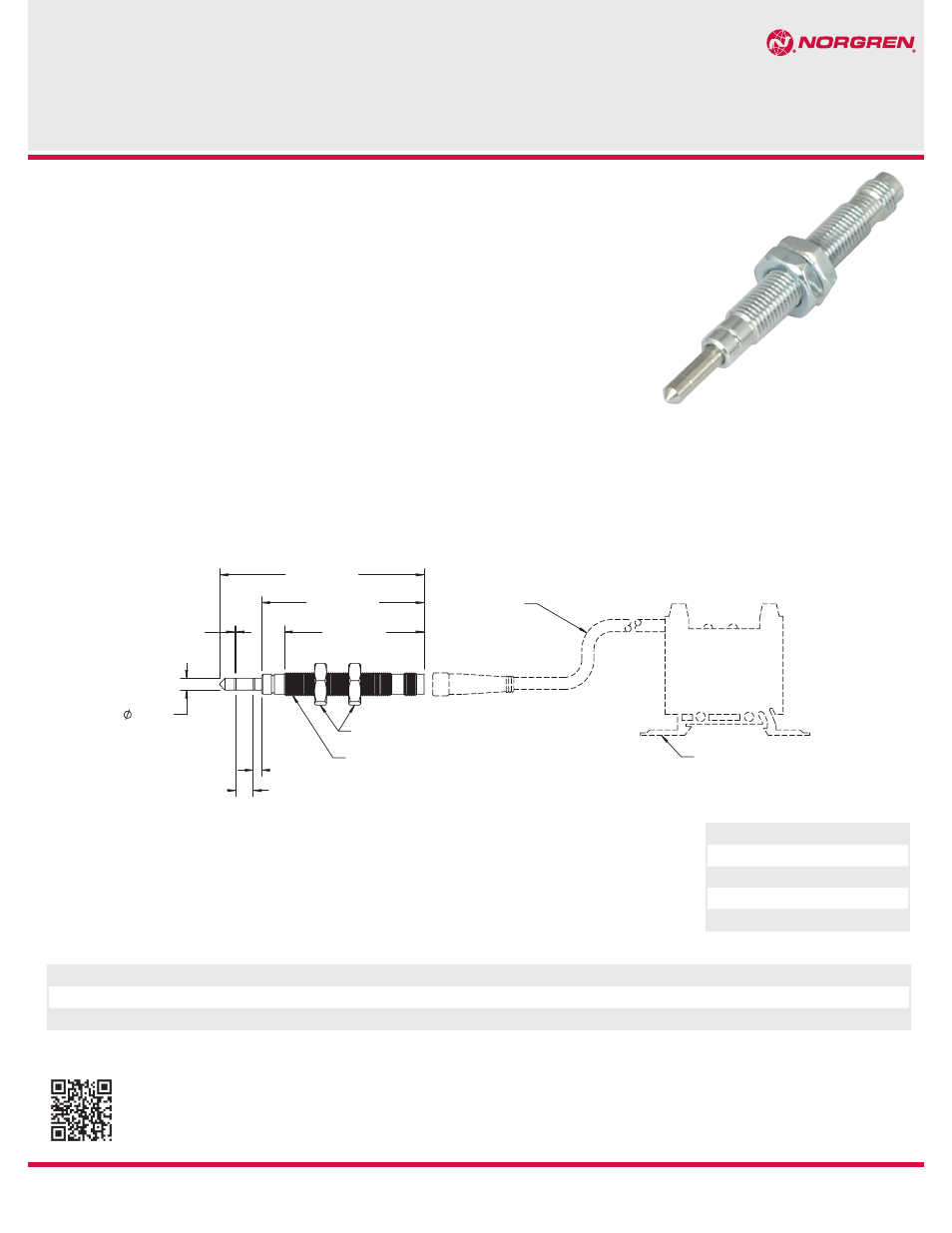

Toughened Nut Sensor

SNS05

Features

For heavy duty applications with
sensor tip radial loads up to 38 lbs.
For use in weld applications
Immune to weld fields
Resistant to weld slag
Can be used to detect thread presence
Minimum nut thickness is 4.0 mm (.16")
Maximum blank thickness is
1.6mm (.06")

Note 1

2X M8X 1.0

Note 2

2X M8 JAM NUTS

Note 3

SOLD SEPERATELY

Note 4

SOLD SEPERATELY

Note 5

SENSING AREA

Sensor

Monitor

Cable

Weight

SNS05

SMH36005 (NPN)

SCE13000 2m (6ft)

.019 lbs / 9 gm

SMH37005 (PNP)

SCE13001 2m (6ft) (Angled)

M5 Nut Detector System

Sensor connector:
3-pin (male) 8mm (pico) connector

Operating temperature range:
32°F to 212°F (0°C to 100°C)

Target material:
Ferrous/Non-Ferrous

Technical Data

SEE ENGINEERING ADVANTAGE

Scan with a QR code reader – www.norgren.com/automationsolutions

Tel: 734-429-4989

Dimensions in. (mm)
