Toughened nut sensor sns10, Features, M10 nut detector system

3.15 (80)

.31 (8)

2.20 (55.9)

1.85

(47)

2X .04 (1)

.34 (8.6)

.32 (8.1)

NOTE 5

NOTE 1

NOTE 2

NOTE 3

NOTE 4

.58 (14.7)

Our policy is one of continued research and development. We therefore reserve the right to amend,

without notice, the specifications given in this document.

001 25962 13302SP 12/4/12

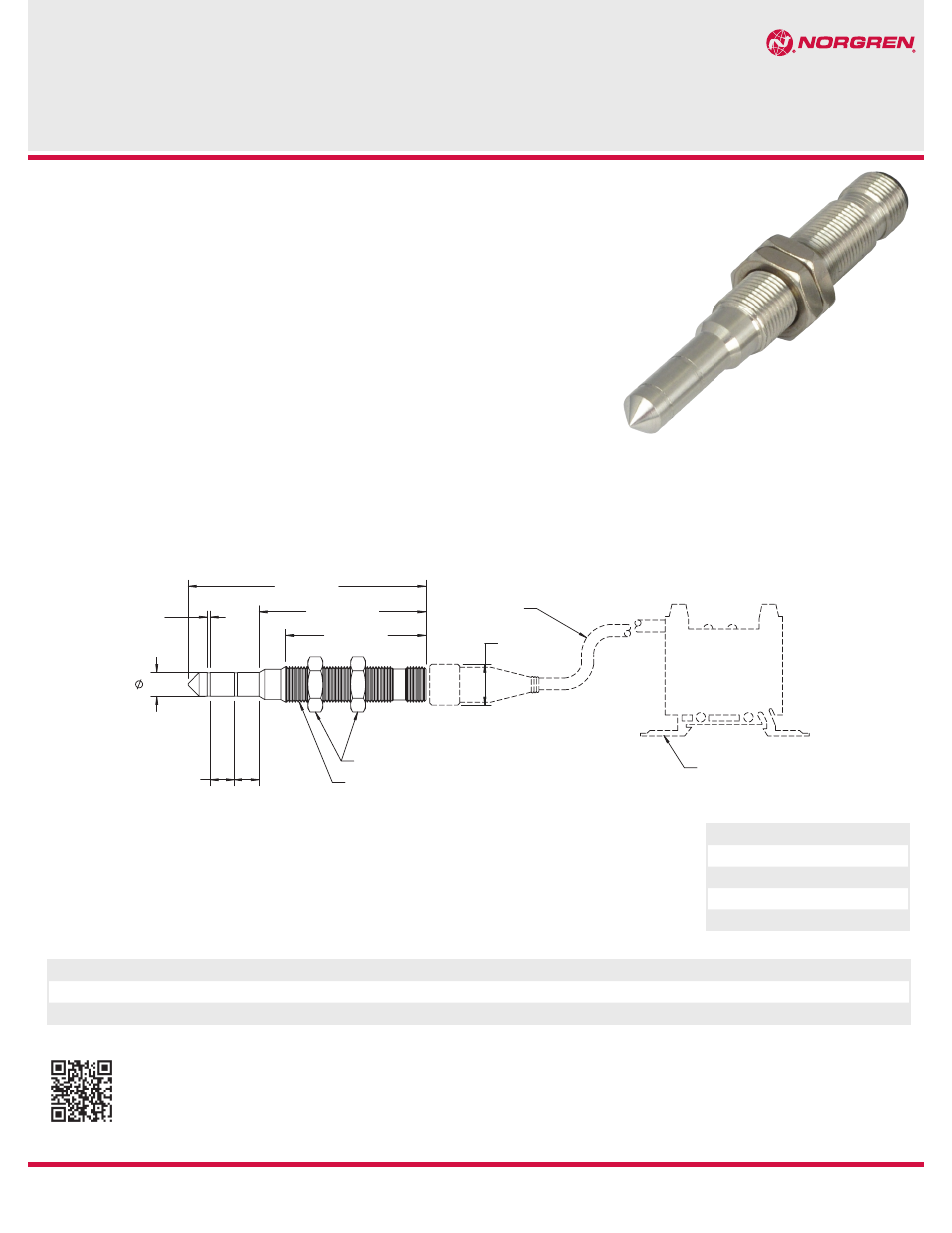

Toughened Nut Sensor

SNS10

Features

For heavy duty applications with
sensor tip radial loads up to 40 lbs.
For use in weld applications
Immune to weld fields
Resistant to weld slag
Can be used to detect thread
presence
Minimum nut thickness is 8.0 mm (.31")
Maximum blank thickness is
2.5mm (.10")

Note 1

2X M12X 1.0

Note 2

2X M12 JAM NUTS

Note 3

SOLD SEPERATELY

Note 4

SOLD SEPERATELY

Note 5

SENSING AREA

Sensor

Monitor

Cable

Weight

SNS10

SMH36010 (NPN)

SCF12060 2m (6ft)

.082 lbs / 37 gm

SMH37010 (PNP)

SCF12160 2m (6ft) (Angled)

M10 Nut Detector System

Sensor connector:
4-pin (male) 12mm (micro)
connector

Operating temperature range:
32°F to 212°F (0°C to 100°C)

Target material:
Ferrous/Non-Ferrous

Technical Data

SEE ENGINEERING ADVANTAGE

Scan with a QR code reader – www.norgren.com/automationsolutions

Tel: 734-429-4989

Dimensions in. (mm)
