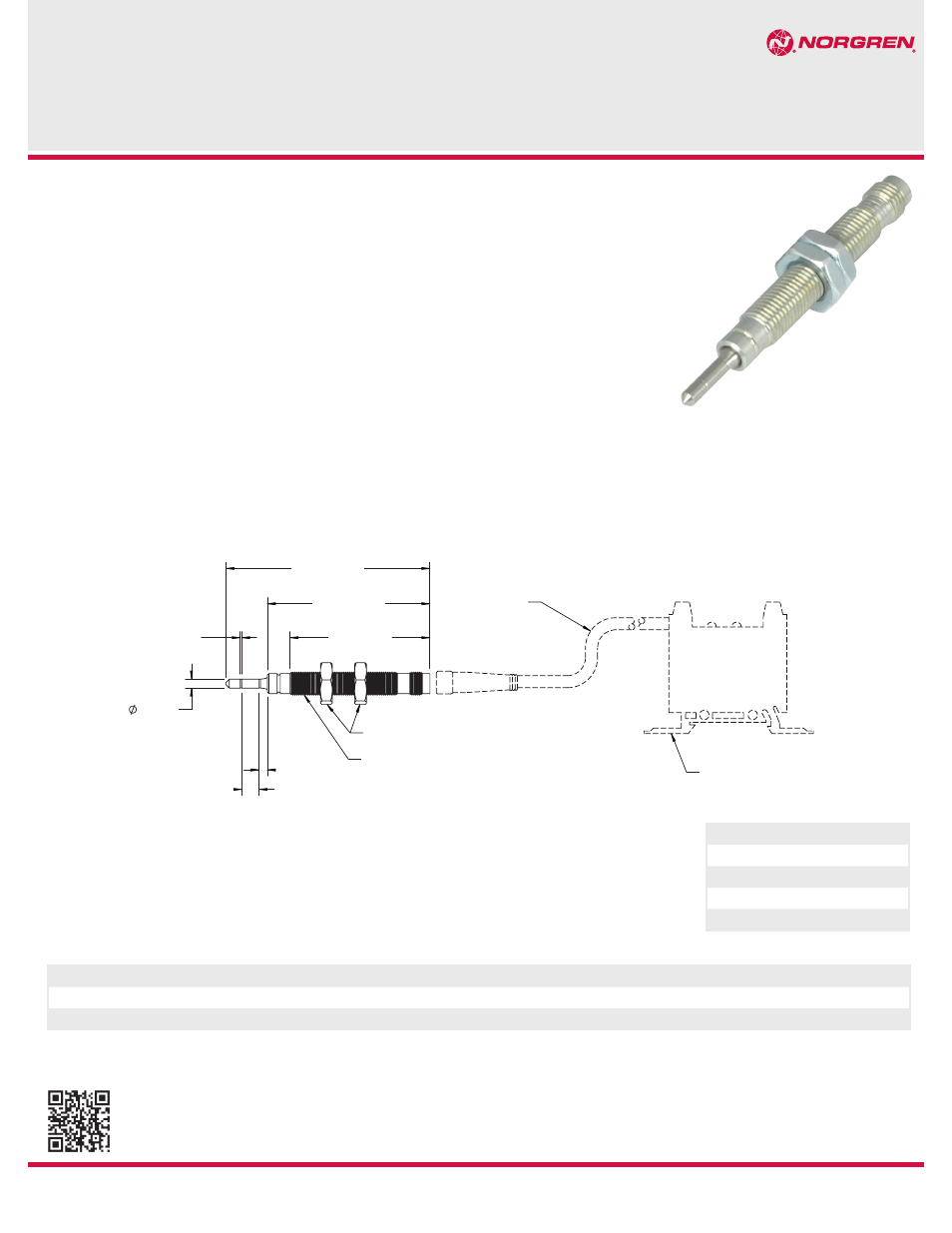

Toughened Nut Sensor

SNS04

Features

For heavy duty applications with
sensor tip radial loads up to 32 lbs.
For use in weld applications
Immune to weld fields
Resistant to weld slag
Can be used to detect thread
presence
Minimum nut thickness is 4.0 mm (.16")
Maximum blank thickness is
1.6mm (.06")

Note 1

2X M8X 1.0

Note 2

2X M8 X 1.0 JAM NUTS

Note 3

SOLD SEPERATELY

Note 4

SOLD SEPERATELY

Note 5

SENSING AREA

Sensor

Monitor

Cable

Weight

SNS04

SMH36004 (NPN)

SCE13000 2m (6ft)

.019 lbs / 9 gm

SMH37004 (PNP)

SCE13001 2m (6ft) (Angled)

M4 Nut Detector System

Sensor connector:
3-pin (male) 8mm (pico) connector

Operating temperature range:
32°F to 212°F (0°C to 100°C)

Target material:
Ferrous/Non-Ferrous

Technical Data

.12 (3)

2.70 (68.6)

2.15 (54.6)

1.85 (47)

2X .02 (0.5)

.23 (5.8)

NOTE 5

.11 (2.8)

NOTE 1

NOTE 2

NOTE 4

NOTE 3

SEE ENGINEERING ADVANTAGE

Scan with a QR code reader – www.norgren.com/automationsolutions

Tel: 734-429-4989

Dimensions in. (mm)
