Norgren SMH3xxxx - Manual

(4 PLCS)
DIA.
NOTE 2
SNS06
SHOWN
NOTE 1
0.79
(20.0)
2.36 (60.0)
0.35 (9.0)
0.71 (18.0)
0.16 (4.0)
2.76 (70.0)
1.97 (50.0)
2.20 (56.0)
Our policy is one of continued research and development. We therefore reserve the right to amend,
without notice, the specifications given in this document.
© Norgren Automation Solutions, LLC 2012
001 25962 13392SP 12/4/12

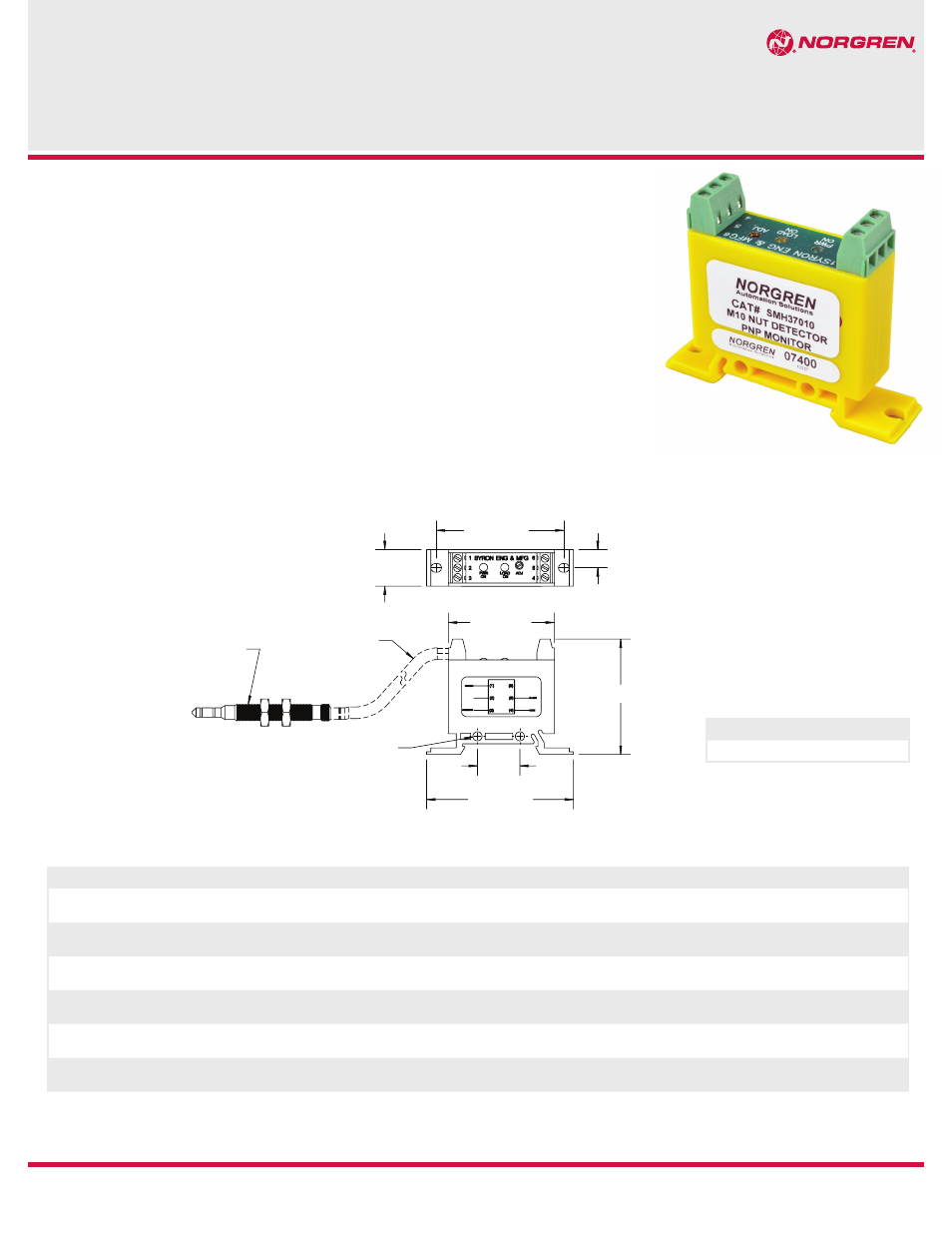

Monitor for Toughened Nut Sensor
SMH3XXXX
Note 1 SOLD SEPERATELY
Note 2 SOLD SEPERATELY
System Sensor Monitor Switch type Cable
M4 Toughened Nut Detector SNS04 SMH36004 (NPN)
SMH37004 (PNP)
Currentsinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M5 Toughened Nut Detector SNS05 SMH36005 (NPN)
SMH37005 (PNP)
Currentsinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M6 Toughened Nut Detector SNS06 SMH36006 (NPN)
SMH37006 (PNP)
Currentsinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M8 Toughened Nut Detector SNS08 SMH36008 (NPN)
SMH37008 (PNP)
Currentsinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M10 Toughened Nut Detector SNS10 SMH36010 (NPN)
SMH37010 (PNP)
Currentsinking
Current sourcing
SCE12060 2m (6ft.)
SCE12160 2m (6ft) (Angled)
M12 Toughened Nut Detector SNS12 SMH36012 (NPN)
SMH37012 (PNP)
Currentsinking
Current sourcing
SCE12060 2m (6ft.)
SCE12160 2m (6ft) (Angled)
Power/sensor connector:
2 X 3-pin terminal connector
Supply voltage range:
10VDC to 30 VDC
Maximum load current:
180mA Operating temperature range:
32°F to 140°F (0°C to +60°C)
Response time:
25ms turn-on, 25ms turn-off
Indicator lights:
GREEN: DC power connect
AMBER: Target detected Target material:
Ferrous/Non-Ferous
Short circuit protection:
Yes
Overload protection:
Yes
Weight:
.091 lbs / 41 gms
Features
LED for on/off status
Interface directly to program-
mable controlers
Technical Data
Dimensions in. (mm)
